MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 21

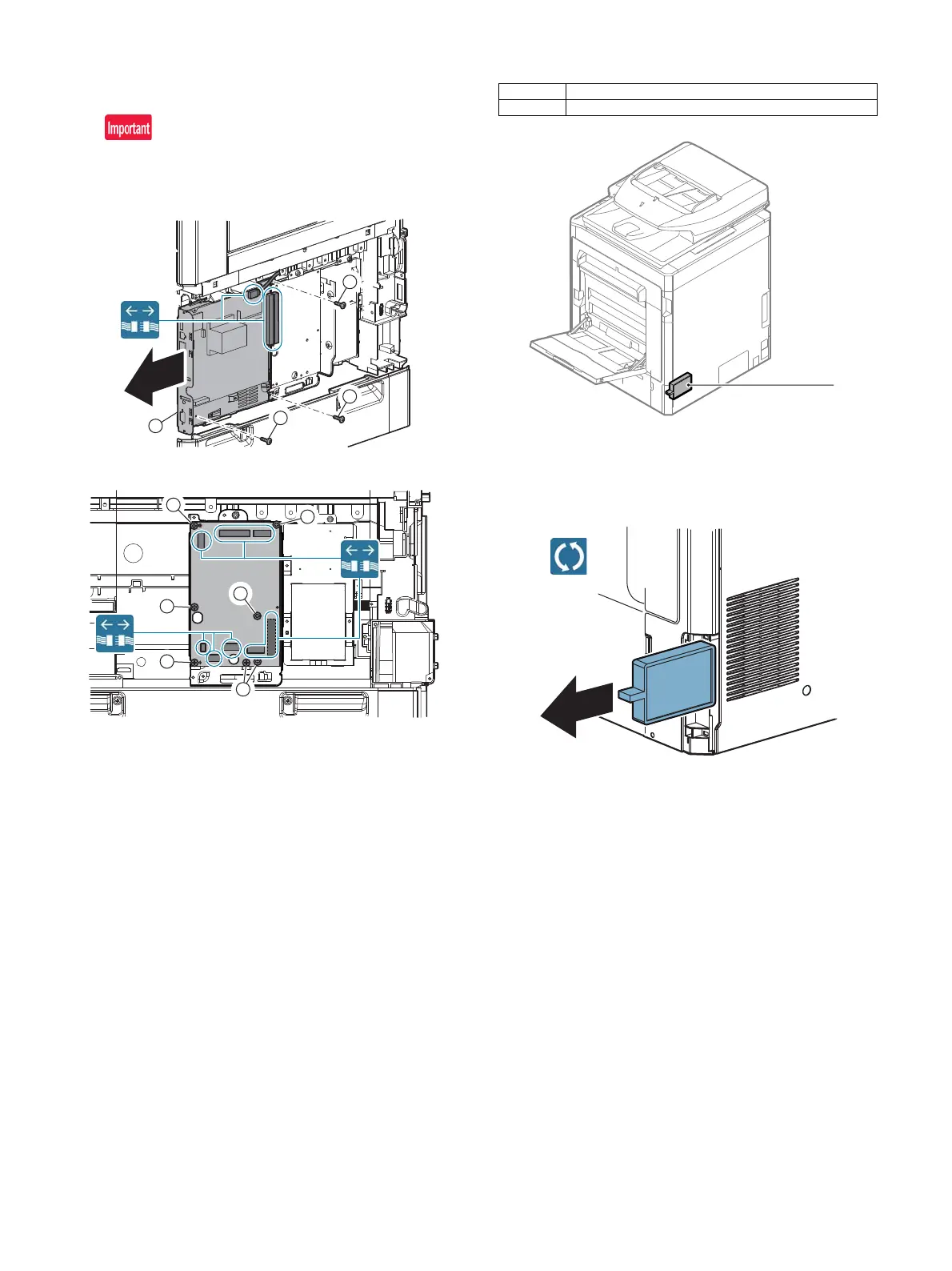

(8) LSU mother PWB
1) Remove the left cabinet, and the shield plate.
2) Remove the MFP control PWB unit.
Since the MFP control PWB and the LSU mother PWB are
connected together (board to board), use enough care when
removing and attaching them.
3) Remove the LSU mother PWB.
Q. Filter section
(1) Ozone filter
1) Remove the ozone filter cover.
2) Remove the ozone filter.




1
1
1
1
1
1
No. Name
1 Ozone filter
1
