Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 35

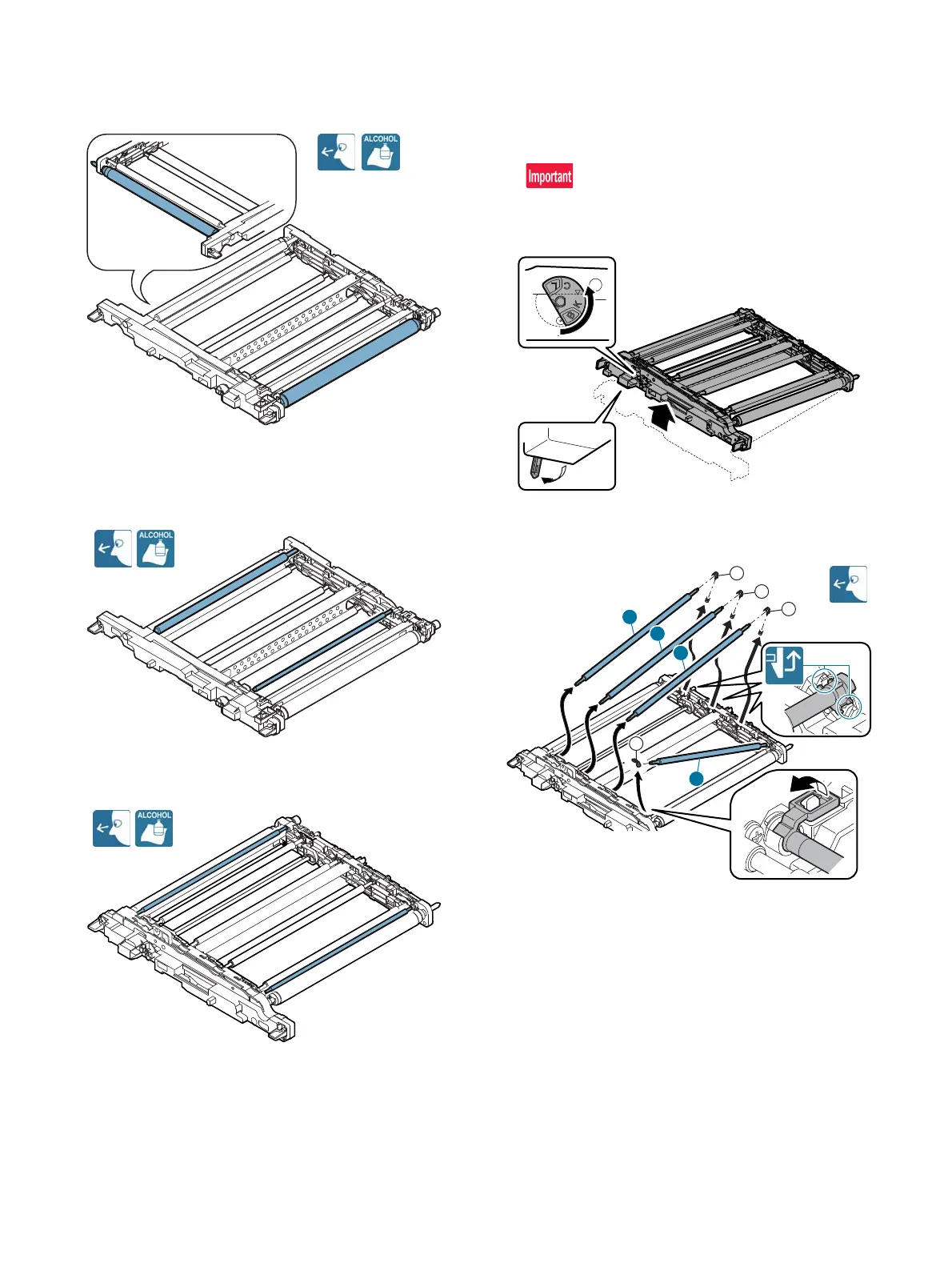

c. Primary transfer belt drive roller, Primary transfer belt
follower roller
1) Clean the primary transfer belt drive roller, and the primary
transfer belt follower roller.
d. Primary transfer belt tension roller, Registration backup
roller
1) Clean the primary transfer belt tension roller, registration
backup roller.
e. Y auxiliary roller, PTC backup roller
1) Clean the Y auxiliary roller, and the PTC backup roller.
f. Primary transfer roller
1) With the front section of the primary transfer unit slightly lifted,
rotate the transfer lock cam knob counterclockwise so that it is
at the angle shown in the figure.
With the above procedure, the primary transfer roller may be
removed.
Be sure to slightly lift the front section of the primary transfer
unit when rotating the transfer lock cam knob. If not, a stress is
applied to the standard reflection plate lever, causing a trouble.
2) Release the lock of the bearing, and remove the bearing and
the primary transfer roller.
3) With the front section of the primary transfer unit slightly lifted,
return the transfer lock cam knob to the neutral angle.
2
2
2
2
1
1
1
1

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
