Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 34

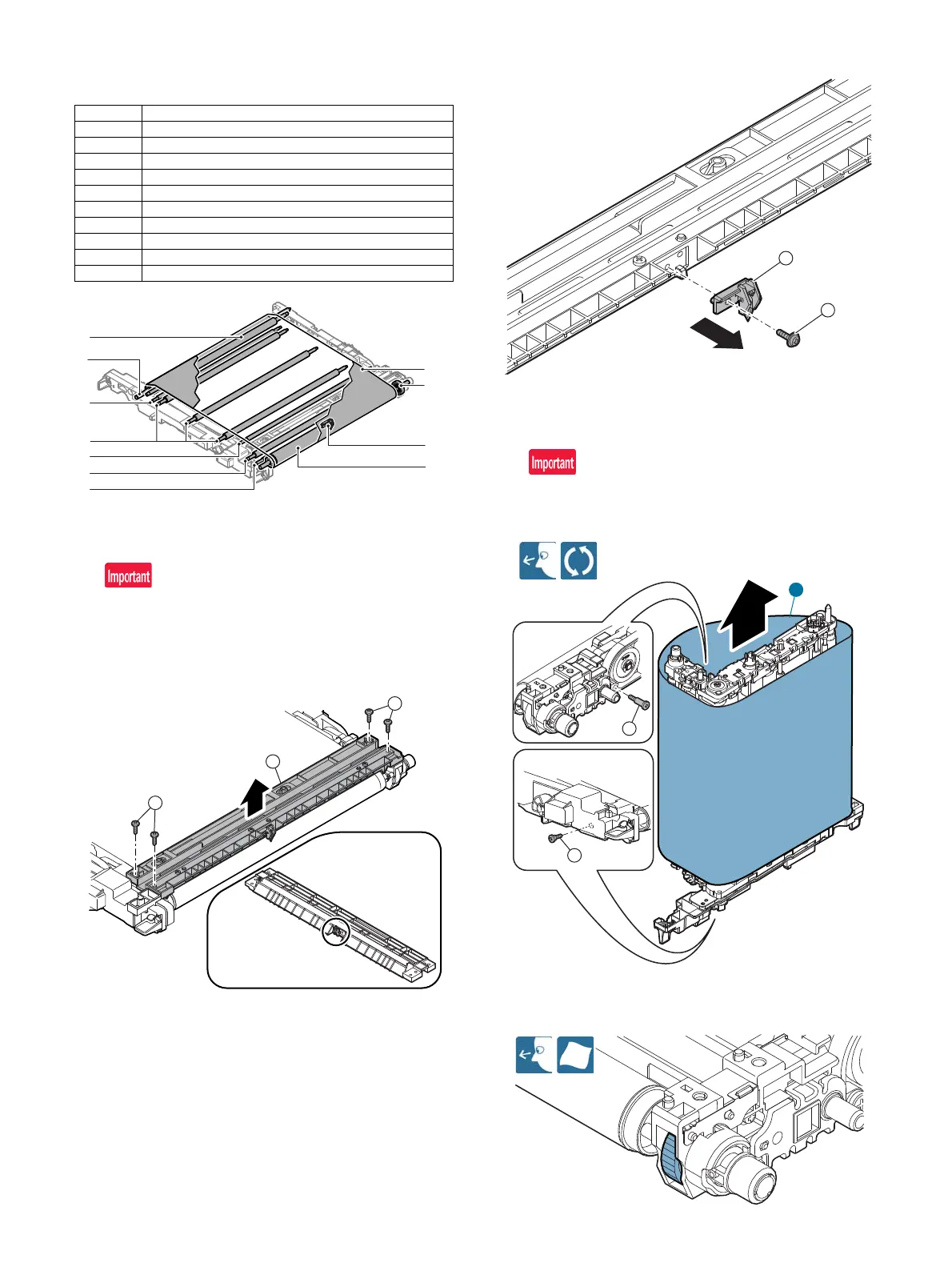

F. Transfer section
(1) Primary transfer unit
a. Separation pawl, Primary transfer belt
1) Remove the paper guide.
After removing the paper guide, place it so that the separation
pawl faces upward in order to protect the separation pawl tip
from damages.
In addition, when attaching the paper guide, be careful not to
damage the transfer belt by the separation pawl.
2) Remove the separation pawl from the paper guide.
3) Remove the primary transfer unit.
4) Fold the primary transfer unit, and remove the primary transfer
belt.
The length of the mounting screw on the front side differs from
that on the rear side. The screw on the rear side is longer than
that on the front side.
b. Secondary transfer drive transmission gear
1) Clean the secondary transfer driver transmission gear.
No. Name
1 Separation pawl
2 Primary transfer belt
3 Secondary transfer drive transmission gear
4 Primary transfer belt drive roller
5 Primary transfer belt follower roller
6 Primary transfer belt tension roller
7 Registration backup roller
8 Y auxiliary roller
9 PTC backup roller
10 Primary transfer roller
3
5
6
7
9
8
10
10
2
1
4
2
1
1
2
1
2
1
1

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
