Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 15

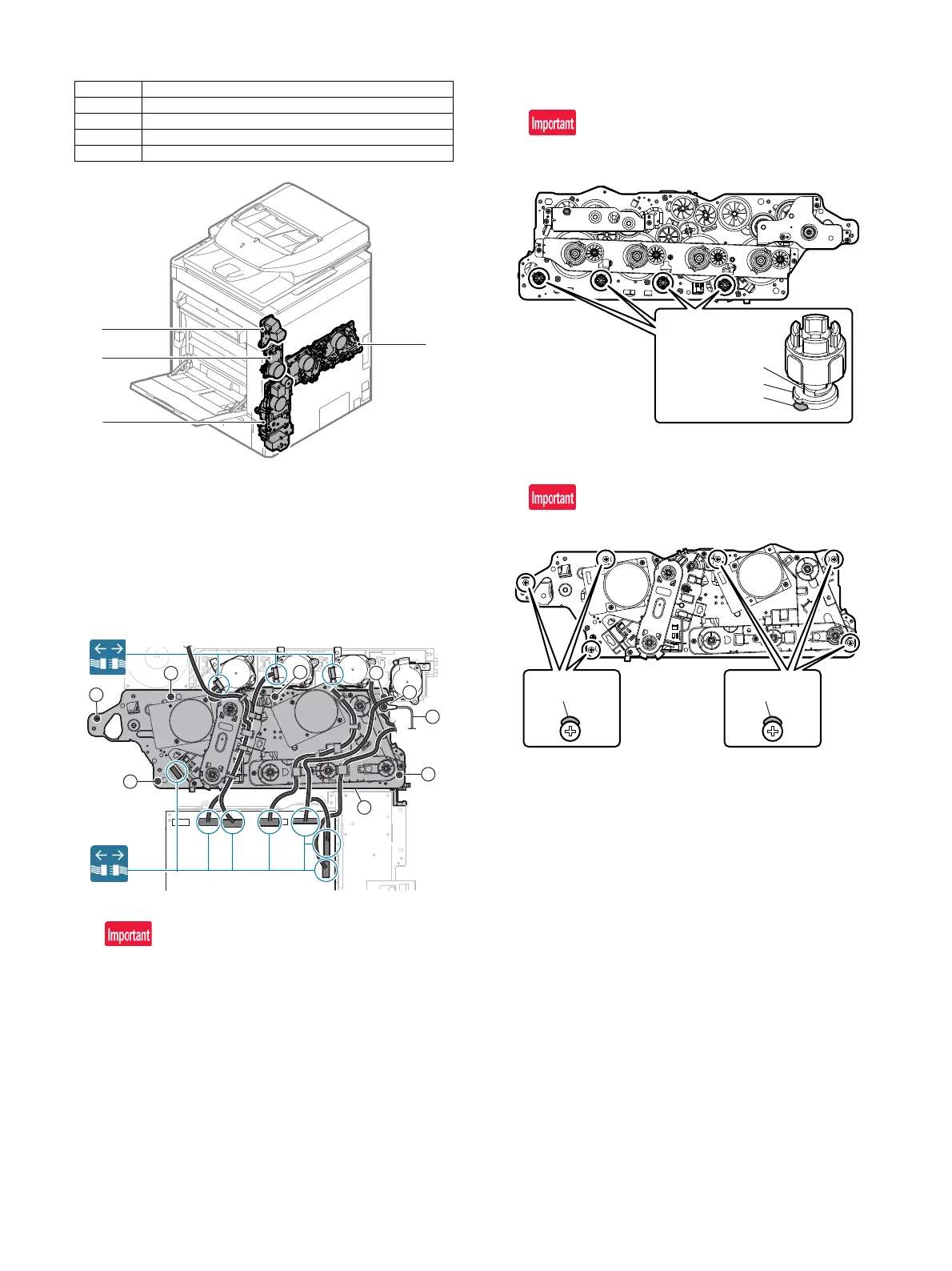

M. Drive section
(1) Main drive unit
1) Remove the waste toner box.
2) Remove the developing unit.
3) Remove the OPC drum unit.
4) Remove the primary transfer unit.
5) Remove the rear cabinet.
6) Remove the main drive unit.
When the drive section is disassembled, apply screw lock to
the following sections:
Front side
Apply screw lock (0.1g: about two rice grains) between the
bearing and the drive frame. (4 positions)
Be careful not to apply screw lock between the bearing and
each DV drive shaft.
Rear side
Apply screw lock (0.04g: about one rice grain). (6 positions)
Be careful not to apply screw lock to the head of the screw.
No. Name
1 Main drive unit
2 Transport drive unit
3 Fusing drive unit
4 Paper exit drive unit
2
1
4
3
3
3
3
3
1
2
4
3
3
DV drive shaft
Apply screw lock
to this position.
Bearing
Apply screw lock
to this position.
Apply screw lock
to this position.

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
