Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 26

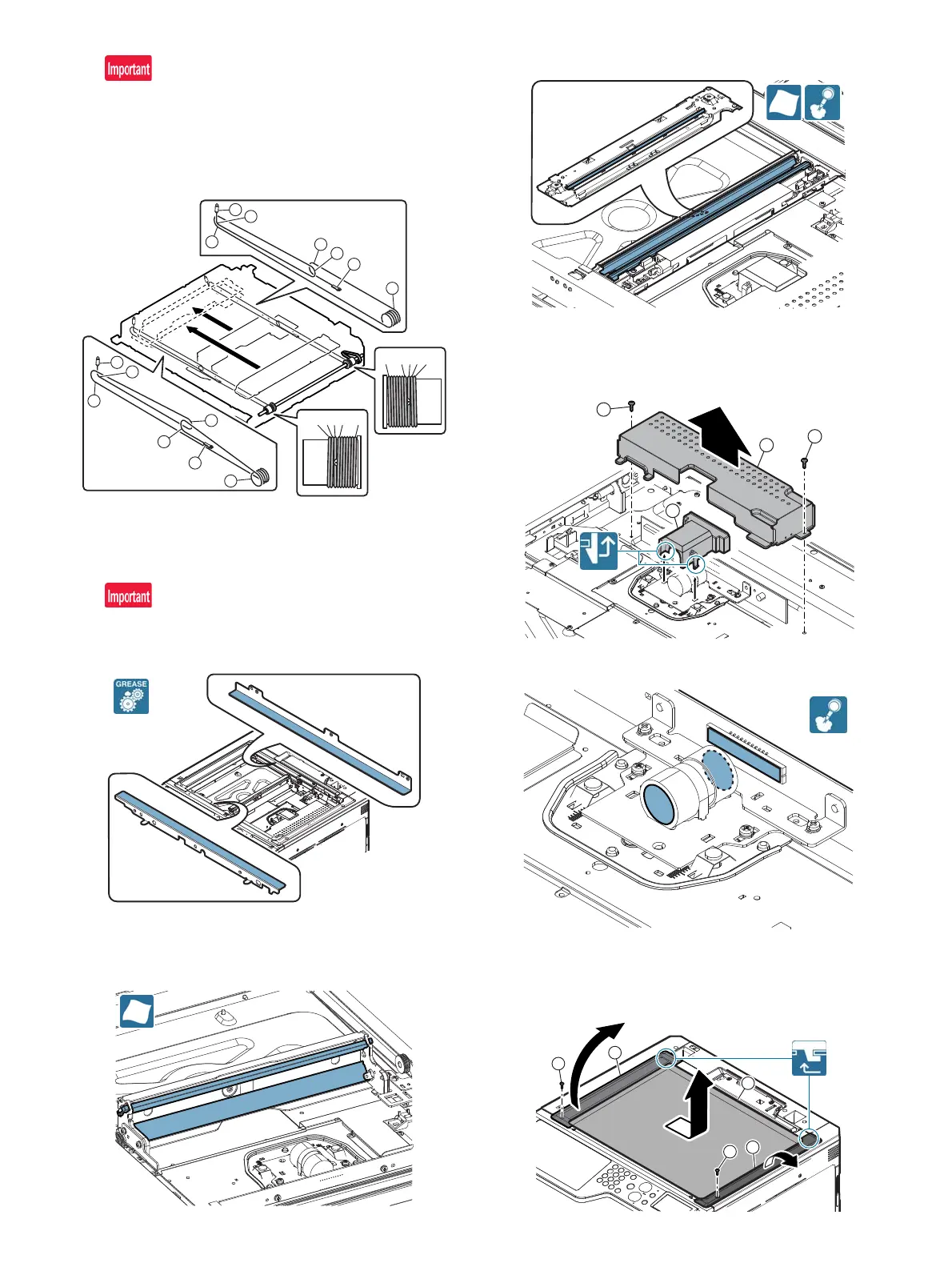

Wind the drive wire in the sequence of 1 to 7 as shown in the
figure below and fix it.
When winding the drive wire around the pulley, shift the mirror
unit to the vicinity of the home position, and wind 7 turns as
shown in the figure, and fix the 8th turn with a screw. Then
wind two turns furthermore around the pulley.
b. Rails
1) Remove the table glass.
2) Grease each rail.
Be careful not to allow grease to come in contact with drive
wires.
If grease contacts drive wires, clean wires thoroughly.
c. Mirror, Reflector, Scanner lamp
1) Remove the table glass.
2) Clean the No. 2 mirror, and the No. 3 mirror.
3) Clean the reflector, the scanner lamp, and the No. 2 mirror.
d. Lens, CCD
1) Remove the table glass.
2) Remove the dark box, and the cover.
3) Clean the lens, and the CCD.
e. Table glass, SPF glass
1) Remove the glass holder. and the table glass. Remove the
table glass, and the SPF glass.
8910 7 1
8 9 1071
2
1
2
6
5
7
4
3
4
3
5
6
7
1
1
2
3
1
1
4
5
2
3

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
