MX-3114N MAINTENANCE 9 – 34
26 cpm/31 cpm machine
Unit name
Parts work
sequence
Part name
When
calling
200
K
300
K
400
K
600
K
800
K
900
K
100
0 K
1200
K
Remark

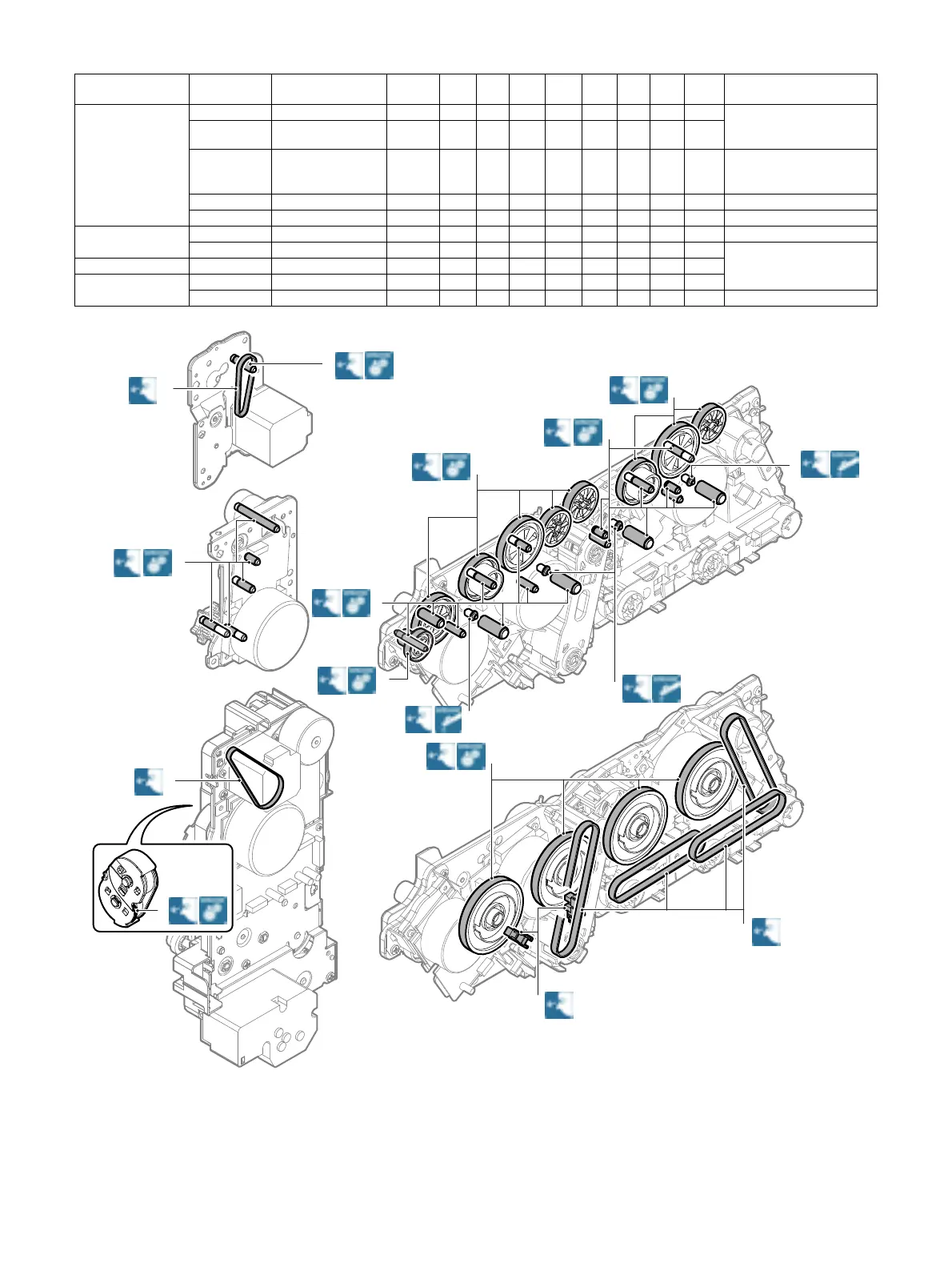

Main drive unit
Belt drive unit
1 Gears (grease) ✕✕– ✕✕✕– ✕✕Apply to the specified
position when checking.
FLOIL G-313S
2 Shafts (grease) ✕✕– ✕✕✕– ✕✕
3 Shaft earth sections
(conduction grease)
✕✕– ✕✕✕– ✕✕Apply to the specified
position when checking.
FLOIL GE-676
4Belts ✕✕– ✕✕✕– ✕✕
5Sensors ✕✕– ✕✕✕– ✕✕
Transport drive unit 6 Belts ✕✕– ✕✕✕– ✕✕
7 Connection arm ✕✕– ✕✕✕– ✕✕Apply to the specified
position when checking.
HANARL FL-955R
Fusing drive unit 8 Shafts (grease) ✕✕– ✕✕✕– ✕✕
Paper exit drive unit 9 Shafts (grease) ✕✕– ✕✕✕– ✕✕
10 Belts ✕✕– ✕✕✕– ✕✕
1
1
2
3
1
2
5
3
7
8
3
4
10
6
9
1
