Sharp MX-2314N Service Manual

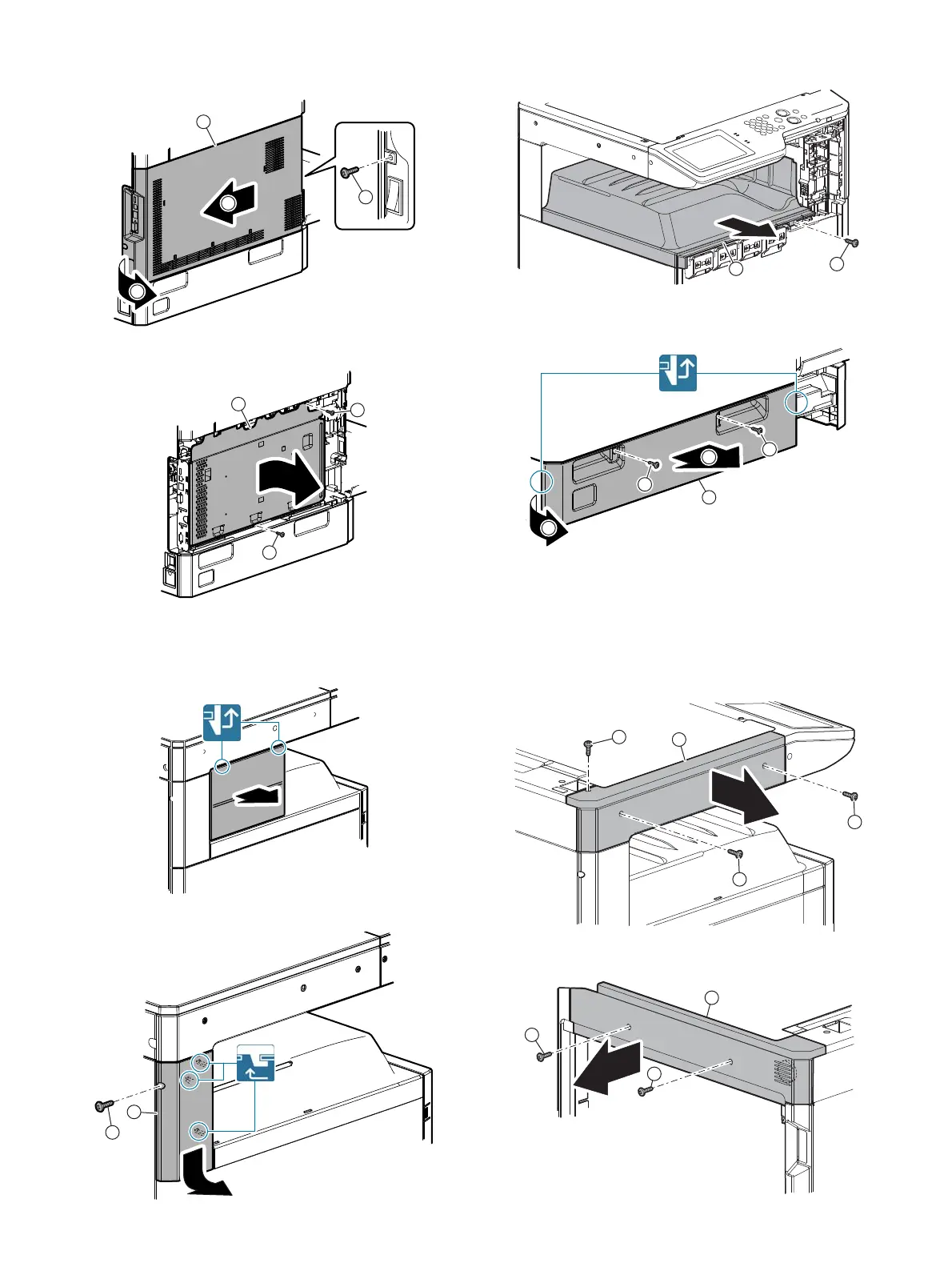

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 2
(4) Rear cabinet, Shield plate
1) Remove the left cabinet.
2) Remove the shield plate.
(5) Paper exit cover, Left cabinet upper, Paper exit tray
1) Remove the front cabinet upper.
2) Remove the paper exit cover.
3) Remove the left cabinet upper.
4) Remove the paper exit tray.
(6) Left cabinet lower
1) Remove the left cabinet lower.
(7) Upper cabinet left, Upper cabinet right
1) Remove the rear cabinet upper.
2) Remove the RSPF unit.
3) Remove the table glass and the SPF glass.
4) Remove the paper exit cover.
5) Remove the upper cabinet left.
6) Remove the upper cabinet right.
2
1
1
2
2
1
1
1
2


2
1
1
1
2
1
1
1
2
1
1
2

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
