Sharp MX-2314N Service Manual

MX-3114N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 9

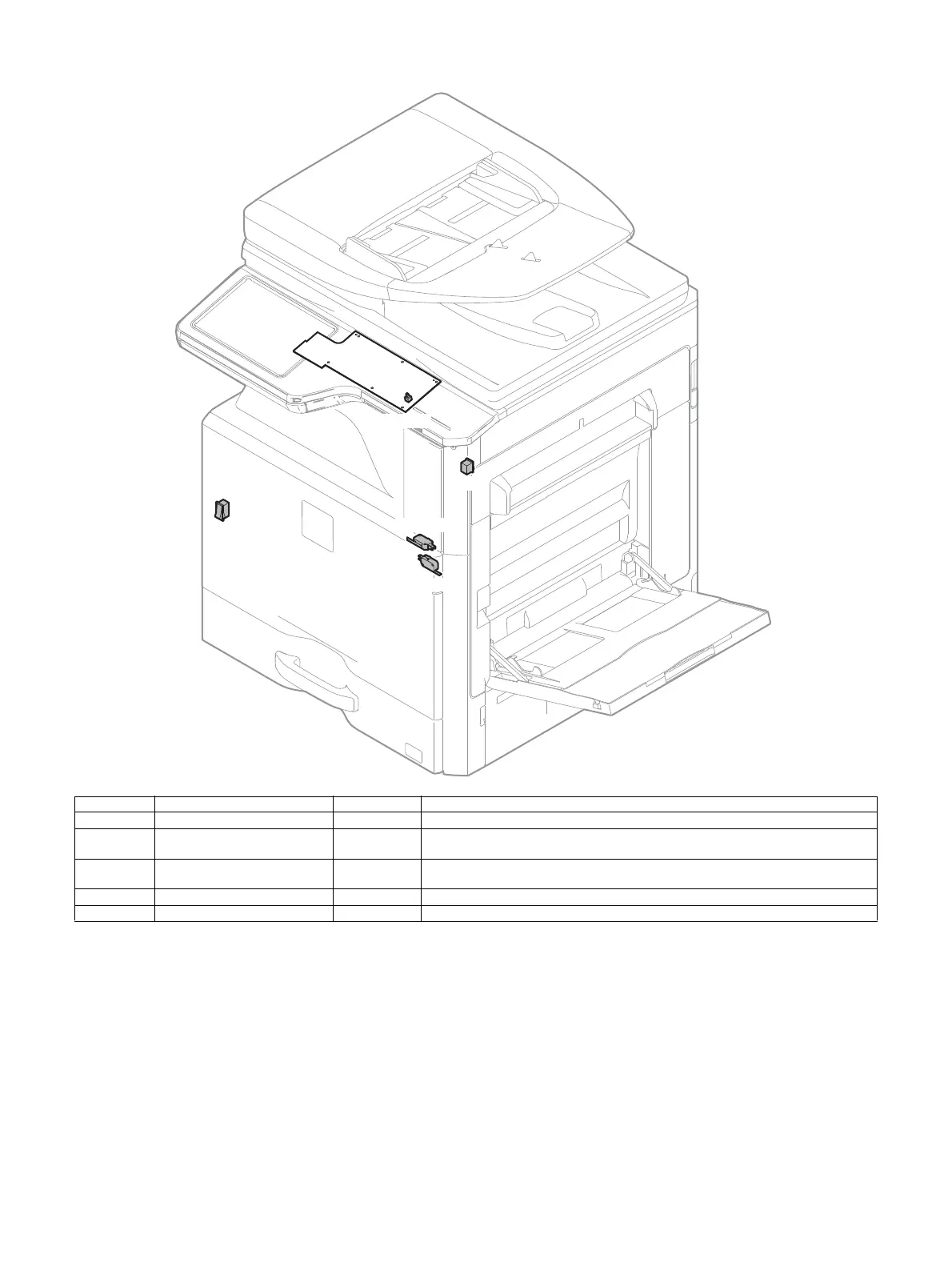

6. Switches
Signal name Name Type Function/Operation
DHSW Dehumidifier heater switch Seesaw switch Turns ON/OFF the power line of the dehumidifier heater.
DSW_F Front door open/close switch Micro switch Detects open/close of the front door. Detects ON/OFF of the power line of the fusing unit,
the motors, and the LSU laser.
DSW_R Right transport unit (right door)
open/close switch
Micro switch Detects open/close of the right paper transport section (right door). Detects ON/OFF of the
power line of the fusing unit, the motors, and the LSU laser.
MSW Main power switch Seesaw switch Turns ON/OFF the main power.
PWRSW Operation panel power switch Push switch Turns ON/OFF the power on the secondary side.
$37?2
$37?&
$(37
07237
-37

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
