Sharp MX-2314N Service Manual

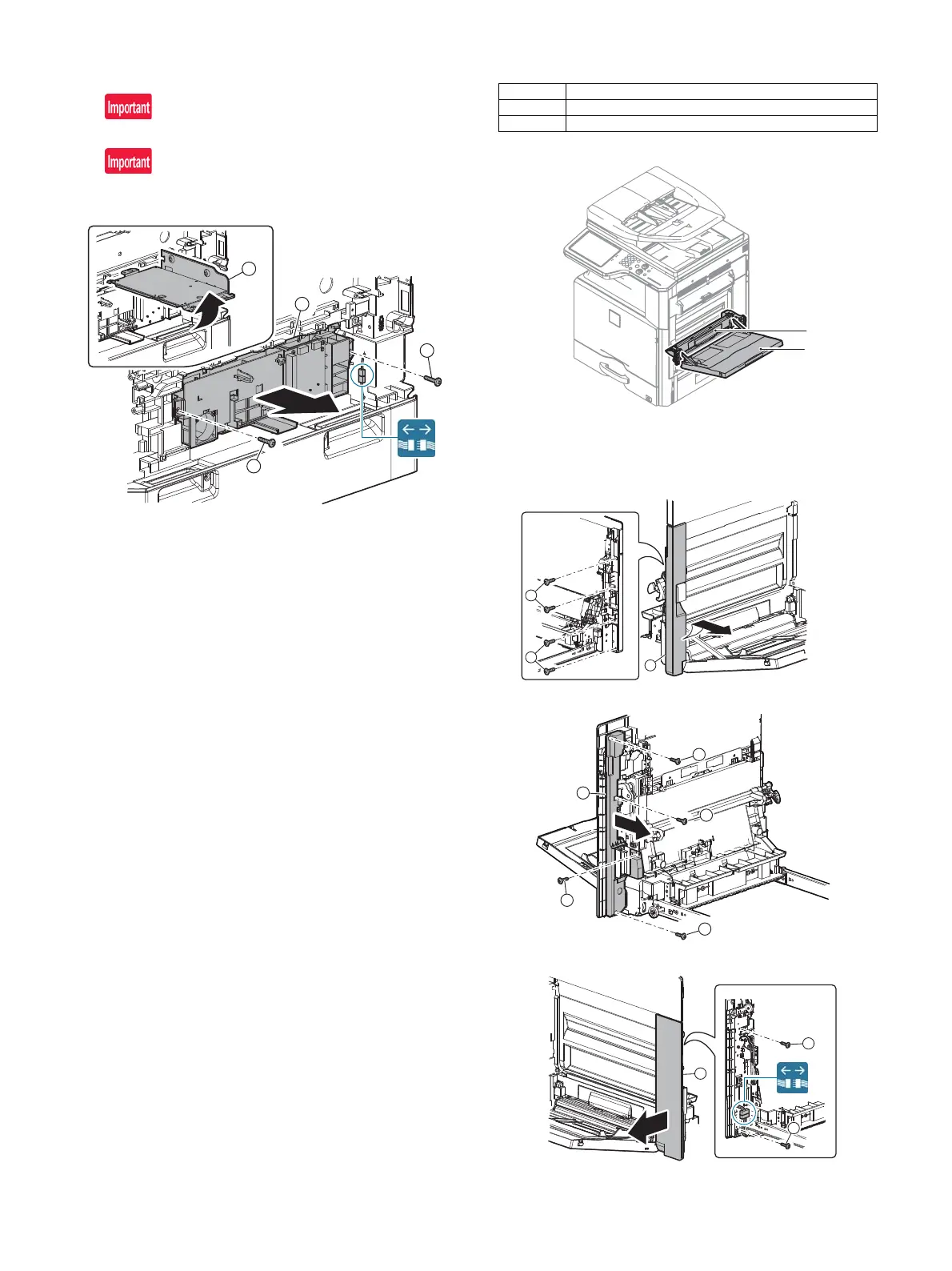

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 10
4) Remove the waste toner box.
5) Lift the LSU mother PWB unit, and remove the LSU.
Do not touch the LSU PWB and the upper cover glass section.
Put the LSU on a flat surface. (Do not turn it over.)
J. Manual paper feed section
(1) Manual paper feed tray
a. 23cpm machine
1) Open the right door, and remove the cover.
2) Remove the connector cover.
3) Remove the cover.
1
1
2
3
No. Name
1 Manual paper feed tray
2 Manual paper feed unit




1
1
2
1
1
1
1
2
2
1
1

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
