MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 49

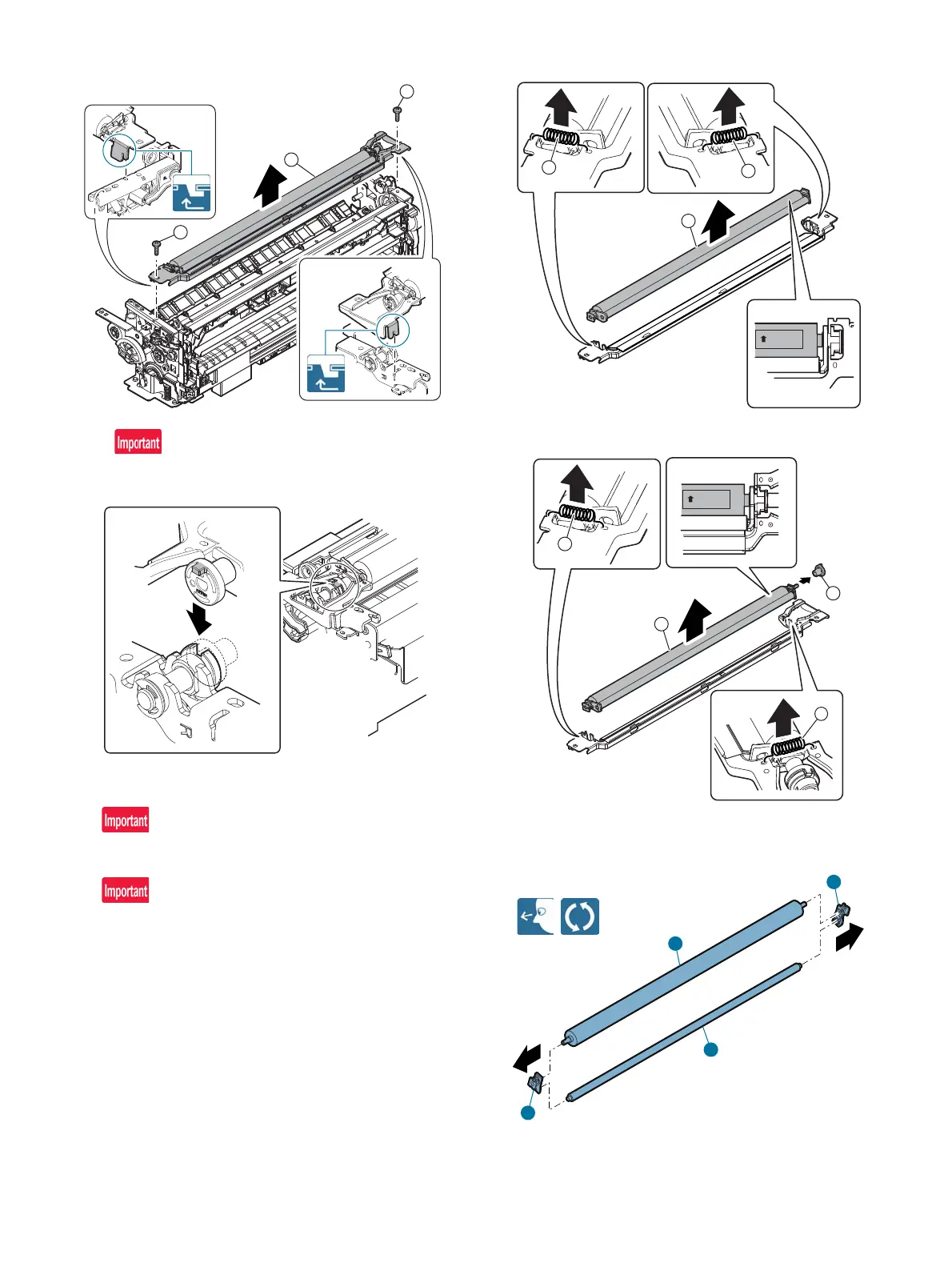

• Drive-type oil roller
When assembling the drive-type oil roller, fit the concave
section of the shaft with the convex pawl of the coupling.
2) Remove the spring, and remove the oil applying roller unit.
Place the lower stay so that the oil applying roller unit can be
removed upward.
When attaching the oil applying roller unit, check to confirm
that "R" mark printed on the oil applying roller comes on the
rear side.
• Follower-type oil roller
• Drive-type oil roller
3) Remove the CL roller bearing from the oil applying roller and
the backup roller.
1
1
2
2
R
1
1
3
2
1
1
R
1
1
2
3
