Sharp MX-2314N Service Manual

MX-3114N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 14

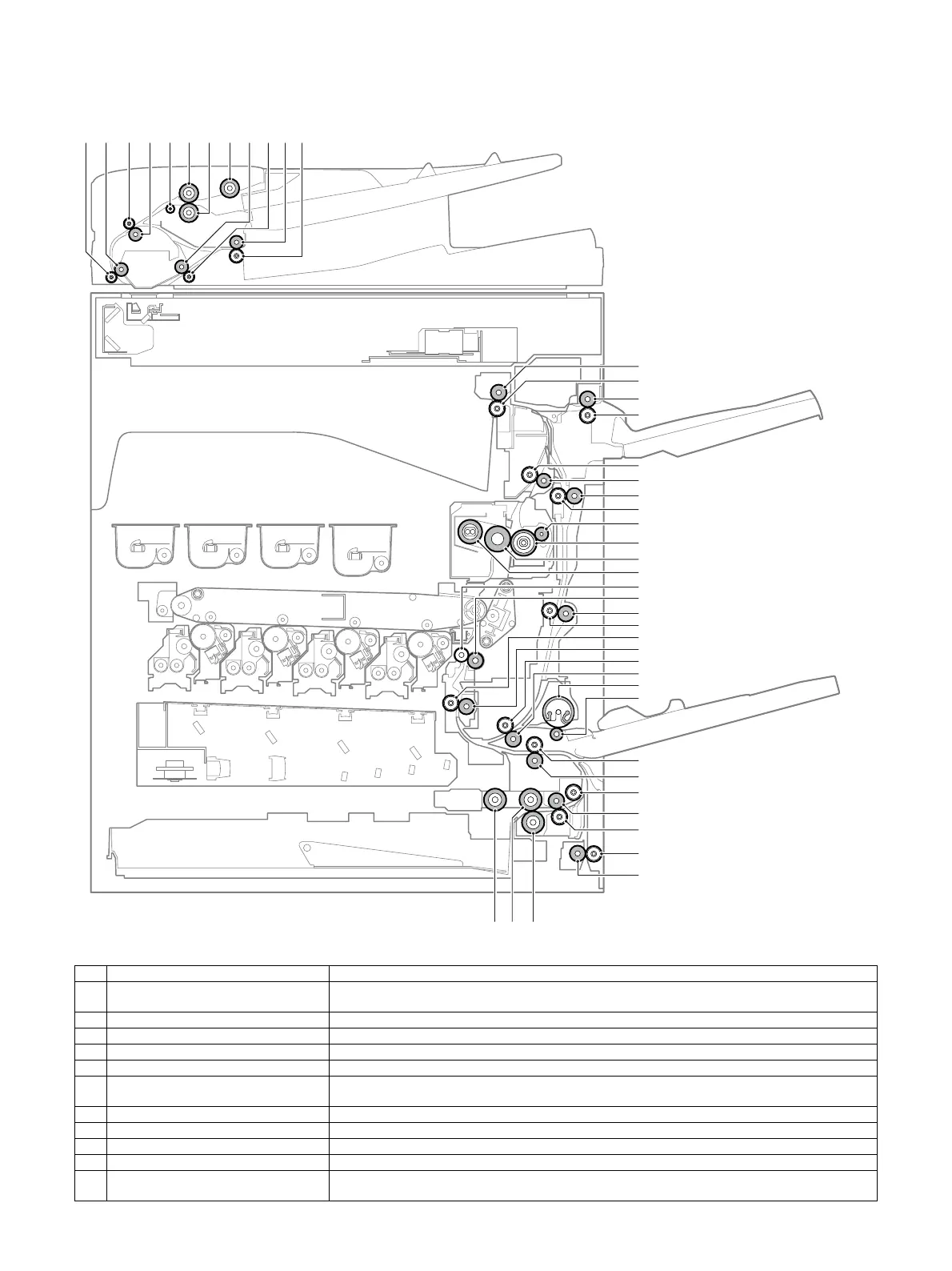

9. Rollers
A. 23cpm machine
No. Name Function/Operation
1 Transport roller 1 (Idle) Apply a pressure to paper and the transport roller to provide the transport power of the transport roller to
paper.
2 Transport roller 1 (Drive) Transports paper fed from the paper feed desk tray to the transport roller 4.
3 Paper pickup roller (No. 1 paper feed tray) Feeds paper to the paper feed roller.
4 Separation roller (No. 1 paper feed tray) Separates paper to prevent double-feeding.
5 Paper feed roller (No. 1 paper feed tray) Feeds paper to the paper transport section.
6 Transport roller 2 (Idle) Apply a pressure to paper and the transport roller to provide the transport power of the transport roller to
paper.
7 Transport roller 2 (Drive) Transports paper fed from the paper feed tray 1 to the transport roller 3.
8 Transport roller 3 Transports paper from the transport roller 2 to the transport roller 4.
9 Paper feed roller (Manual paper feed tray) Feeds paper to the paper transport section.
10 Separation roller (Manual paper feed tray) Separates paper to prevent double-feeding.
11 Transport roller 4 (Idle) Apply a pressure to paper and the transport roller to provide the transport power of the transport roller to
paper.
3839
1
8
22
31
20
17
27
28
2
10
14
13
9
15
16
21
24
23
7
12
30
19
32
26
25
40 37 35 44 43
18
29
11
6
36 34 33 42 41
4
35

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
