Sharp MX-2314N Service Manual

MX-3114N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 18

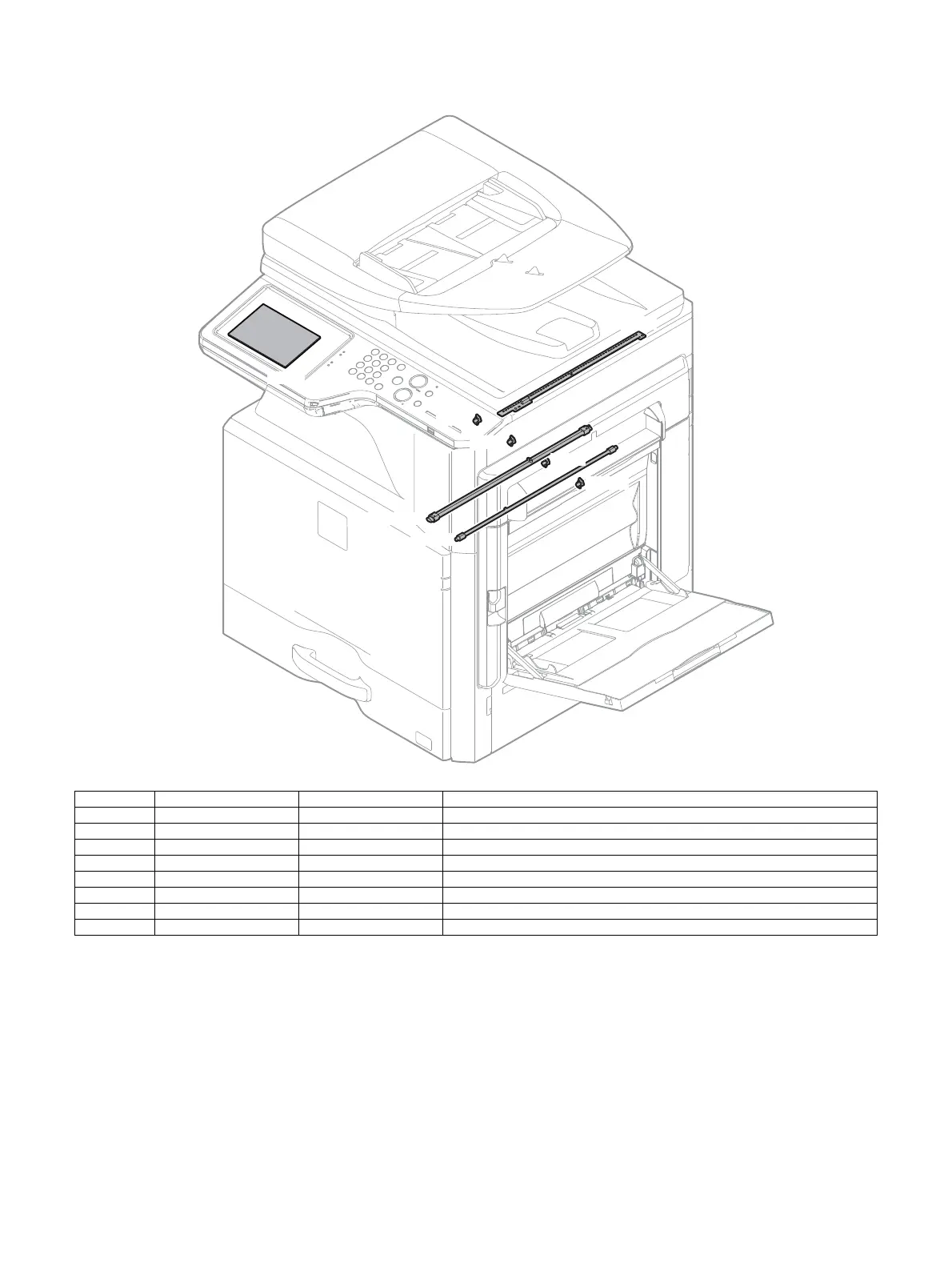

10. Lamps
Signal name Name Type Function/Operation
CCFT LCD backlight LED LCD backlight
CL_ON Scanner lamp LED Radiates light onto a document for the CCD to scan the document image.
DL_BK Discharge lamp (K) LED Discharges electric charges on the OPC drum (K).
DL_C Discharge lamp (C) LED Discharges electric charges on the OPC drum (C).
DL_M Discharge lamp (M) LED Discharges electric charges on the OPC drum (M).
DL_Y Discharge lamp (Y) LED Discharges electric charges on the OPC drum (Y).
HL_LM Heater lamp (HL_LM) Halogen lamp Heats the fusing roller (B).
HL_UM/US Heater lamp (HL_UM/US) Halogen lamp Heats the fusing roller (F1) and the fusing belt.
#,?/.
##&4
$,?9
$,?#
(,?,-
(,?5-53
$,?-
$,?"+

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
