MX-3114N OPERATIONAL DESCRIPTIONS 13 – 57
14) Scanning start (Second sheet)
15) After passing the scanning section, the reverse follower roller
is pressed.
16) After discharge (First sheet), the reverse follower roller pres-
sure is released.

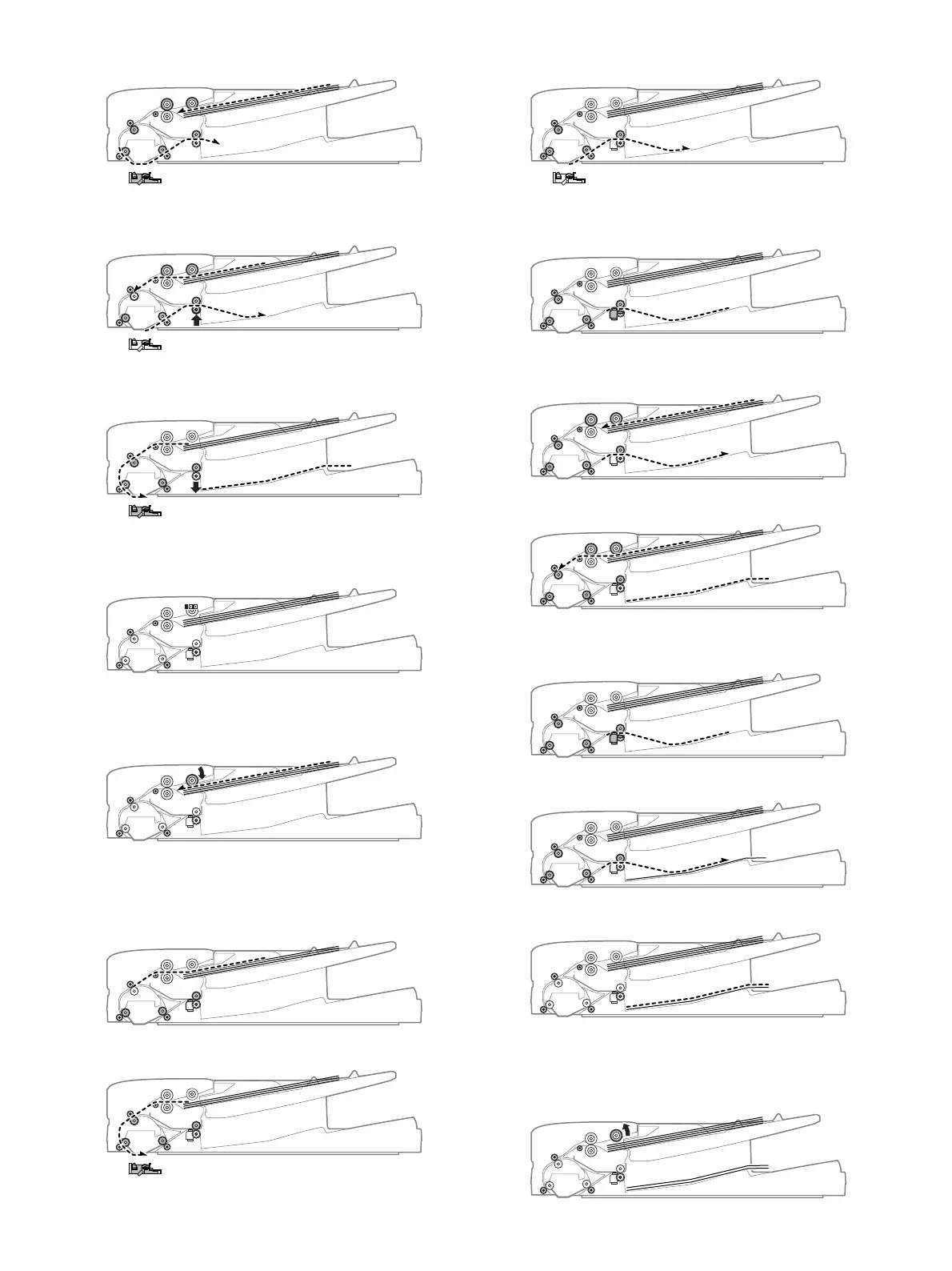

d. Stamp operation
1) Document set (Document empty sensor ON)
2) Paper feed start (1st sheet)
Pick-up roller descending (The paper feed motor is booted.)
(The transport motor is booted simultaneously.)
3) Registration operation (1st sheet)
(Registration clutch ON)
(When a certain time passes after turning ON the registration
clutch, the paper feed motor is turned OFF.)
4) Scanning start (1st sheet)
5) Scanning complete (1st sheet)
6) Stop at the stamp position/Stamp operation (1st sheet)
(Stamp solenoid ON)
7) Paper exit start (1st sheet)/Preliminary paper feed start (2nd
sheet)
8) Paper exit complete (1st sheet)
9) Stop at the stamp position/Stamp operation (2nd sheet)
(Stamp solenoid ON)
10) Paper exit start (2nd sheet)
11) Paper exit complete (2nd sheet)
12) Pick-up roller lifting up
(After completion of a job, the paper feed motor is rotated
reversely at a low speed for a certain time to lift the pickup
roller.)
