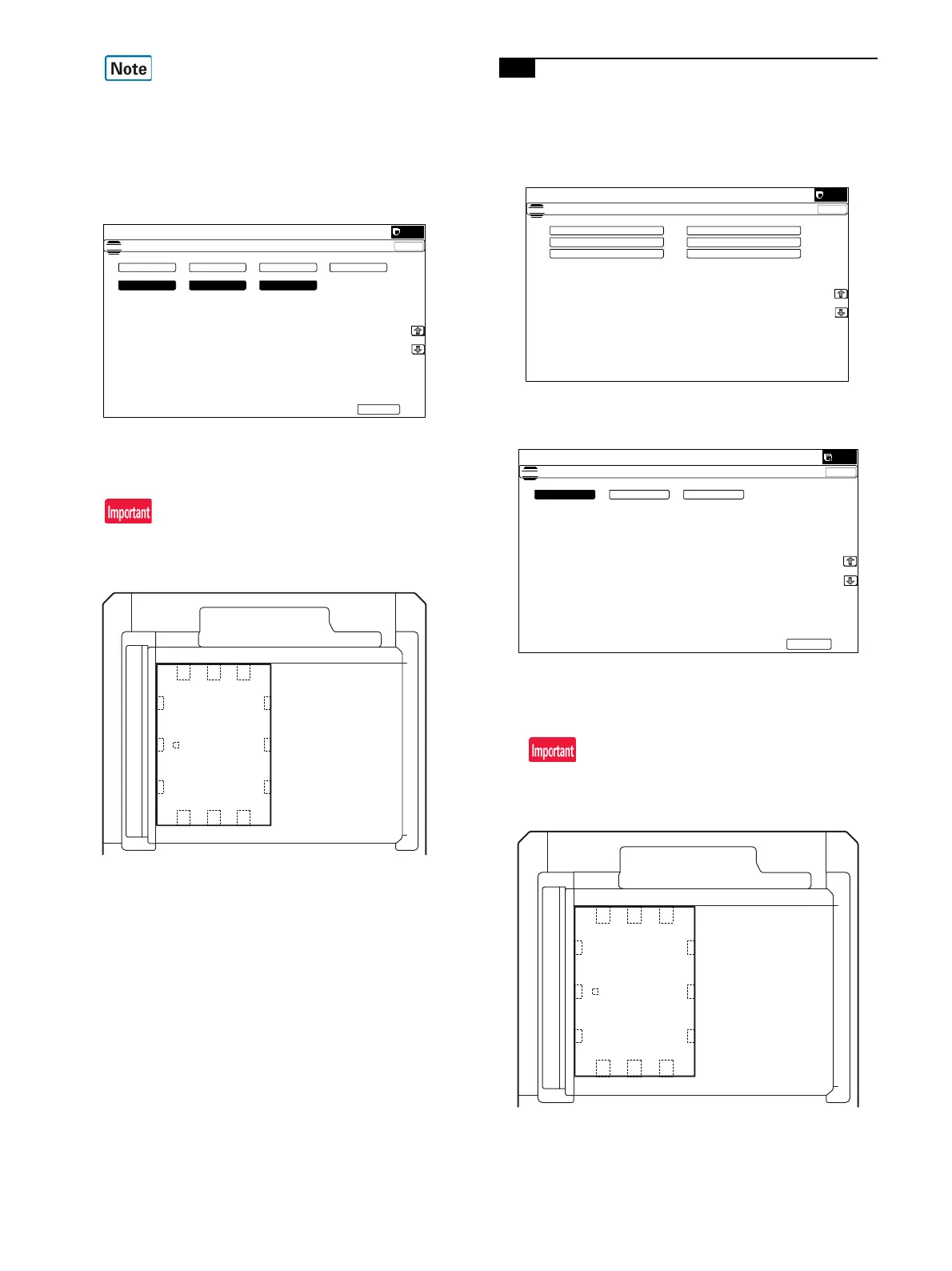

MX-3114N ADJUSTMENTS AND SETTINGS 5 – 11
By pressing [LEAD] or [OFFSET] key, the following items can
be executed individually.
* [LEAD]: Print image lead edge image position adjustment
* [OFFSET]: Print image off-center adjustment
When [ALL] is selected, both of the above two items are
executed simultaneously.
4) Select a paper feed tray to be adjusted.
5) Press [EXECUTE] key.
The adjustment pattern is printed out.
6) Set the adjustment pattern on the document table.
Fit the adjustment pattern correctly with the document guide.
In this case, put 5 sheets of white paper on the printed adjust-
ment pattern.
7) Press [EXECUTE] key.
The following item is automatically adjustment.
* Print image lead edge image position adjustment
* Print image off-center adjustment
8) Press [OK] key.
The adjustment result becomes valid.
Perform procedures 4) to 7) for each paper feed tray.
4-C Copy mode image lead edge position,
image loss, void area, image off-center, sub
scanning direction image magnification
ratio automatic adjustment (Scanner)
(Document table mode)
1) Enter the SIM50-28 mode.
2) Select [OC ADJ] with the key.
3) Select the paper feed tray with paper in it with the key.
(Any paper size will do.)
4) Press [EXECUTE] key.
The adjustment pattern is printed out.
5) Set the adjustment pattern on the document table.
Fit the adjustment pattern correctly with the document guide.
In this case, put 5 sheets of white paper on the printed adjust-
ment pattern.
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(
(;(&87(
0)7 &6 $'8&6
&6 &6 /&&
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(
2&ǂ$'- %.0$*ǂ$'-
63)ǂ$'- 6(78335,17ǂ$'-
5(68/7 '$7$
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(
(;(&87(
0)7 &6 &6
