Chapter 5: Assembly and Disassembly of Parts
SPD-M20A Service Manual
16

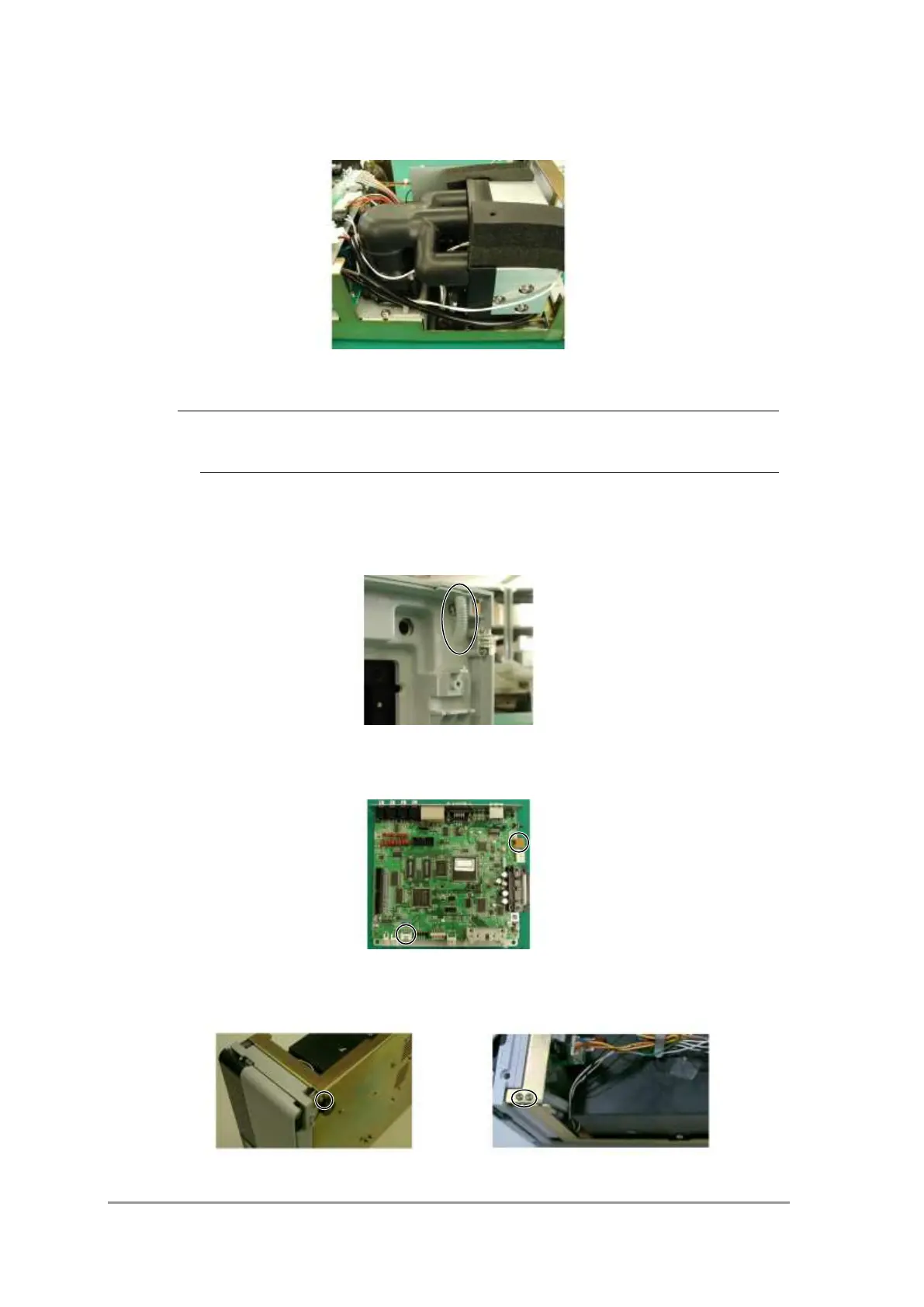

The duct is not fastened with a special screw. Since the respective ends of the tubes
are held only by insertion, they can be pulled out to remove it.
Duct
NOTE
 Make sure that wiring that runs nearby is not caught when removing the duct.
Short circuits will cause problems.
<Main frame>
1) Remove the front panel and drain tube.
2) The drain tube is fixed at one end to the top surface of the instrument. Pull it
downward to be removed.
Drain tube
3) Remove the connector that is attached to the leak sensor and panel from the CPU
board.
Positions of Leak Sensor and Panel Connector
4) Remove the two sets of two screws (M3x6) that fasten the hinges for the front panel
and remove the hinges.
Positions of Front Panel Fixing Screws
