Shimadzu SPD-M20A - Mechanical Parts List; Electrical System Parts List; Optional Accessories List

79
＜Inert cell Parts List＞
No.
P/N
Part Name
Remark
1
Cell gasket,2.0
228-14571-84
Two piece entering
2
Cell gasket,2.5
228-32998-02
3
Lens
228-14572
4
Lens fixing screw
ASSY
228-40239-91
5
Inlet pipe ,PEEK
670-10324-01
1.6×0.25×1m. no connector
6
outlet pipe ,PEEK
670-10324-01
1.6×0.25×30cm. no connector
7
Nut
228-33347
8
Ferrule 1.6F PEEK
228-31638

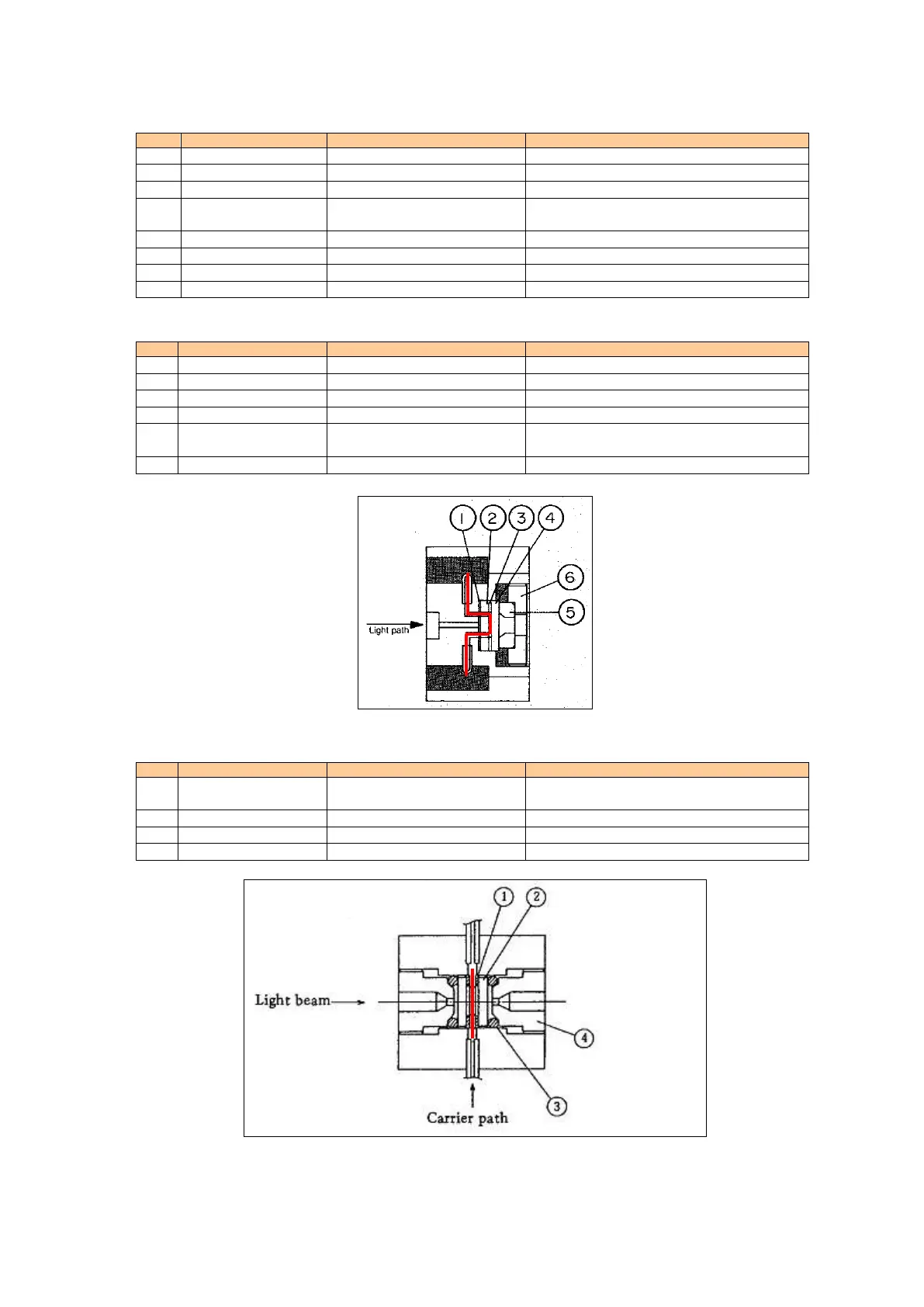

< Preparative Flow cell(variable path length) : 91(0.5mm)/92(0.2mm) /93(0.1mm) >
No.
P/N
Part Name
Remark
1
Cell gasket,,PTFE
228-21383
2
Cell window
228-21384-02
3
Packing,T-0.1
228-21385-01
-01(t0.1), -02(t0.2), -05(t0.5)
4
Cell window,1.7x7.8
228-00147-02
5
Cell window control
packing
228-21387
6
Cell window fixed screw
228-21386/-01
< Preparative Flow cell(fixed path length,0.5mm) >
No.
P/N
Part Name
Remark
1
Spacer,tefron for cell
prep
228-15503
2
Cell window
228-00147-03
3
o-ring,PTFE P4
036-11402
4
Cell window fixed screw
228-03152
