Chapter 5: Assembly and Disassembly of Parts
SPD-M20A Service Manual
17
NOTE
Hinge attachment
If hinges are not properly attached, then the front panel will not open and close
properly. See "5.1.3 Front Panel Adjustment Procedure" to adjust the panel.
5) Remove the five screws (truss head, M4x8) fixing the main frame, and remove the
main frame (P/N 228-42559).

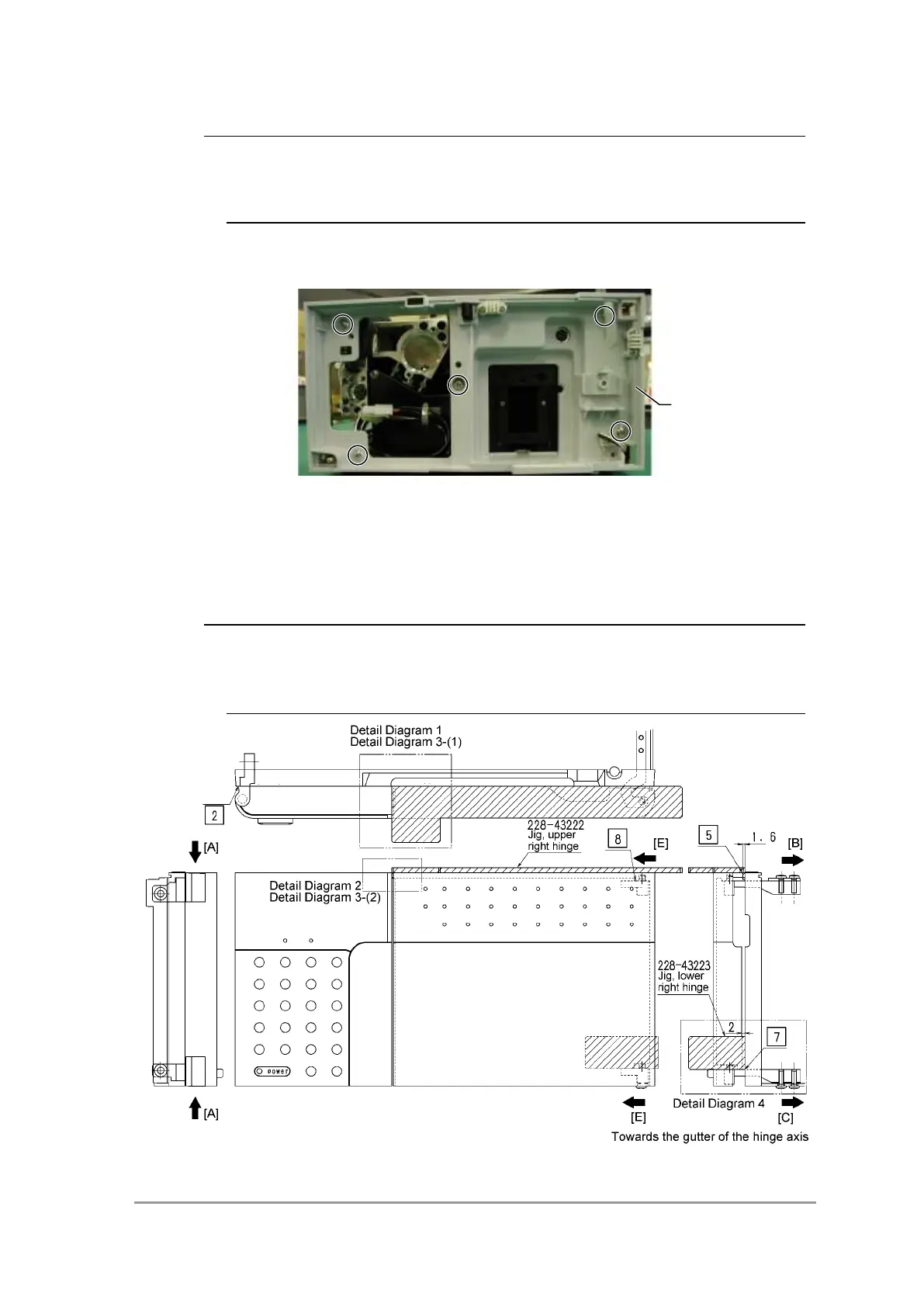

Positions of Main Frame Fixing Screws
<Front Panel Adjustment Procedure>
When replacing the door of the front panel, or if its position shifts over a long period of
use, follow the following procedure to adjust it.
NOTE
When adjusting, use the following jigs.
・ Jig, right upper hinge (P/N 228-43222-91)
・ Jig, right lower hinge (P/N 228-43223)
Front panel adjustment procedure diagram
Attaching the control panel ASSY (right door)
To Next Page
