78

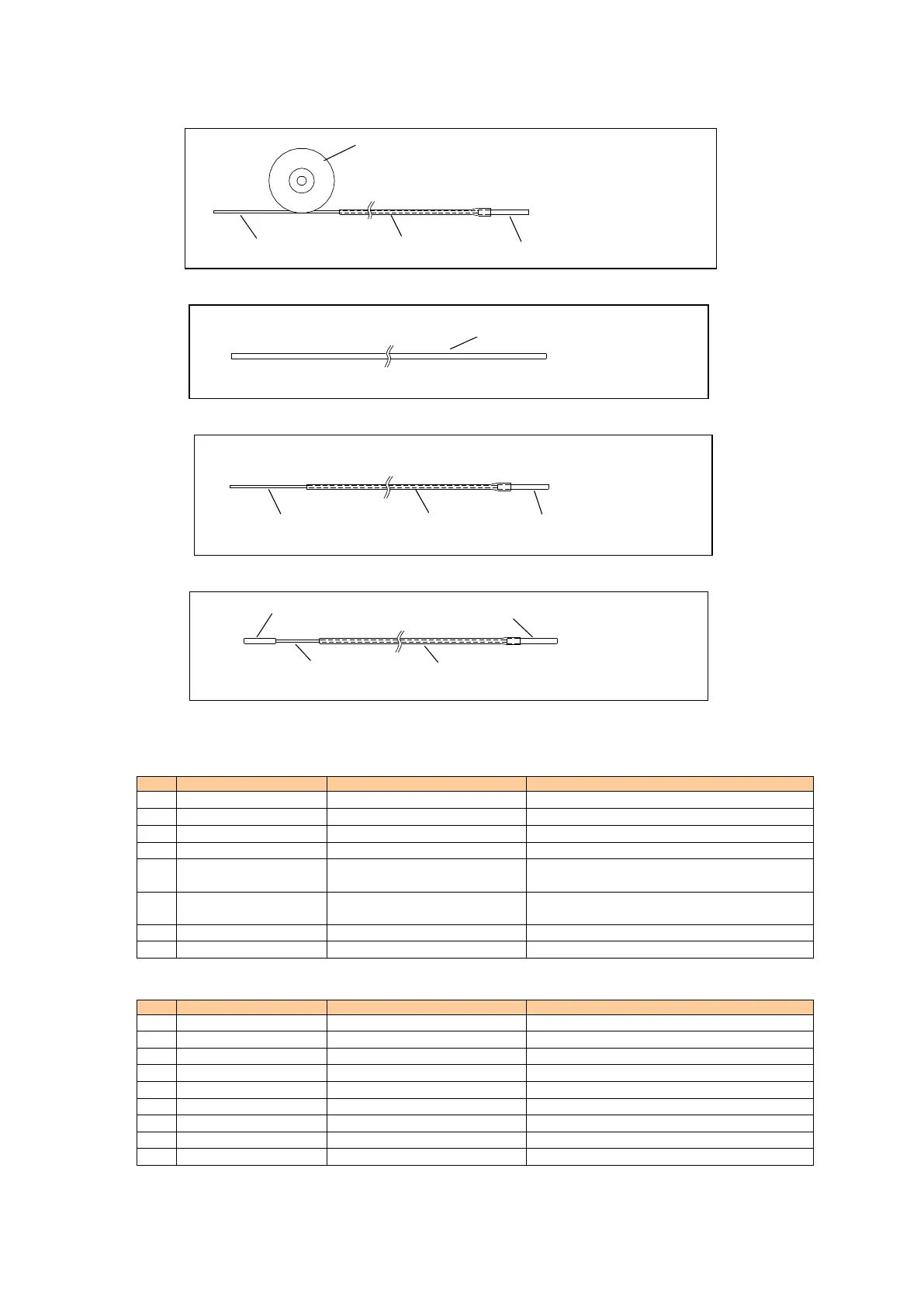

New inlet pipe
Material: SUS316L
Internal diameter: 0.13
Length: 1,040
Cell
Inlet
Heat exchange section
diamete External r: 0.8
External diameter: 1.6
FEP sleeve
Previous outlet pipe
Material ETFE
Internal diameter: 0.3
Length: 300
L
e
外径 1.6
External Diameter:1.6
New outlet pipe
Material: SUS316L
Internal diameter: 0.13
Length: 210
Cell
Outlet
External
Diameter:0.8
FEP sleeve
External
Diameter:1.6
Outlet pipe for modification of already delivered instrument
External diameter: 1.6
Outlet
FET sleeve
External diameter: 0.8
Material: SUS316L
Internal diameter: 0.13
Length: 210
External diameter: 1.6
Cell
< Semi-micro flow cell Parts List >
No.
P/N
Part Name
Remark
1
Cell gasket
228-35097-05
2
Lens
228-14572
3
Cell window
228-18058
4
Lens fixing screw ASSY
228-40239-91
5
Inlet pipe ASSY,semi-
micro
228-35641-92
0.13mmID. no connector
6
Outlet pipe ASSY,semi-
micro
228-35642-91
0.13mmID. no connector
7
Male nut 1.6MN-S
228-35090
8
Ferrule 1.6F
228-16000-10
< Micro flow cell Parts List >
No.
P/N
Part Name
Remark
1
Cell gasket
228-24295
2
Lens
228-14572
3
Cell window
228-18058
4
Lens fixing screw ASSY
228-40239-92
5
Inlet pipe ASSY,micro
228-31463
0.1mmID. no connector
6
Outlet pipe ASSY,micro
228-35642-91
0.13mmID. no connector
7
Male nut 1.6MN-S
228-35090
8
Ferrule 1.6F
228-16000-10
9
Long bush,1.6
228-25299
