Shimadzu SPD-M20A User Manual

77

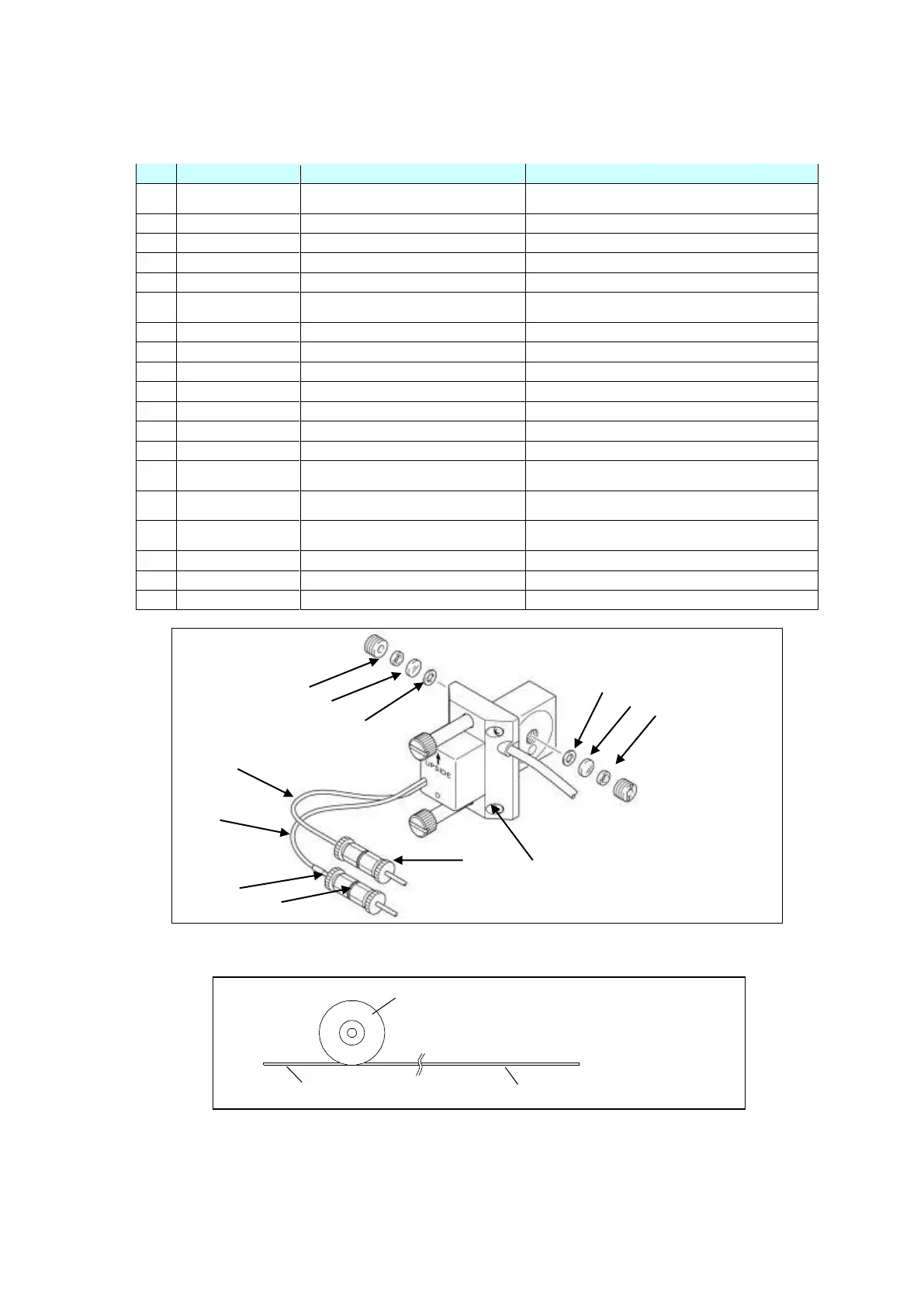

< Temperature controlled semi-micro flow cell Parts List >
No.
P/N
Part Name
Remark
1
228-45605-92/94/44
Temperature controlled semi-micro flow
cell
- 92:Old Cell
2
228-40239-91
Lens fixing screw ASSY
Lens fixing screws for flow cell
3
228-14572
Lens
Incident light side lens for flow cell
4
228-18058
Cell window
Emission light side cell window for flow cell
5
228-35097-05
Cell gasket
Gasket for flow cell
6
228-40189-43
Heater Assy
Heater and temperature sensor for flow cell
-43: With poly switch
7
228-40996
Male nut 0.8MN
For new cell housing connection
7
228-37457
Male nut 1.6MN-S-6
For old cell housing connection
8
228-40997-10
Ferrule 0.8F
For new cell housing connection
8
228-16000-10
Ferrule 1.6F
For old cell housing connection
9
228-40998
Coupling 1.6-0.8C
For old cells
10
228-46363
Male nut 0.8MN PEEK
For old cells
10
228-18565
Male nut 1.6MN PEEK
For new cells
11
228-45609-93
New inlet pipe ASSY
Ferrule 0.8F and mail nut 0.8MN-M4 by the side of
cell housing are attached.
12
228-45616-91
For old cells
New outlet pipe ASSY(0.13mmID)
Ferrule 1.6 by the side of old cell housing is
attached.
12
228-45609-94
For new cells
New outlet pipe ASSY(0.13mmID)
New cell housing side Ferrule 0.8F and mail nut
0.8MN-M4 are attached
13
020-12104
Screw M3×6, SUS304/SUSXM7
Fixed screw for an inner cover
14
228-38390-91
Fixed screw for cells
15
020-03144
Fixed screw for an outer cover
Resin screw
Previous inlet pipe
Heat exchange section
Cell
Inlet
Material: SUS316L
Length: 870
Internal diameter: 0.13
External diameter: 0.8
External diameter: 0.8
⑨
①
③
④
①
④
②
⑪
⑩
⑧
⑬
⑫
