Shimadzu SPD-M20A User Manual

Chapter 5: Assembly and Disassembly of Parts
SPD-M20A Service Manual
33
2) Remove the screw (sems, M4x8) fixing the fin (guide fin W P/N 228-33323) to
the W lamp housing, and remove the fin.

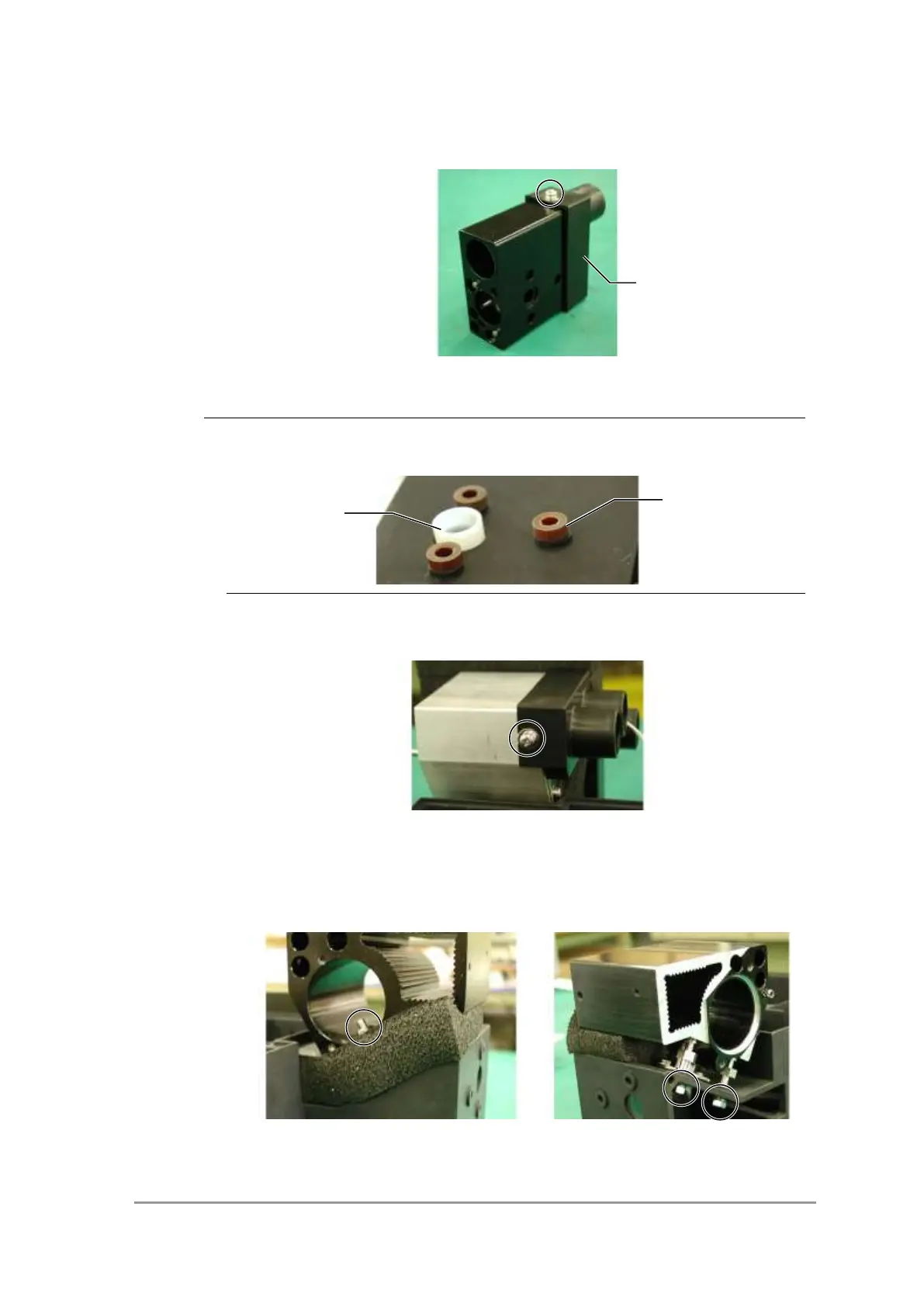

Position of Fin Fixing Screw
NOTE
 When installing, make sure that the spacers (4) do not fall between the housing
and the base.
<Guide fin D2>
1) Remove the screw (sems, P4 M4x8) and remove the guide.
Position of Guide Fixing Screw
<Lamp housing, D2>
1) Remove the single nut (M4) on the side of the case and the two nuts (M4) on
the side of the lamp housing which attach the lamp housing.
D2 lamp housing nut (left) and case nuts (right)
<Half mirror (LM ASSY)>
Spacer, CX-403
P/N 228-33686
Spacer, 12x10
P/N 228-33686
Guide fin W
P/N 228-33323
