85

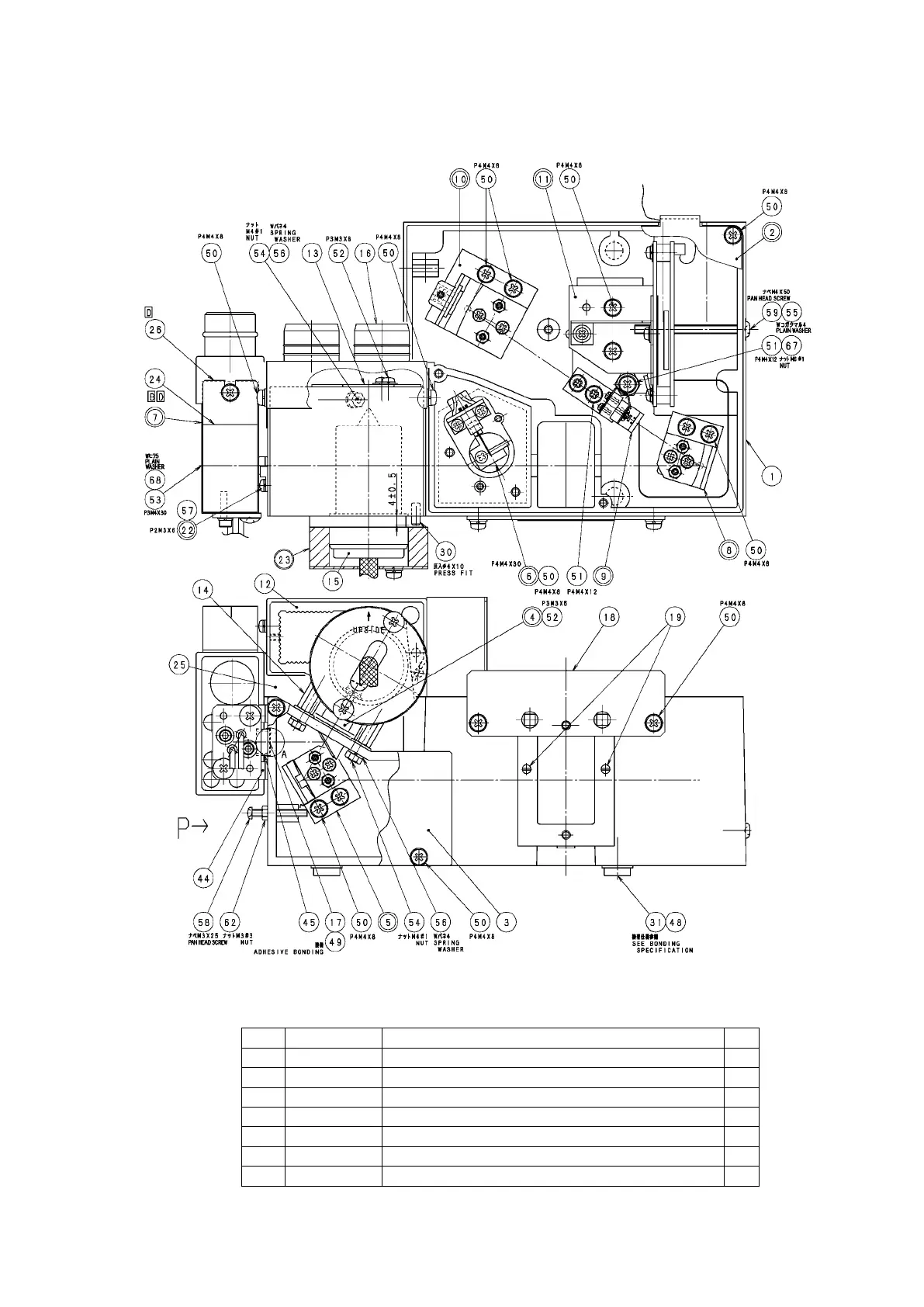

9.2 Optical Unit (OPTICAL UNIT P/N 228-42510)
Optical Unit (Top Panel, Front Panel)
Parts Table
No.
P/N
Part Name
Qty
1
228-33300-02
Base
1
2
228-42587-91
Cover ASSY
1
3
228-33193
Side plate
1
4
228-33183-91
LM ASSY
1
5
228-33184-91
M1 ASSY
1
6
228-33140-91
Shutter ASSY
1
7
228-33189-92
W lamp ASSY, M20A
1
