Shimadzu SPD-M20A - Optical Check

Chapter 6: Maintenance and Adjustments
SPD-M20A Service Manual
54
The button displayed only with the menu for service
Button
Content
Optical Check
(Reference [6.9.3 Optical Check])
Absorbance Linearity Check
(Reference [6.9.4 Absorbance Linearity Check])
Leak Sensor Check / Calibration
(Reference [6.9.5 Leak Sensor Check / Calibration])
Instrument Information
(Reference [6.9.6 Instrument Information])
6) A [Dark] button is pushed and a dark level is measured.
When PDA Utility is started, please be sure to perform this operation.
“Dark” button
NOTE
 It treats about the menu which is not explained in the instruction manual.
< Optical Check >

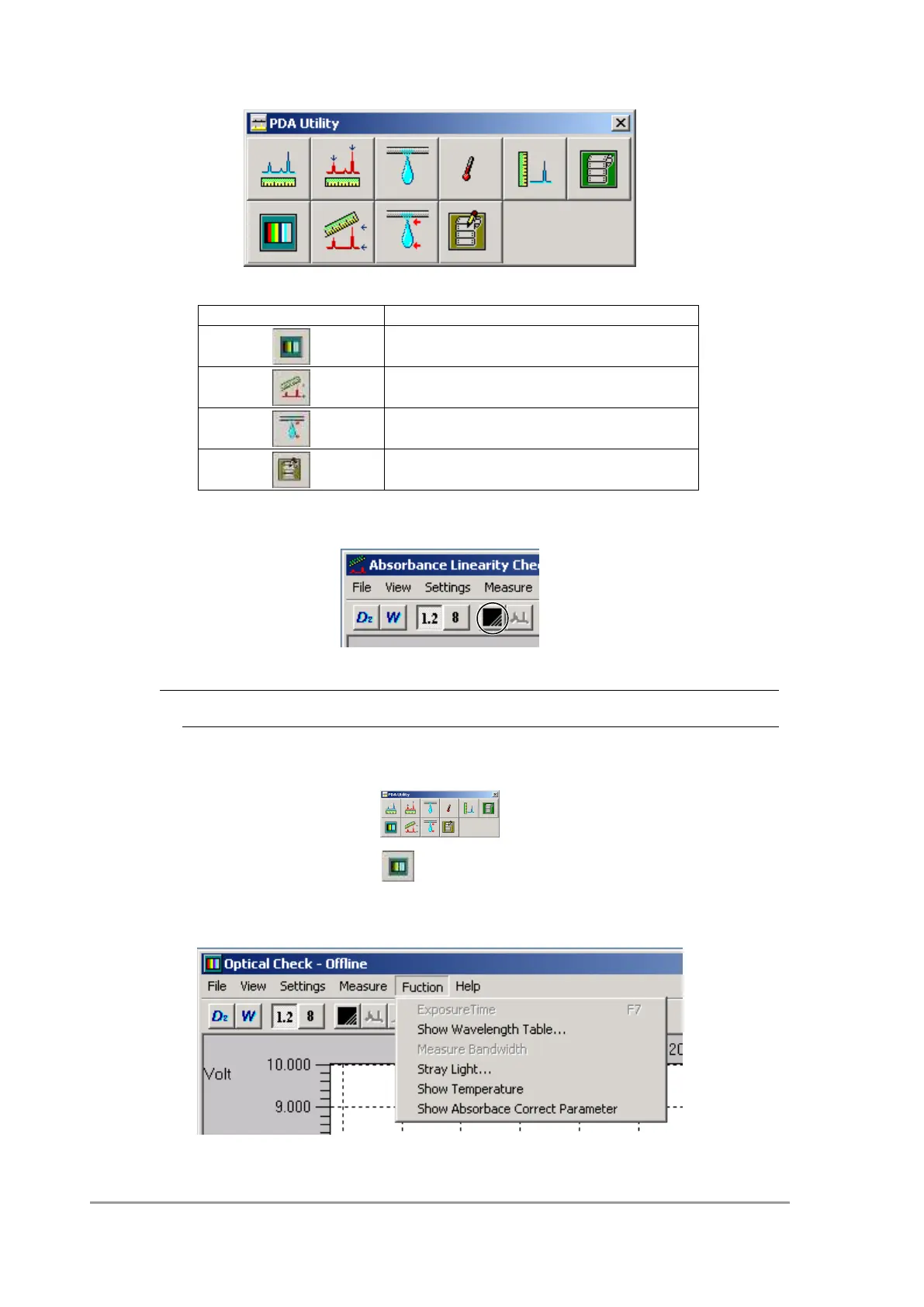

1) The menu for PDA Utility service menu.
2) An “Optical Check” button is pushed.
An “Optical Check” window is displayed.
3) The contents of the menu for service “Function” are as follows.
