Shimadzu SPD-M20A User Manual

83

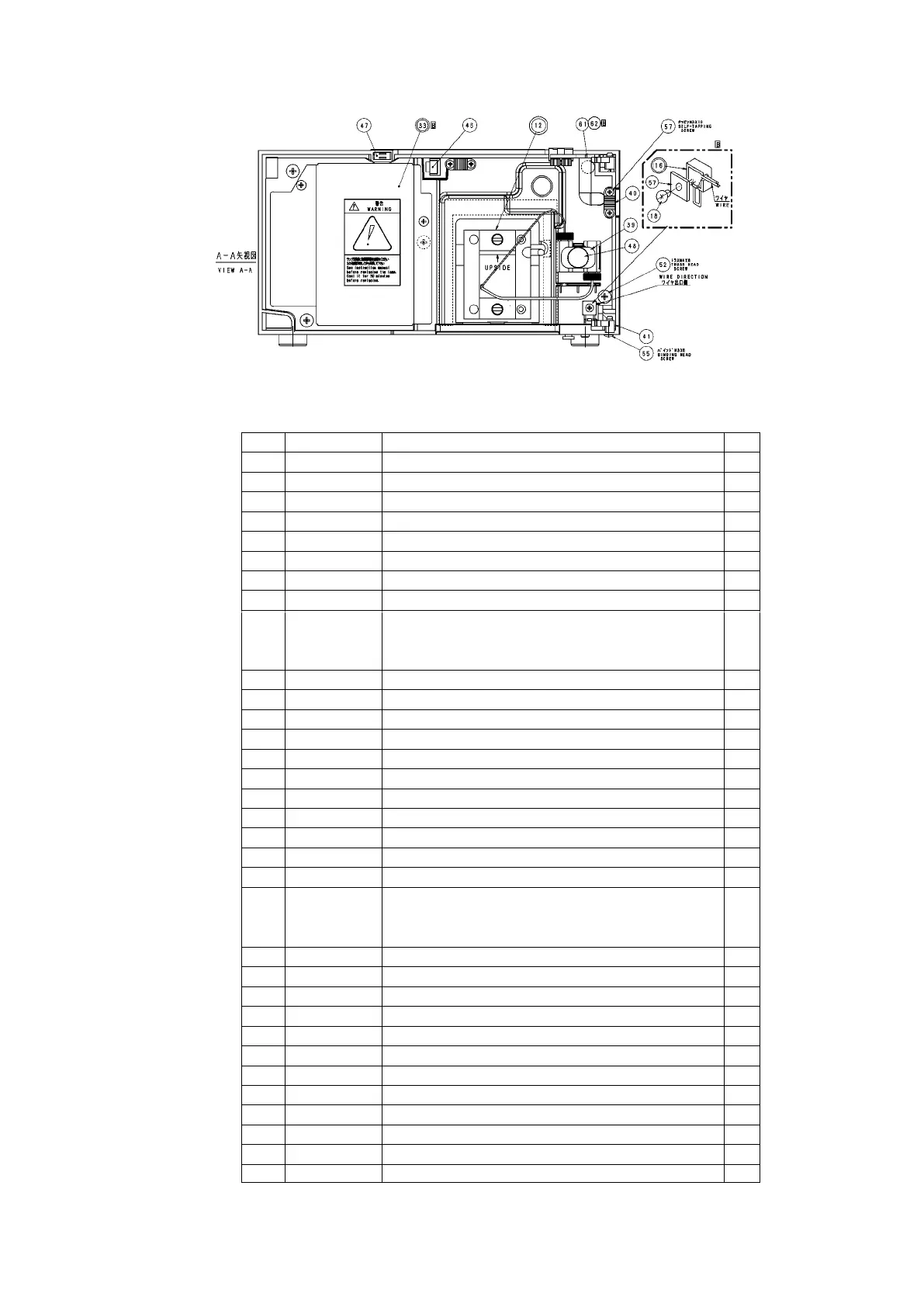

Inside Front Panel
Parts Table
No.
P/N
Part Name
Qty
0
228-34171-92
Adjustment part
AR
0
228-34172-92
Assembling jig ASSY, M20A
AR
0
228-46052
DISK, SPD-M20A
AR
9
228-42505-96
Packing specifications, SPD-M20A
1
10
228-42510-91
OPTICAL UNIT
1
12
228-42593-91
Temperature controlled cell ASSY
1
13
228-42511-91
CONTROL UNIT, 100V
1
14
228-42514-01
Cover
1
15
228-42512
(-91) Standard part ASSY, 100V
(-92) Standard part ASSY, 120V
(-93) Standard part ASSY, 200V system
1
16
228-39247-94
Leak sensor, 20A detector
1
17
228-43200-98
Panel ASSY (SPD-M20A)
1
18
228-42636
Cover, leak sensor
1
20
070-02120-90
Cap, DE-9P-DC1
1
20
070-02235
Dust cap, 0255060001
1
21
020-46547
Screw, SUS sems, P3 M4X8
2
23
228-42586
Sponge, front
1
24
228-42564
Duct
1
25
228-30163-80
Certificate of compliance, SPDM20
1
26
228-33627
Certificate of compliance, entry directions
AR
27
228-30164
Certificate of compliance, instructions
1
28
228-42604
(-01) Name plate, SPD-M20A 100V
(-02) Name plate, SPD-M20A 120V
(-03) Name plate, SPD-M20A 230V
1
30
228-90052
GLP test result certificate
1
31
072-60333-03
Clip, wire SD-15
2
32
228-42559
Main frame, SPD-M20A
1
33
228-42932-91
Light shielding plate
1
34
228-44282
Sponge, cube
1
39
228-42566
Retaining plate
1
40
228-39621
Tube holder
1
41
228-42212
Right hinge, 20A
2
42
228-43201
Right panel, base
1
43
228-43202
Right panel, STD
1
46
037-51323-01
Latch, NS-2
1
47
037-51322-02
Catch, magnet CM-1205UB
1
