OFF
uncoded
code 1
code 2
rev.conf.
ON
1 2 3 4
O F F
1 2 3 4
O F F
1 2 3 4
O F F
1
O N
2
A
B
C
D
1 2 3 4
O F F

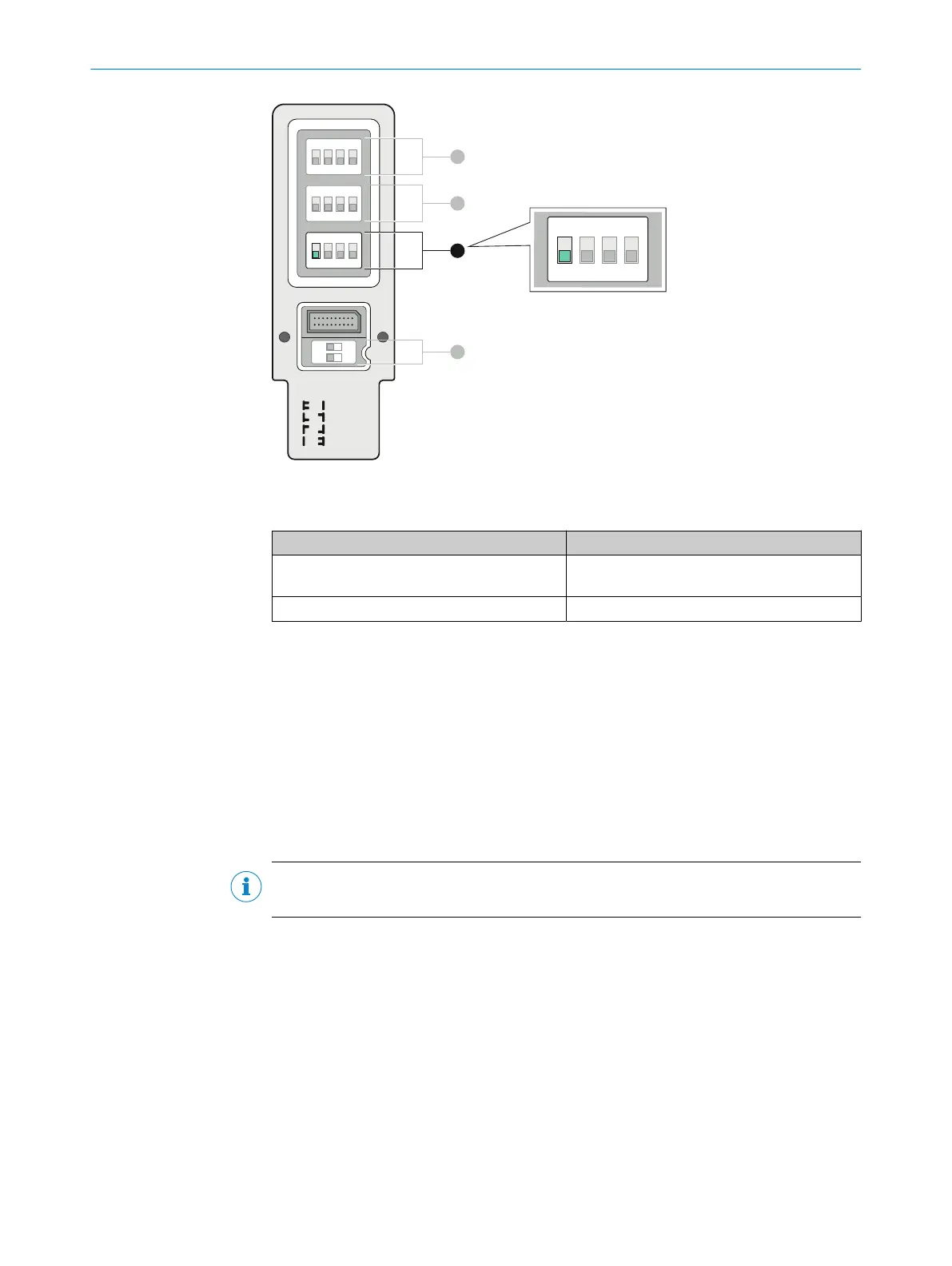

Figure 61: DIP switch for smart presence detection on SP2 system plug
Table 37: DIP switch and smart presence detection
DIP switch 1 (row C) Function
Off Smart presence detection inactive (delivery
condit
ion)
On Smart presence detection active
Note on configuration
b
Chec
k the parity after setting the DIP switch, see "Checking the parity", page 102.
7.10 Configuring Smart Box Detection
Overview
Smar
t Box Detection is configured via DIP switch 3 (row C) on the receiver of a single
system.
Important information
NOTE
Smar
t Box Detection can only be configured on the receiver of a single system.
Prerequisites
•
SP2 s
ystem plug
•
Single device with a resolution of 14 mm
CONFIGURATION 7
8021645/1EB0/2022-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
101
Subject to change without notice
