The safety light curtain has a resolution of 30 mm. This resolution provides hand
pr
otection.
Scanning range
The scanning range is the maximum protective field width.
The scanning range is reduced by using deflector mirrors.
The scanning range is reduced by using a weld spark guard.
Further topics
•
"F
lexible control cabinet cabling and status indication on both sides", page 20
•
"Data sheet", page 140
•
"Deflector mirrors", page 160
•
"Weld spark guard", page 154
3.2 Product characteristics
3.2.1 Device overview

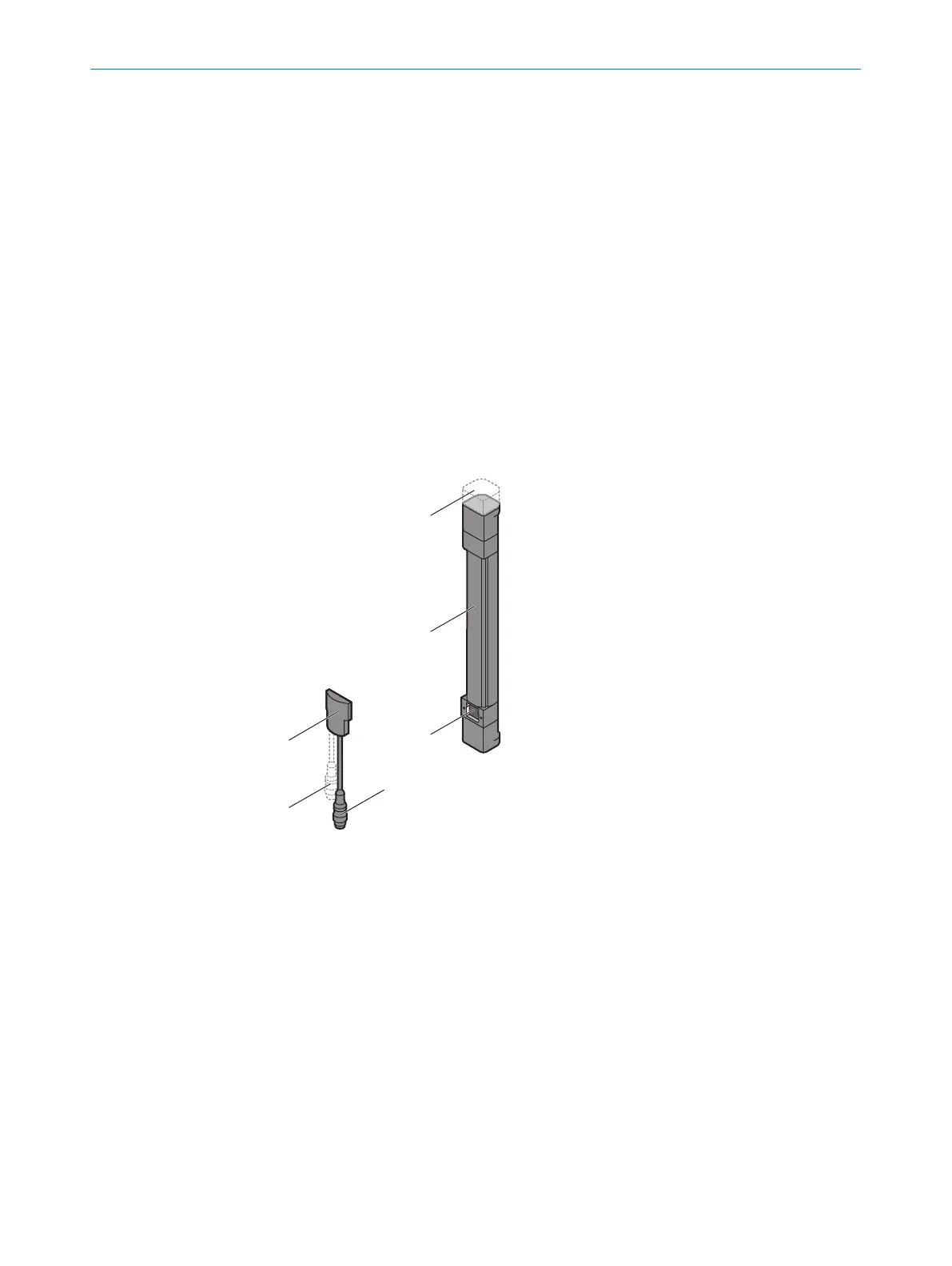

Figure 3: Device overview
!
End cap with integrated indicator lamp (optionally available on the receiver)
"
Sender or receiver
§
System plug
$
Terminal compartment
%
Extension connection (only for certain system plugs)
&
System connection
3.2.2 Absence of blind zones
The design and construction of the safety light curtain extends the protective function
of a de
vice to the end of the housing without any blind spots. The absence of blind
zones reduces the space requirement when integrated in the machine.
Exception: If the end cap on the receiver contains an integrated LED, the protective
function of the device only extends to below the LED.
PRODUCT DESCRIPTION 3
8021645/1EB0/2022-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
13
Subject to change without notice
