SICK deTec4 User Manual

15 Accessories
15.1 Brackets
Table 67: Brackets ordering information
Part Type code Part number
QuickFix bracket (2x) BEF-3SHABPKU2 2066048
QuickFix bracket (4x) BEF-3SHABPKU4 2098710
FlexFix bracket (2x) BEF-1SHABPKU2 2098709
FlexFix bracket (4x) BEF-1SHABPKU4 2066614
FlexFix mounting kit (2x FlexFix brackets, align‐
ment t
ool, and assembly materials for installa‐
tion in device columns)
BEF-1SHABBKU2 2073543
Replacement bracket (kit with 4 brackets,
mounting kit for replacement of swivel mount
brackets 2019649 and 2019659 or side
bracket 2019506 with the FlexFix bracket
when using the wells provided)
BEF-1SHABS004 2100345
Replacement bracket (kit with 4 brackets,
mounting kit for replacement of swivel mount
brackets 2030510 or side bracket 2019506
with the FlexFix bracket when using the wells
provided)
BEF-1SHABU004 2099282
QuickFix bracket
47,2
40,2
49 20
30
Ø 5,6
Ø
5,6
7,2
30
41,1
25
4,5
4,5
10,4
7,2
2
18,2

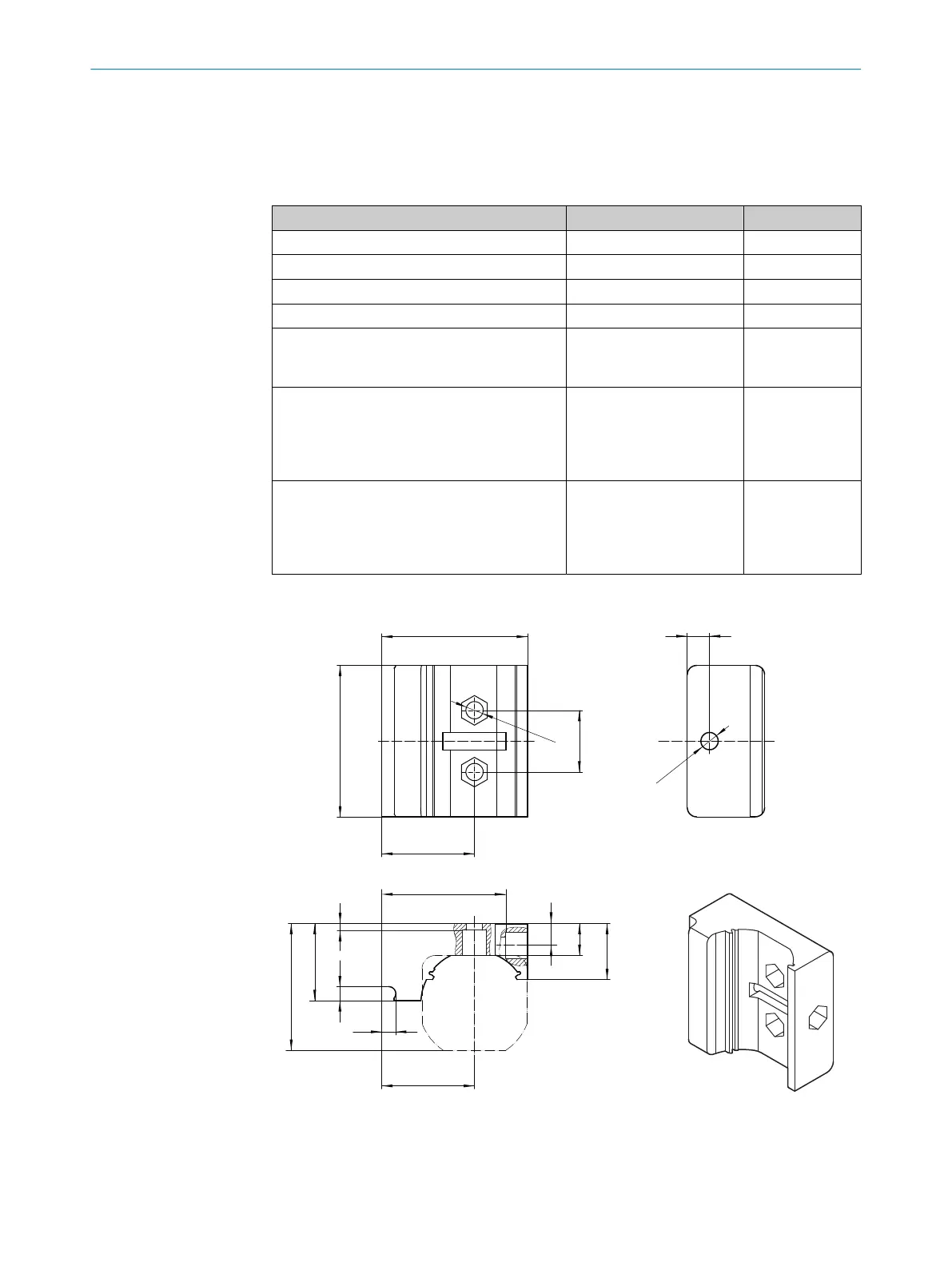

Figure 67: Dimensional drawing of the QuickFix bracket
ACCESSORIES 15
8021645/1EB0/2022-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
153
Subject to change without notice
