Further topics
•
"Pr
otection against interference from systems in close proximity to each other",
page 33
•
"Factory settings", page 93
7.6 Configuring muting
Overview
Mut
ing is configured using the DIP switches 1 to 4 (row A) on the receiver of a single
system.
Depending on arrangement of the muting sensors, cross-muting or exit monitoring can
be configured and the safety light curtain protection can be temporarily bypassed. In
combination with partial blanking, the safety can be increased by having the topmost
beam (far from system plug) remain active during a valid muting condition. A muting
signal can be moved from the extension connection to the system connection.
Important information
NOTE
Mut
ing is only configured on the receiver of a single system.
Prerequisites
•
SP2 s
ystem plug
Configuring muting
OFF
uncoded
code 1
code 2
rev.conf.
ON
1 2 3 4
O F F
1 2 3 4
O F F
1 2 3 4
O F F
1
O N
2
A
B
C
D
1 2 3 4
O F F

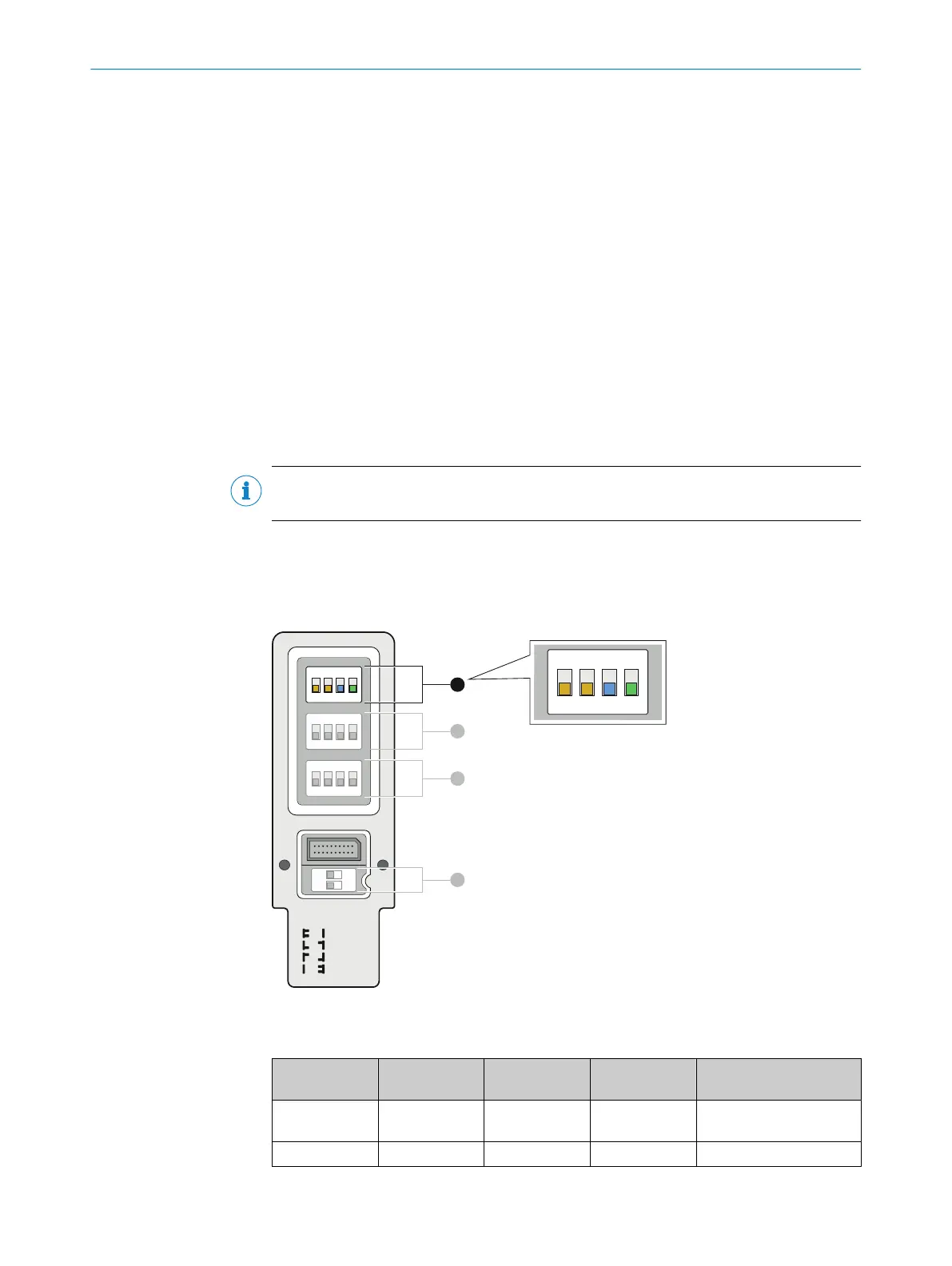

Figure 58: DIP switch for muting on the SP2 system plug
T
able 34: DIP switch and muting
DIP switch 1
(r
ow A)
DIP switch 2
(row A)
DIP switch 3
(row A)
DIP switch 4
(row A)
Function
Off Off Off Off Muting deactivated
(delivery condition)
Off On Off Off Cross muting
CONFIGURATION 7
8021645/1EB0/2022-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
97
Subject to change without notice
