the K1 and K2 contactors on. When the protective field is interrupted, the OSSD
1 and O
SSD 2 outputs switch the RLY3-OSSD2 off. Lamp H1 lights up. Contactors
K1 and K2 are switched off. As soon as the protective field is clear again, lamp H2
flashes.
F
ault analysis
Cross-circuits and short-circuits of the OSSDs are recognized and lead to the
loc
king status (lock-out). A malfunction with one of the K1 or K2 contactors is
detected. The switch-off function is retained. In the event of manipulation (e.g.,
jamming) of the S1 pushbutton, the RLY3-OSSD2 will not re-enable the output
current circuits.
8-pin, RLY3-OSSD1 safety relay
3) PELV
F2 F1
+24 V DC
0 V DC
K1K2
E324548/00/2021-09-29
k2
z
k1 k2
k1
z
x
y
x
1)
y
32
31I1 I2
24A2 14
23 13
RLY3-OSSD1
System connection
System connection
+24 V DC
deTec4 SP1
2
1
3
5
6
4
7
8
r
RES
ADO
OSSD 1
OSSD 2
EDM
0 V DC
MFP 1
s
+24 V DC
n.c
In 2
In 1
n.c
.
0 V DC
MFP 1
n.c.
2
3
4
5
6
1
7
8
2)
F0
L+
L–
H1
S1

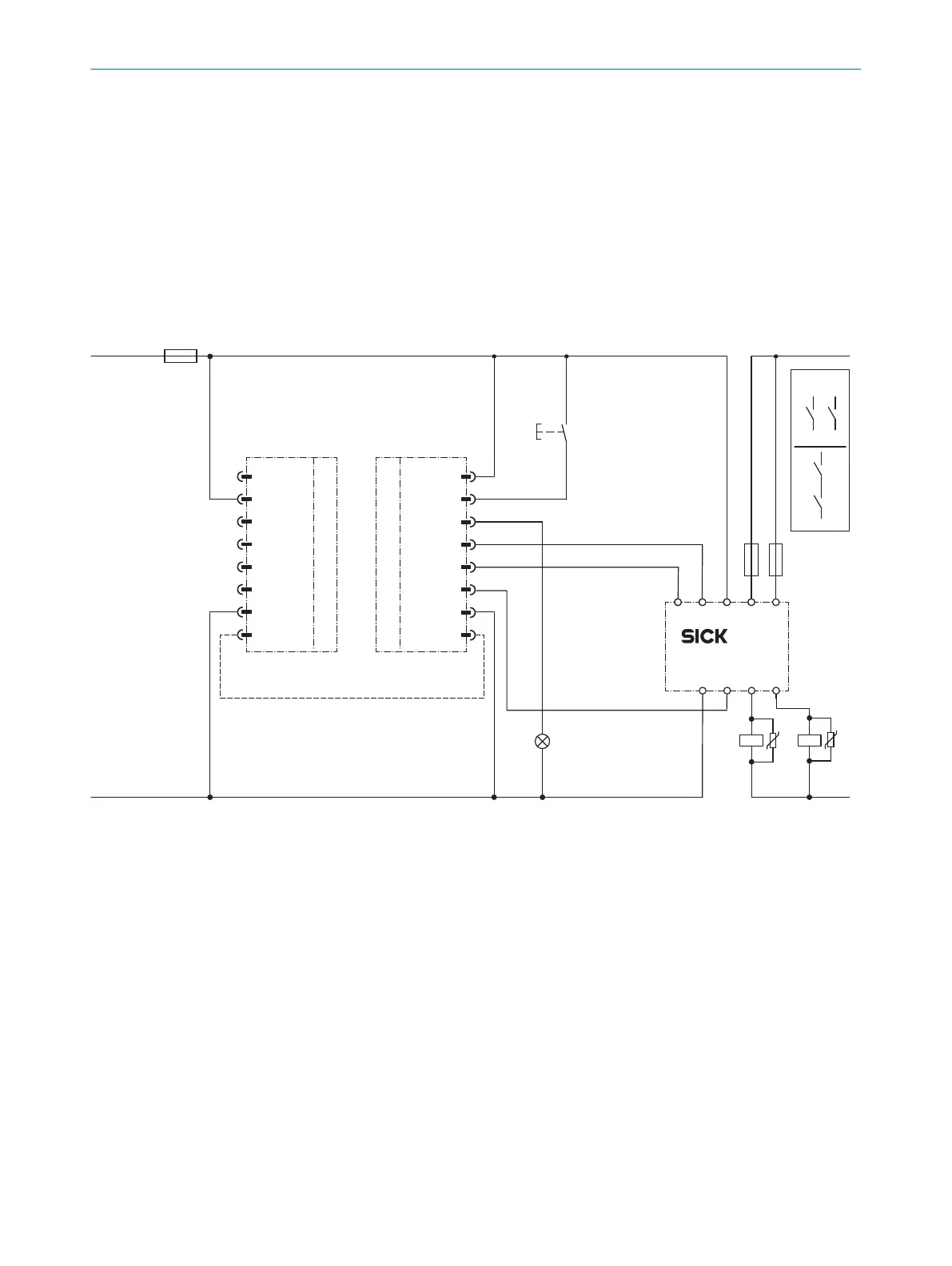

Figure 38: Connection diagram: 8-pin, RLY3-OSSD1 safety relay
1) Output circuits. These contacts must be incorporated into the control such that the
d
angerous state is brought to an end if the output circuit is open. For categories 4 and
3, they must be incorporated on two channels (x, y paths). Single-channel incorporation
into the control (z path) is only possible with a single-channel control and taking the risk
analysis into account.
2) To indicate the status on both sides, the MFP 1 connections from the sender and receiver
must be connected to each other in the control cabinet (optional).
3) SELV/PELV safety extra-low voltage.
T
ask
Connection of a deTec4 safety light curtain to a RLY3-OSSD1 safety relay. Operat‐
in
g mode: With restart interlock, external device monitoring (EDM), and application
diagnostic output.
Mode of oper
ation
If the protective field is clear and the RLY3-OSSD1 is in a fault-free de-energized
posit
ion, the field indicator and the H2 lamp flash. The system can be switched
on. The system is enabled by pressing S1 (pushbutton is pressed and released).
4 P
ROJECT PLANNING
66
O P E R A T I N G I N S T R U C T I O N S | deTec4 8021645/1EB0/2022-04-28 | SICK
Subject to change without notice
