13.7 Dimensional drawings
30
56,8
L2
34
21,8
5
40,8
20,8
30,7
56,8
29,5
L1
110,1
41
14
56,8
34
4
13,8
12,8
30,7
41
L1
56,8

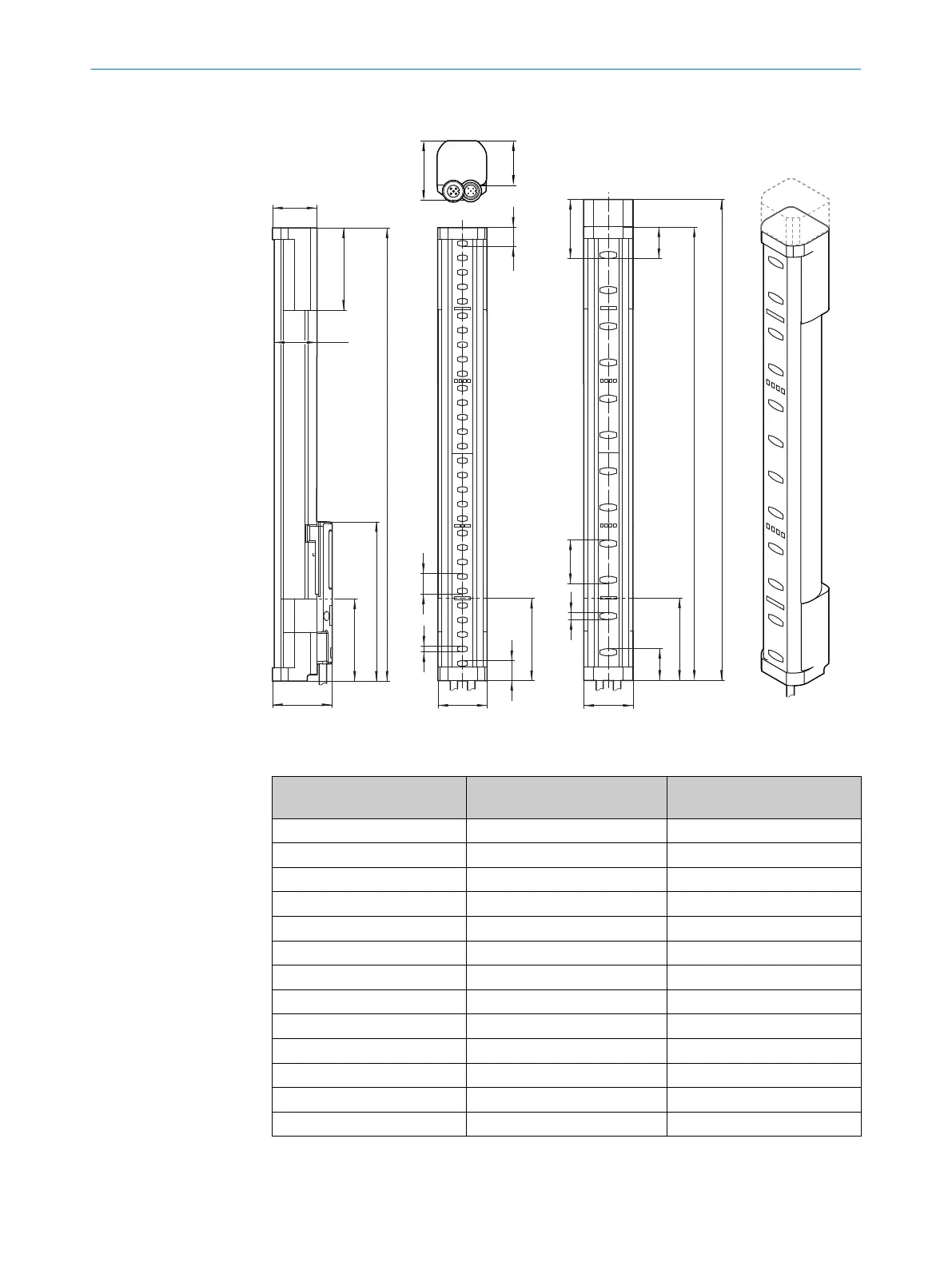

Figure 66: Dimensional drawing of sender and receiver
Table 59: Dimensions based on the protective field height, sender and receiver
Protective field height, nomi‐
nal in mm
Protective field height, effec‐
t
ive = dimension L1 in mm
Dimension L2 in mm
300 313 332
450 463 482
600 613 632
750 763 782
900 913 932
1050 1063 1082
1200 1213 1232
1350 1362 1382
1500 1512 1531
1650 1662 1681
1800 1812 1831
1950 1962 1981
2100 2112 2131
TECHNICAL DATA 13
8021645/1EB0/2022-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
149
Subject to change without notice
