15.5 Alignment aid
Table 85: Alignment aid ordering information
Part Part number
AR60 laser alignment aid 1015741
Adapter 4070854
15.6 Deflector mirrors
15.6.1 Function and use
Overview
D
eflector mirrors can be used to shape the protective field to secure hazardous points
from multiple sides using a single safety light curtain.

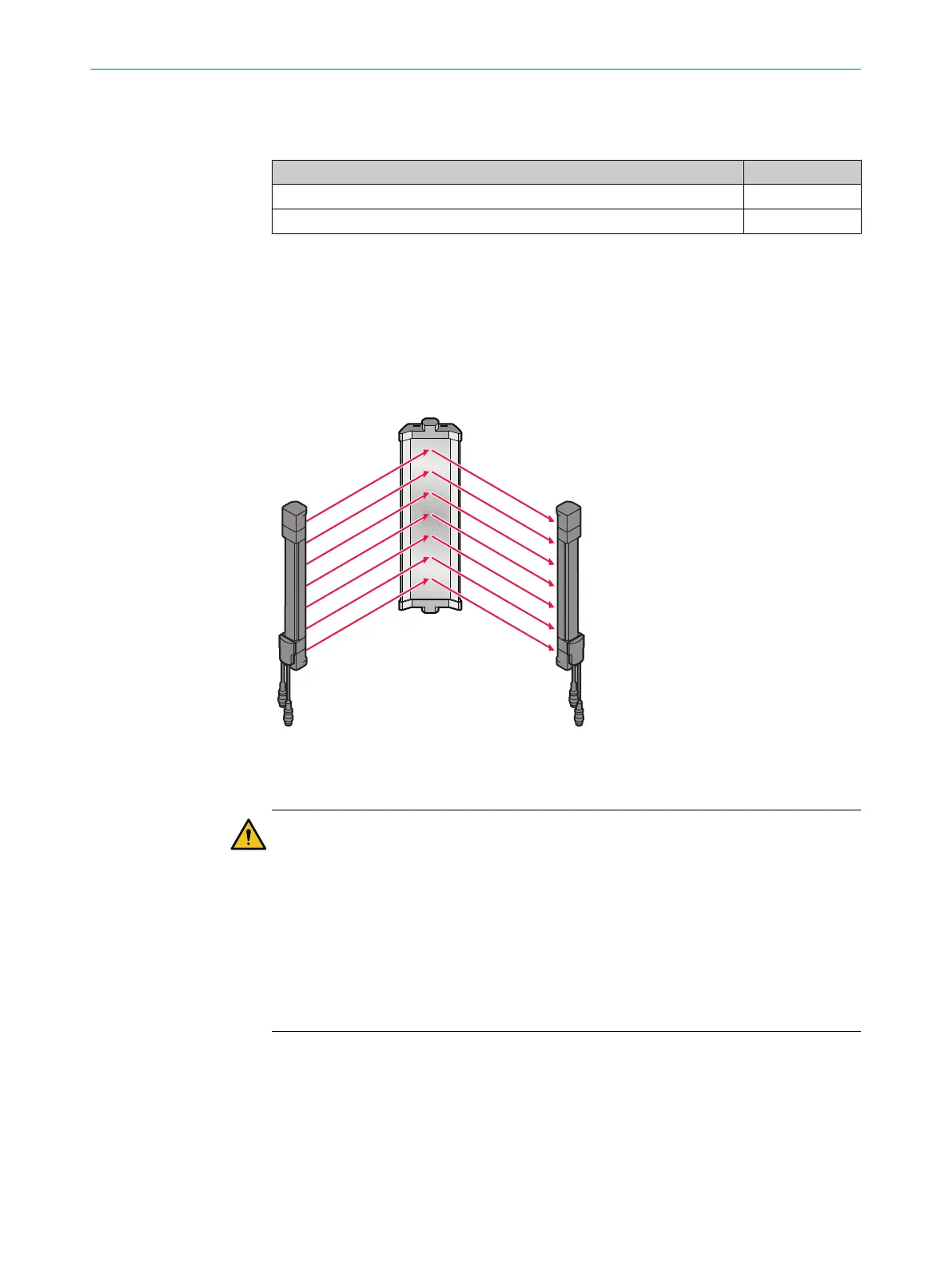

Figure 74: Example of use of deflector mirrors
Important information
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of
non-observance.
b
Only mount deflector mirrors to solid walls or machine components. The position
of the deflector mirrors must not change after alignment.
b
Do not use deflector mirrors if contamination, beading water, condensation, or
frost on the deflector mirrors is to be expected.
b
Make sure that the deflector mirrors are intact and free of scratches, contamina‐
tion, beading water, condensation, frost, etc. at all times.
Further topics
•
"Mir
ror columns", page 162
15.6.2 Mounting
To mount the deflector mirrors, use the included swivel mount brackets.
15 A
CCESSORIES
160
O P E R A T I N G I N S T R U C T I O N S | deTec4 8021645/1EB0/2022-04-28 | SICK
Subject to change without notice
