OFF
uncoded
code 1
code 2
rev.conf.
ON
1 2 3 4
O F F
1 2 3 4
O F F
1 2 3 4
O F F
1
O N
2
A
B
C
D
1 2 3 4
O F F

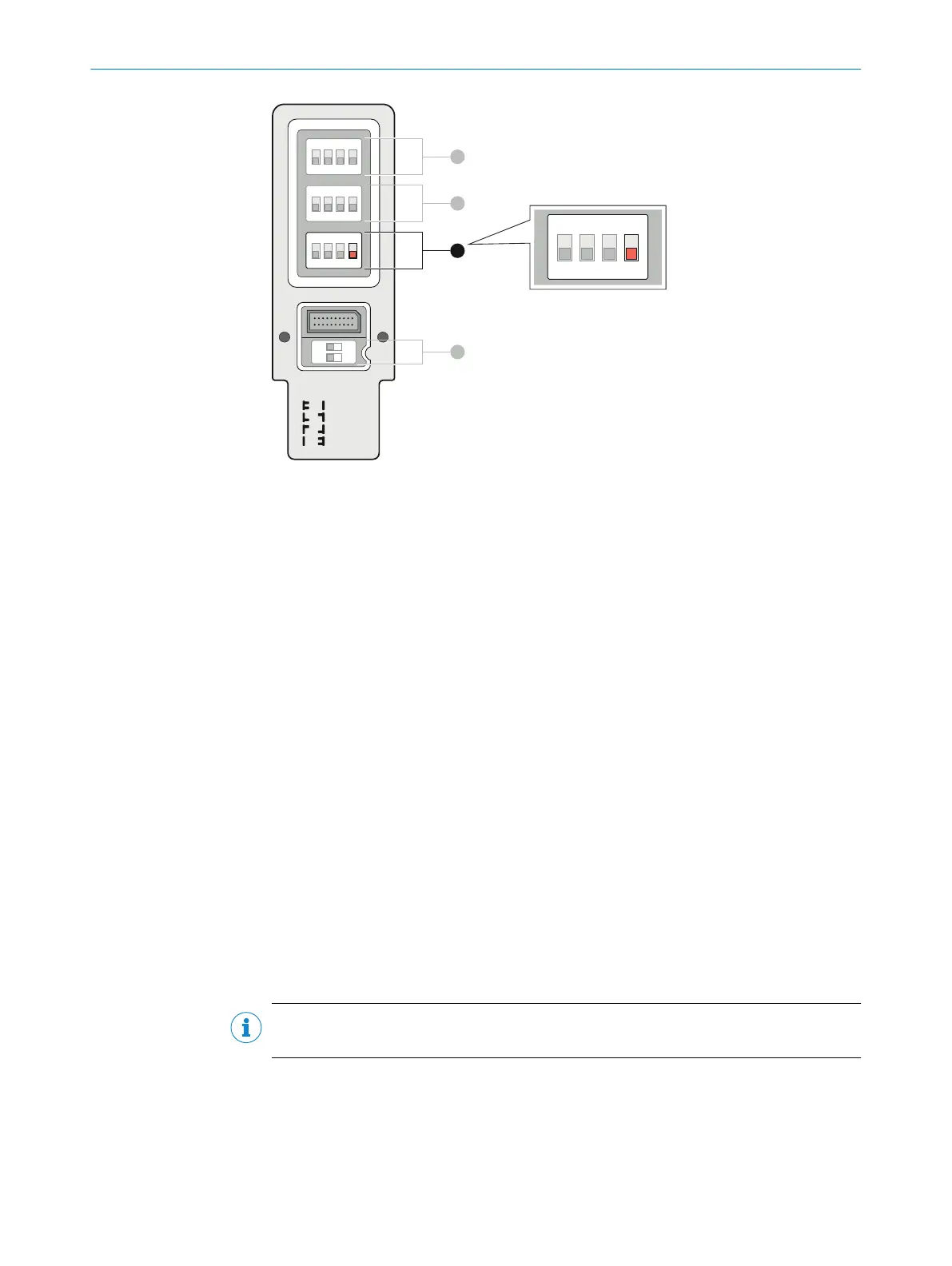

Figure 63: DIP switch for parity on SP2 system plug
Prerequisites
•
SP2 s
ystem plug
Approach
b
A
dd the DIP switches of rows A, B and C that are set to On.
°
If the sum of the DIP switches is even, keep the setting of DIP switch 4.
°
If the sum of the DIP switches is uneven, change the setting of DIP switch 4.
Example
On one device, partial blanking was configured based on cross-muting and the beam
coding (code 1). DIP switch 4 is in the OFF status.
b
Sum of the DIP switches (rows A to C), that are set to ON = 2.
DIP switches 1 and 2 (row D) for the beam coding are not included.
✓
T
he sum of the DIP switch is even.
b
The setting of DIP switch 4 (row C) stays in the OFF status.
7.12 Configuring the restart interlock
Prerequisites
•
A r
eset pushbutton is connected
•
The device is not in the Override or Override required state
Approach
NOTE
Sk
ip the first and second steps if the device is already in configuration mode.
1. Disconnect the device from the voltage supply.
2. Switch on the voltage supply, then continue with the next step within 30 s.
If more than 30 s elapses, start with step 1 again.
3. Press the reset pushbutton for between 1 and 3 s, then release it
If the reset pushbutton is pressed for more than 3 s, start with step 1 again.
✓
T
he device is in configuration mode, the field indicator flashes green.
CONFIGURATION 7
8021645/1EB0/2022-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
103
