FlexFix bracket
5,2
10,4
53
8,7
1321,8
3,5
49
31,5
30
41,1
29,7
3,7
5,2
10,2
31,5

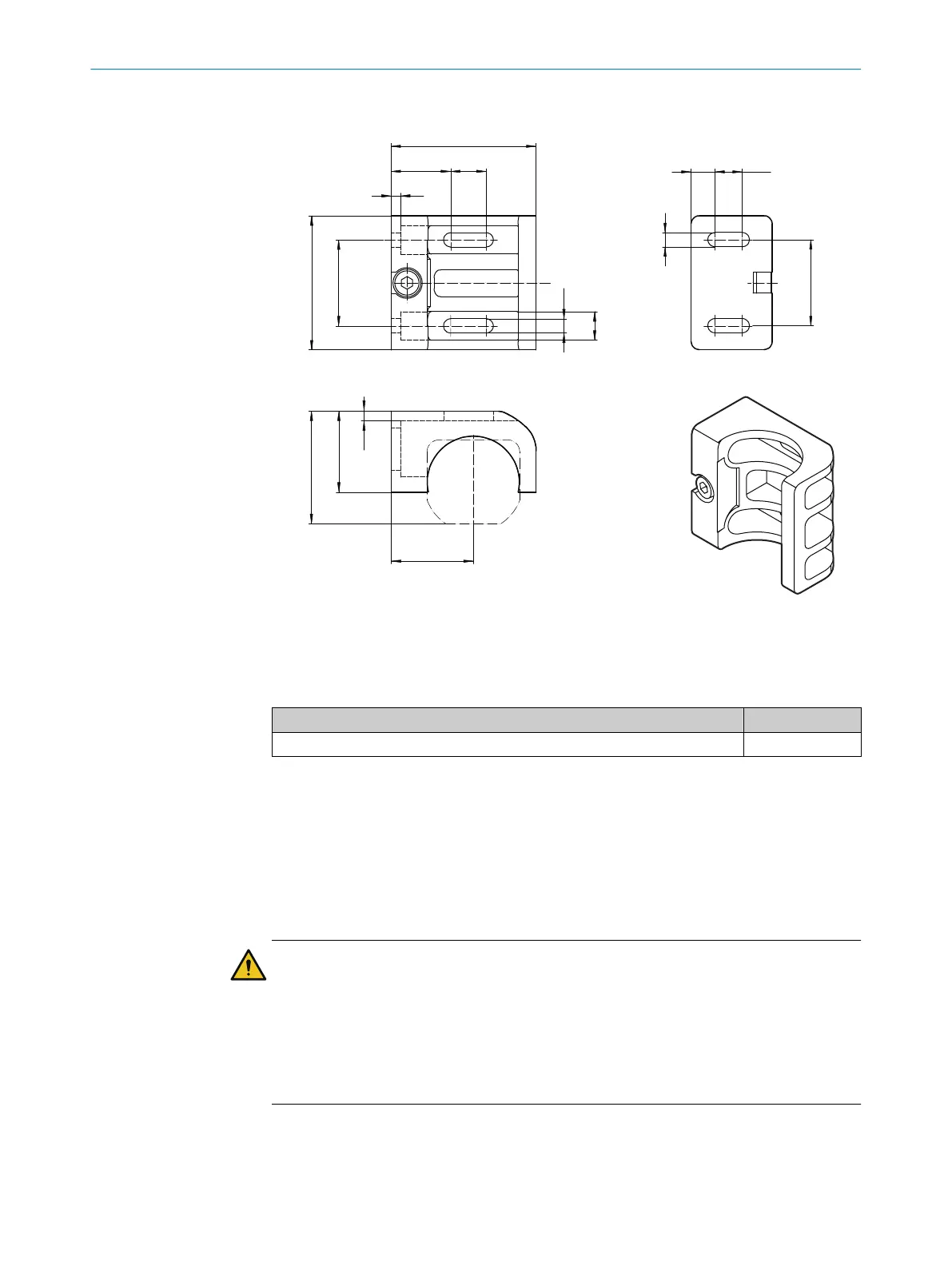

Figure 68: Dimensional drawing of the FlexFix bracket
15.2 Mounting accessories
Table 68: Mounting accessories ordering information
Part Part number
Alignment tool 4084133
15.3 Weld spark guard
Overview
T
he weld spark guard can be used to protect the front screen of the safety light curtain.
The weld spark guard reduces the scanning range of the system by 15%.
Important information
DANGER
H
azard due to lack of effectiveness of the protective device
The weld spark guard may influence the optical properties of the safety light curtain,
leading to persons or body parts that should be protected being reflected and therefore
remaining undetected.
b
Make sure that all reflective surfaces and objects maintain the correct minimum
distance from the protective field.
15 A
CCESSORIES
154
O P E R A T I N G I N S T R U C T I O N S | deTec4 8021645/1EB0/2022-04-28 | SICK
Subject to change without notice
