SICK MSC800 User Manual

Chapter 5
MSC800
8011540/14B8/2019-06-06 Operating instructions | SICK 63
Subject to change without notice
Electrical installation
System/
terminal set
Terminal Signal Wire color (numbers
printed on wires)
System 1
KLS1
-X120/11 DC +24 V (ICD890 camera) Wire 1: black
-X120/12 GND (ICD890 camera) Wire 2: black
-X120/13 DC +24 V (ICI890_1#1 illumination) Wire 3: black
-X120/14
GND (ICI890_1#1 illumination)
Wire 4: black
-X120/15 DC +24 V (ICI890_1#2 illumination) Wire 5: black
-X120/16 GND (ICI890_1#2 illumination) Wire 6: black
-X120/17 PE Green-yellow
System 2
KLS2
-X120/21 DC +24 V (ICD890 camera) Wire 1: black
-X120/22 GND (ICD890 camera) Wire 2: black
-X120/23 DC +24 V (ICI890_2#1 illumination) Wire 3: black
-X120/24
GND (ICI890_2#1 illumination)
Wire 4: black
-X120/25
DC +24 V (ICI890_2#2 illumination)
Wire 5: black
-X120/26 GND (ICI890_2#2 illumination) Wire 6: black
-X120/27 PE Green-yellow
System 3
KLS3
-X120/31 DC +24 V (ICD890 camera) Wire 1: black
-X120/32
GND (ICD890 camera)
Wire 2: black
-X120/33 DC +24 V (ICI890_3#1 illumination) Wire 3: black
-X120/34 GND (ICI890_3#1 illumination) Wire 4: black
-X120/35
DC +24 V (ICI890_3#2 illumination)
Wire 5: black
-X120/36
GND (ICI890_3#2 illumination)
Wire 6: black
-X120/37 PE Green-yellow

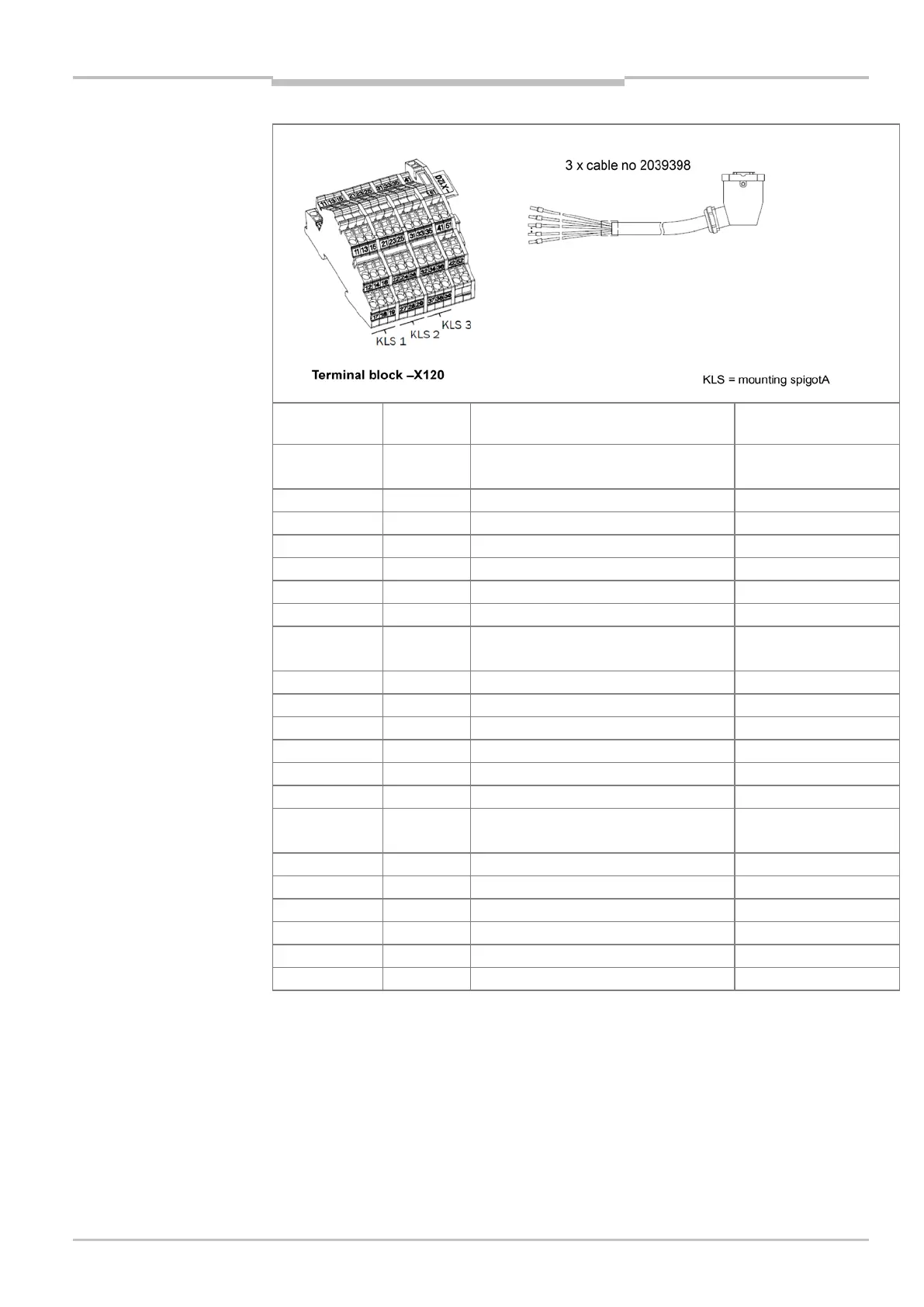

Tab. 37 MSC800-3600: connection of the supply voltage cables for three ICR890 systems
