12.4 Restart Lock Procedure
The following diagram shows the restart lock procedure by means of a time axis, includ-
ing the required steps that must be performed in order to be able to restart the device
after an activated restart lock.

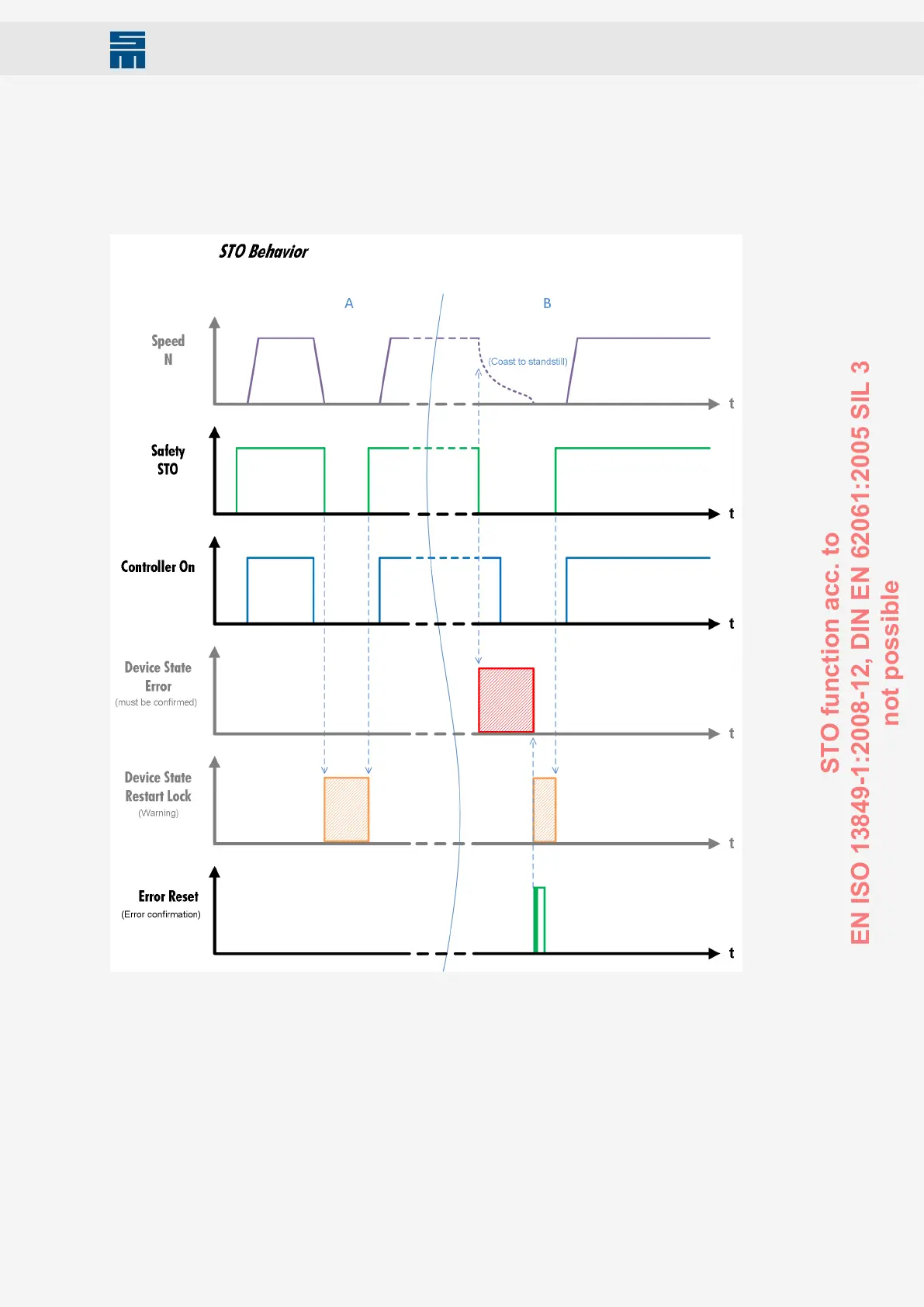

Fig. 59: Behavior STO / restart lock - timing and required actions
Fig. 59: Behavior STO / restart lock - timing and required actions
Use case A If an STO contact is interrupted during “Switch off”, the device status “Switch on dis-
abled” is triggered. As soon as the STO contact is closed again, the drive can restart
with the next “Switch on”.
Use case B If an STO contact is interrupted during “Switch on”, the device status “Error” is trig-
gered. The error must be confirmed via an error reset to continue operation.
