5.7 Mounting

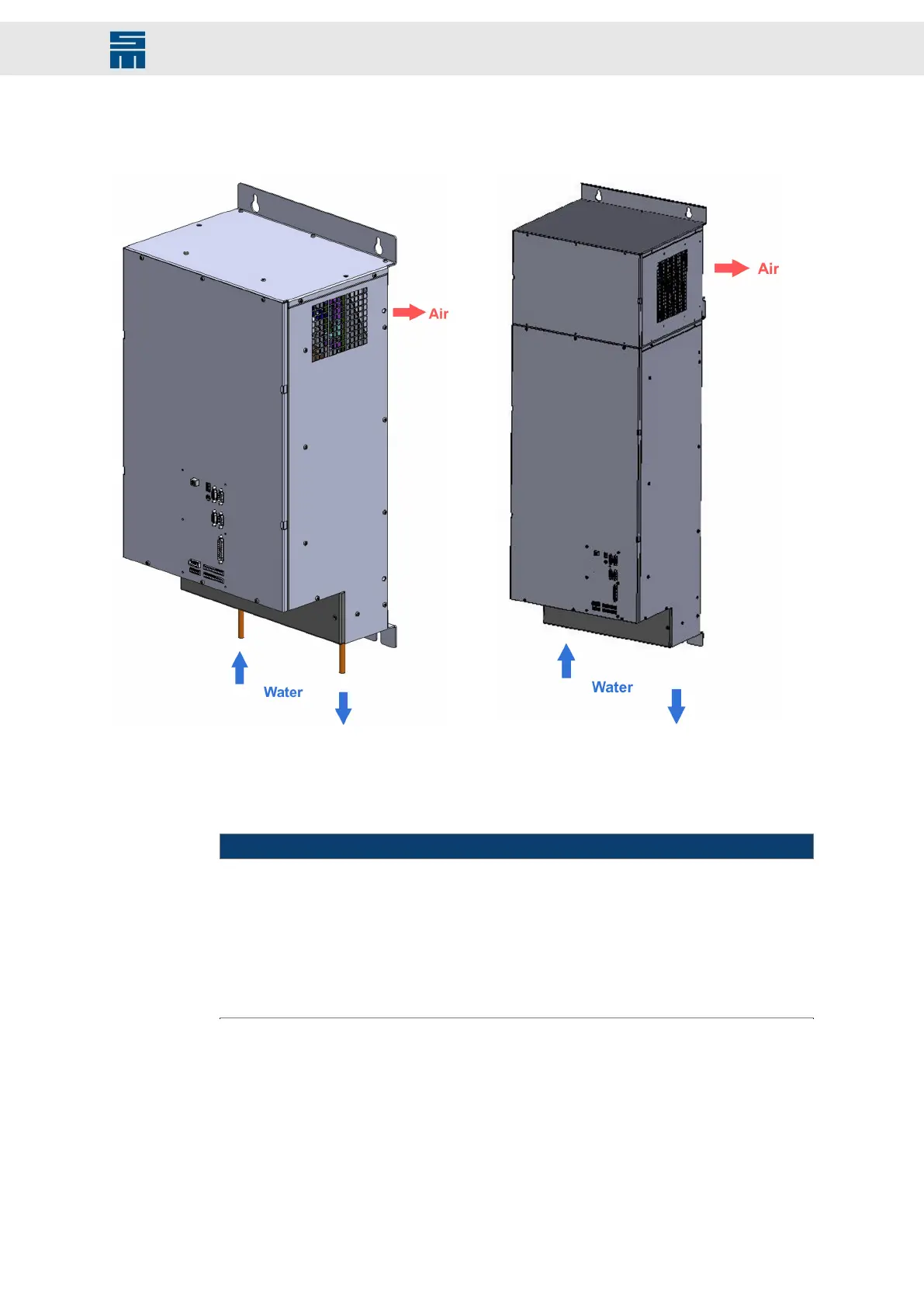

Fig. 8: Device view 0362280AF
Fig. 8: Device view 0362280AF
Fig. 9: Device view 0362281BF with DC link extension 036225000 mounted
Fig. 9: Device view 0362281BF with DC link extension
036225000 mounted
The device is designed for vertical rear panel mounting. Other setup positions are pos-
sible but you must consult SIEB & MEYER before.
NOTICE
Insufficient cooling
→ When mounting the device, consider the following notes to prevent damage from
overheating::
→ Connect the water cooling system to the device as follows: inflow of cooling water
on the high power side, outflow on the mains side [[arrows].
→ The air flow through the internally installed fans must not be obstructed [arrow].
The ventilation inlets and outlets must be kept free by a space of at least 10 cm.
5.7.1 0362281BF mit 036225000
This section describes how to fix the DC link extension 036225000 on the drive system
SD2M (0362281BF) and its electrical connection.
31Drive System SD2M - Hardware Description 036228xxF
Drive Amplifier SD2M
