Connection Examples
8.7.11 PULSE IN 5 V
NOTICE
Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.

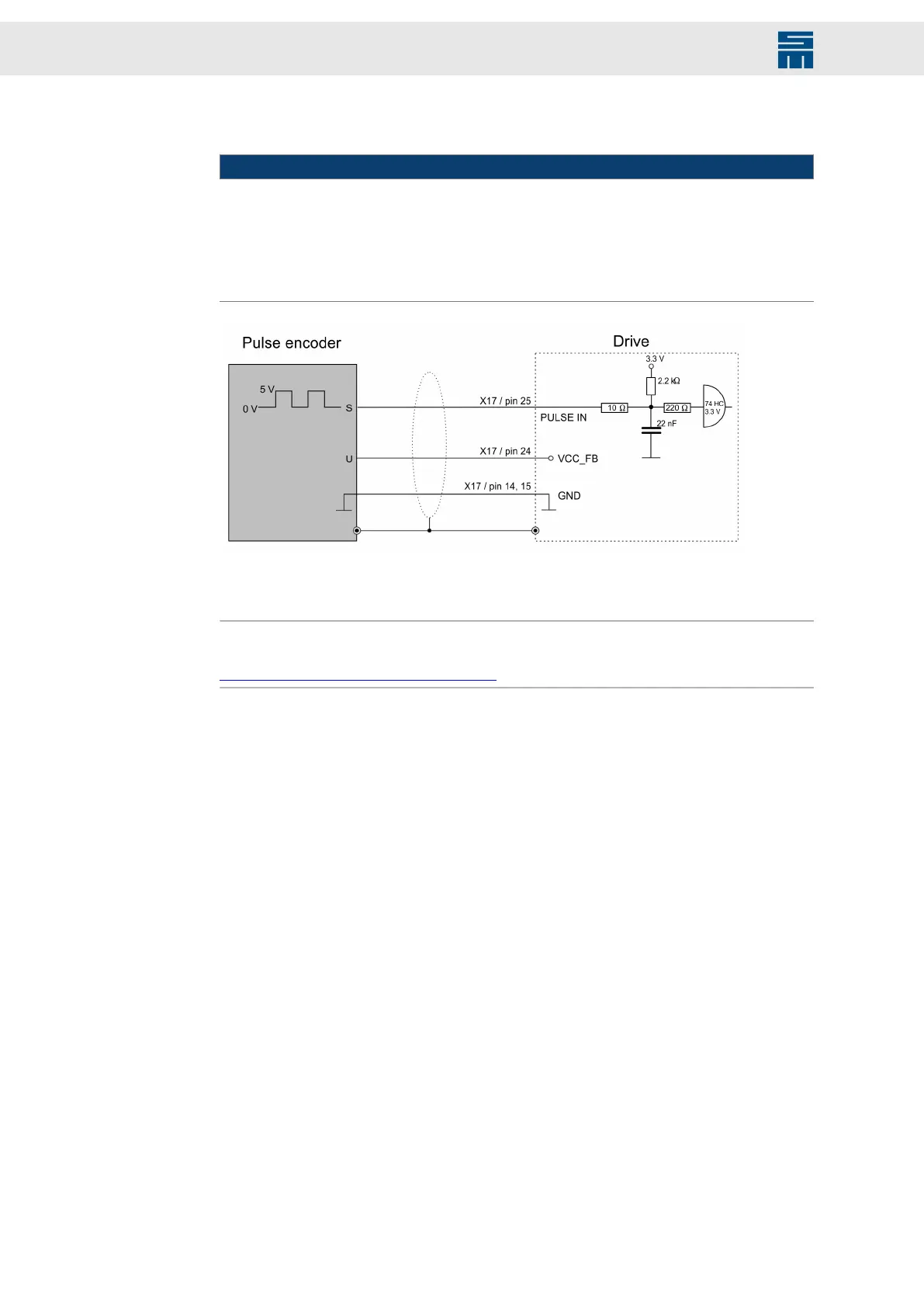

Fig. 41: PULSE IN 5 V
Fig. 41: PULSE IN 5 V
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
Note
A pulse generator for 24 V is to be connected to X15 (pin 6), see connection example
chapter 8.5.3 “PULSE IN 24 V”, page 65.
78 Drive System SD2M - Hardware Description 036228xxF
