SIEB & MEYER SD2M User Manual

8.4 X10 – Safety Circuit (STO)
Note
See also chapter 12 “Safety Circuit / Restart Lock (STO)”, page 100.
8.4.1 Wiring with OSSD
OSSD = output signal switching device

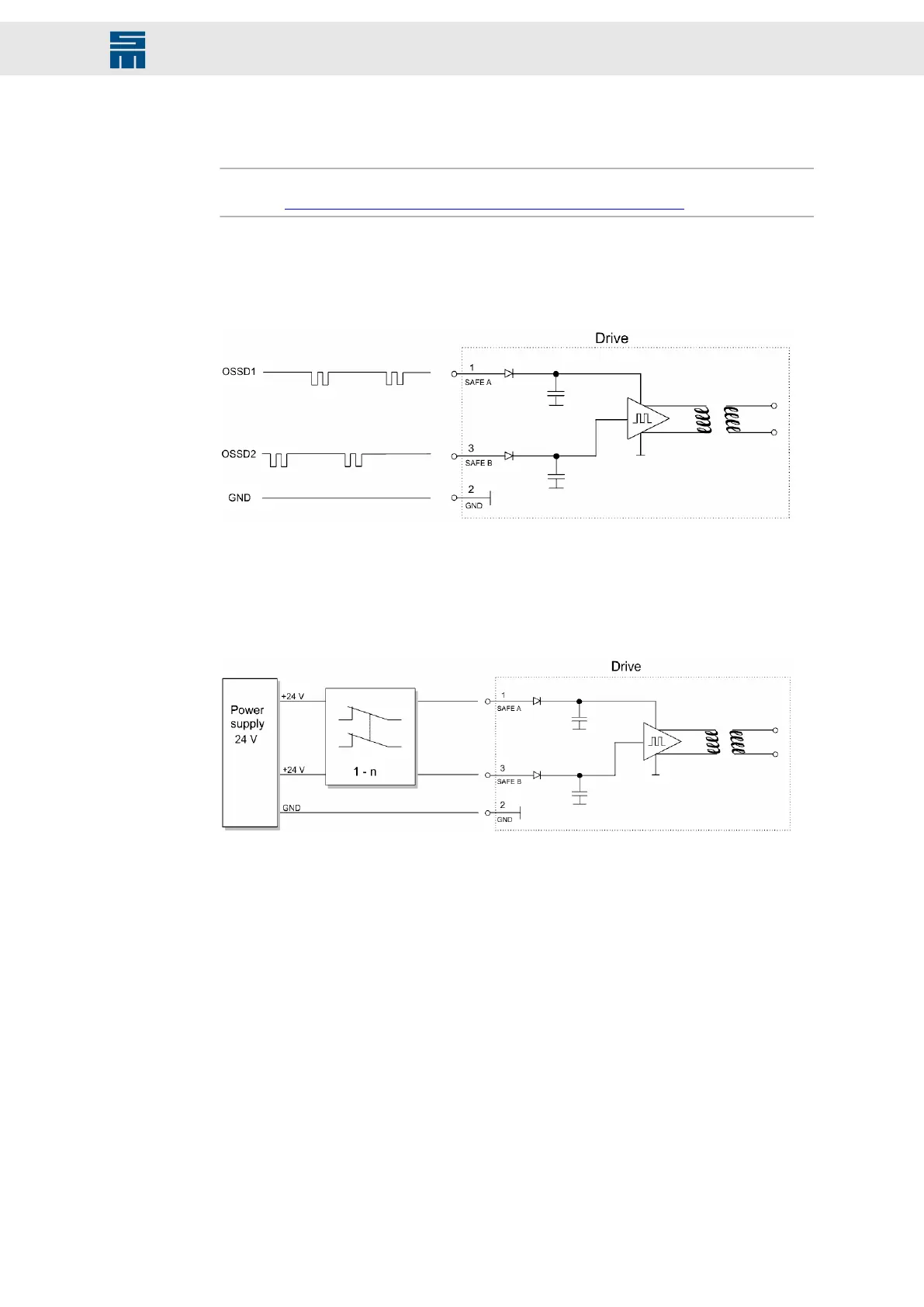

Fig. 22: Safety circuit (STO) - wiring with OSSD
Fig. 22: Safety circuit (STO) - wiring with OSSD
8.4.2 Wiring without OSSD
OSSD = output signal switching device
Fig. 23: Safety circuit (STO) - wiring without OSSD
Fig. 23: Safety circuit (STO) - wiring without OSSD
63Drive System SD2M - Hardware Description 036228xxF
Connection Examples
