SIEB & MEYER SD2M User Manual

8.7.2 Incremental Encoder with Sine Signals (1 V
pp
)
NOTICE
Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.

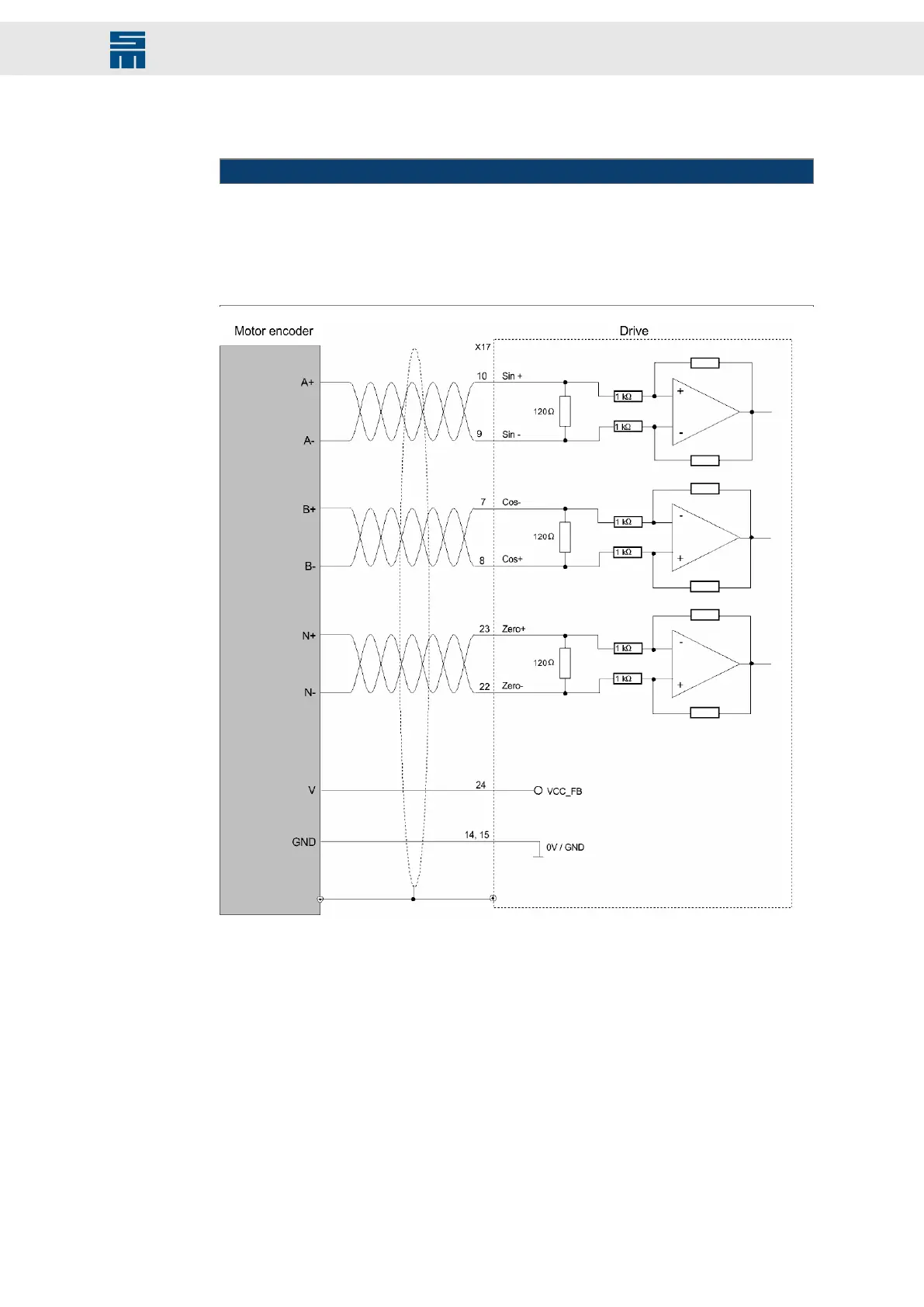

Fig. 32: Incremental Encoder with Sine Signals
Fig. 32: Incremental Encoder with Sine Signals
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
69Drive System SD2M - Hardware Description 036228xxF
Connection Examples
