Drive Amplifier SD2M
5.4 Type Plate

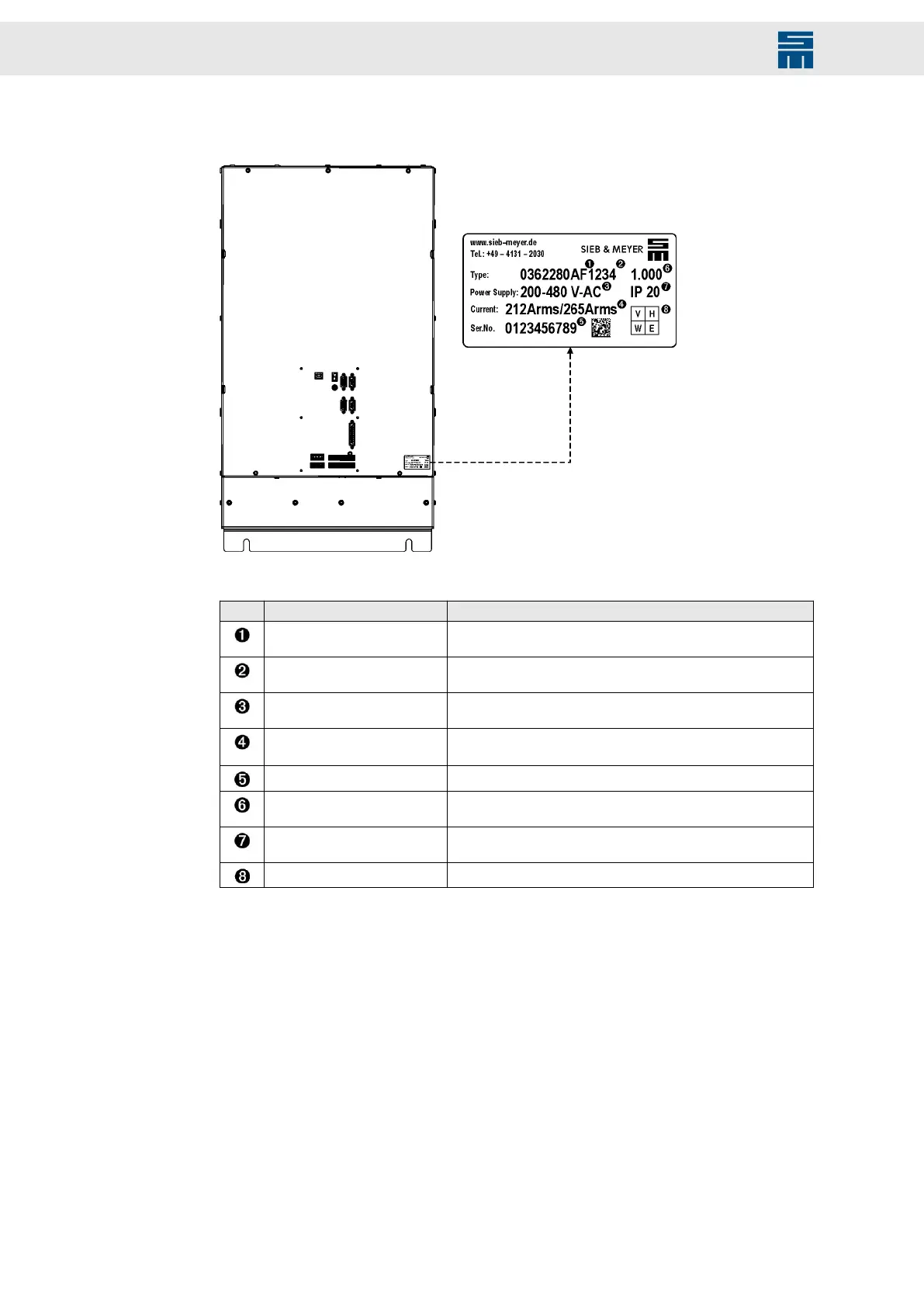

Fig. 3: Example of type plate SD2M (device variant 0362280AF)
Fig. 3: Example of type plate SD2M (device variant 0362280AF)
No. Description Explanation
Device name Composed of module type with indication of performance range
and max. DC link voltage
Extension for customized de-
vices
Indicates a 4 digit numeral code for customized devices; there is
no code for standard devices
Supply voltage Indicates the maximum voltage range (if this row is left blank, an
external power supply unit is necessary)
Rated current/peak current Applies to the output stage; the value is indicated in A
rms
(effec-
tive value)
Serial number Indicates the individual number of the device
Device version Indicates the version of the hardware; if no version is existent,
0.000 is indicated here
IP Code Indicates the level of protection of the device against touching or
intrusion of solid objects (1st digit) and water ingress (2nd digit)
QA label
24 Drive System SD2M - Hardware Description 036228xxF
