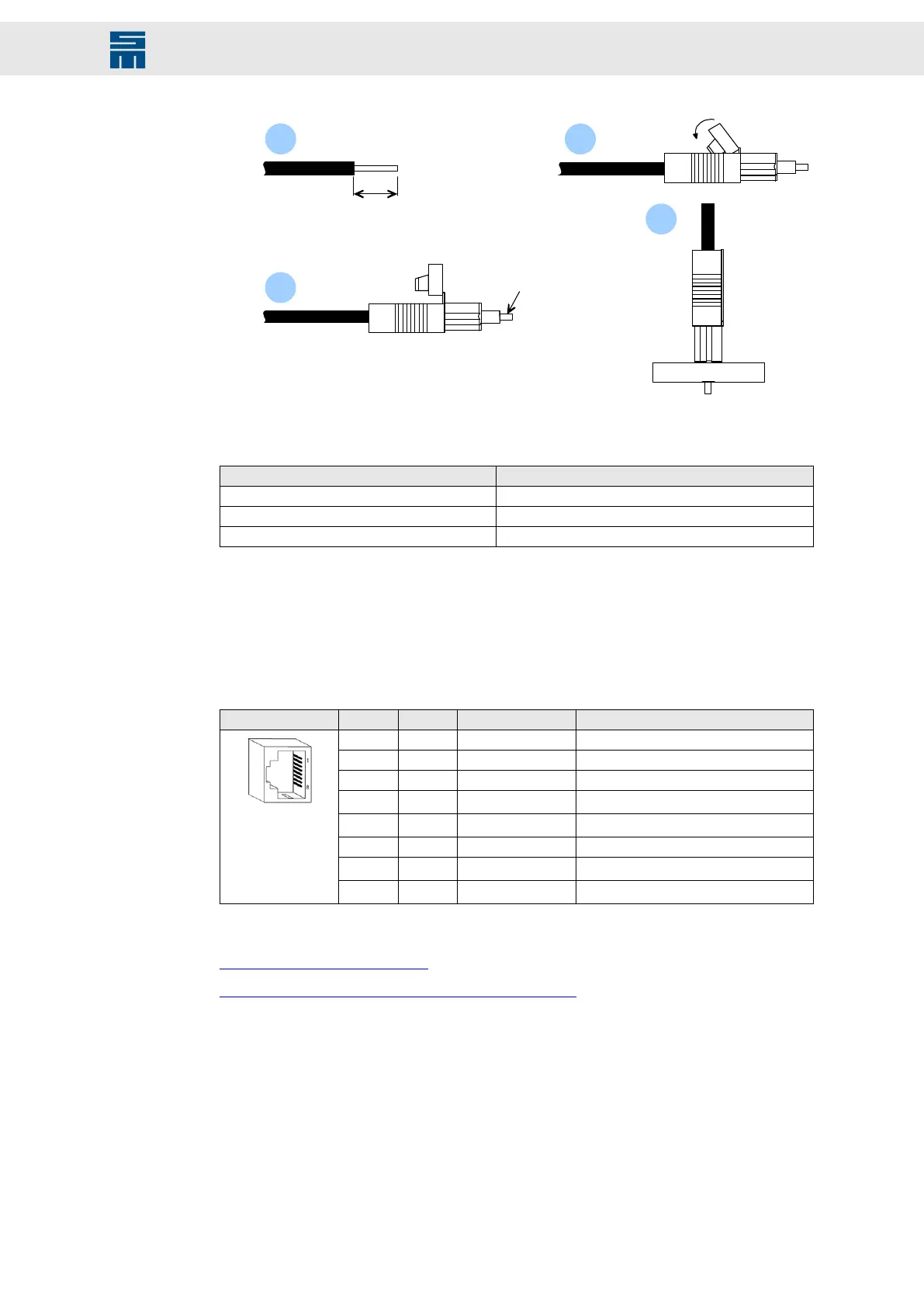

You can order the following materials at SIEB & MEYER:
Article SIEB & MEYER article number
Polishing disk for optical fiber cables 47000001
Dismantling tool for optical fiber cables 47000002
Grinding paper 47000003
7.13 X64/X65 – EtherCAT
EtherCAT slave interfaces X64 (output) and X65 (input) for connection to a higher-rank-
ing control
2 × 8-pole female RJ45 connector
X64/X65 Pin I/O Name Description
1 O TX+ Transmit data +
2 O TX− Transmit data −
3 I RX+ Receive data +
4
n.c.
5
n.c.
6 I RX− Receive data −
7
n.c.
8 n.c.
Related topics
X64/X65 – EtherCAT, page 83
LED Status Display: EtherCAT Connection, page 86
7.14 Power Connectors
The power connectors for motor, ballast resistor and mains supply are located in the bot-
tom part of the device below a removable cover.
57Drive System SD2M - Hardware Description 036228xxF
Connector Pin Assignment
