8.6 X16/17 – Digital Inputs
Digital inputs at X16
The meanings of the digital inputs can be defined by parameters.

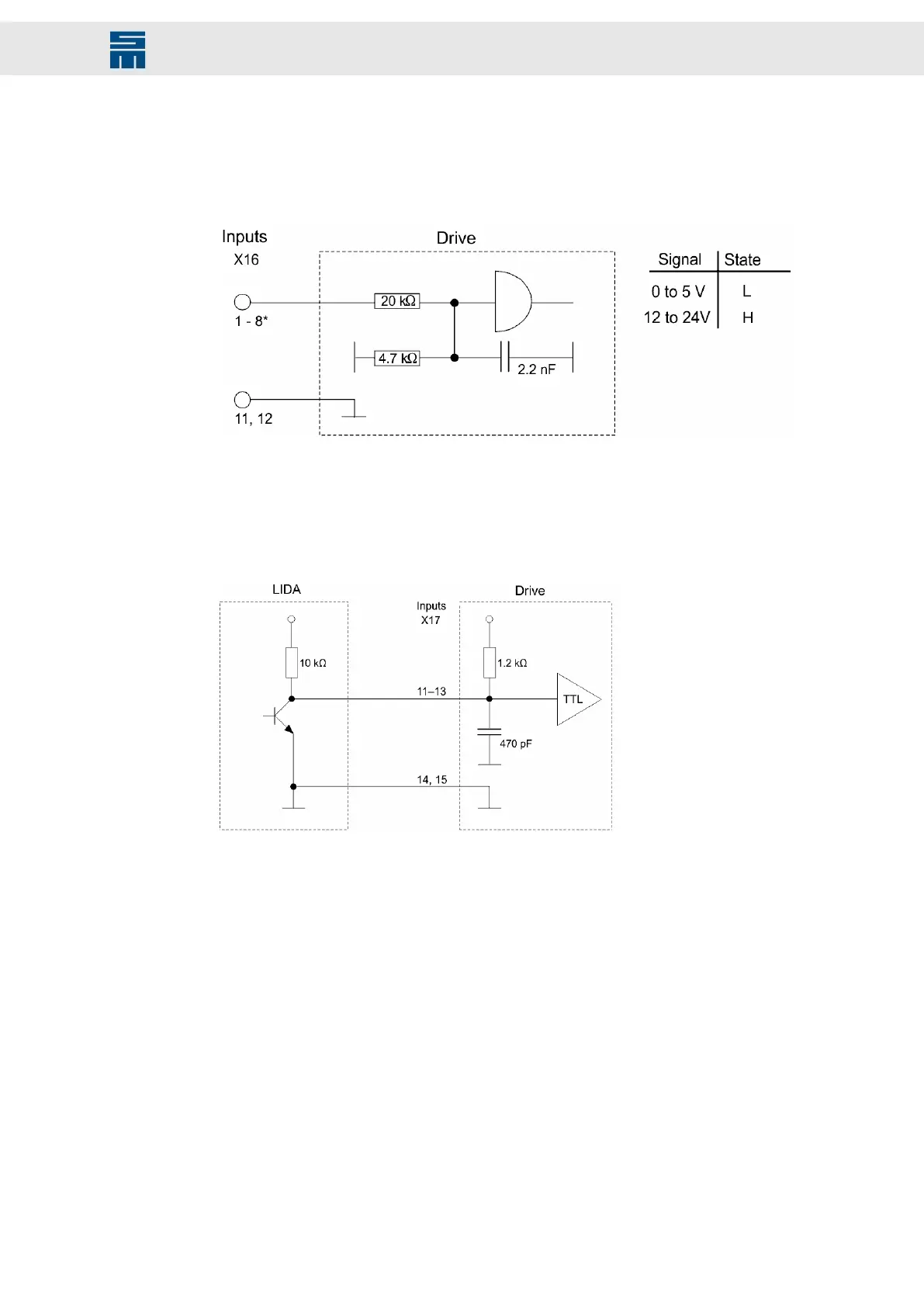

Fig. 29: Digital inputs at X16
Fig. 29: Digital inputs at X16
[*] Yet another digital input is located at the connector X15 (pin 6).
Digital inputs (5 V) at X17
The following figure is a wiring example for a 5 V limit switch:
Fig. 30: Digital inputs at X17
Fig. 30: Digital inputs at X17
67Drive System SD2M - Hardware Description 036228xxF
Connection Examples
