5.8.2.3 Device 0362282AF

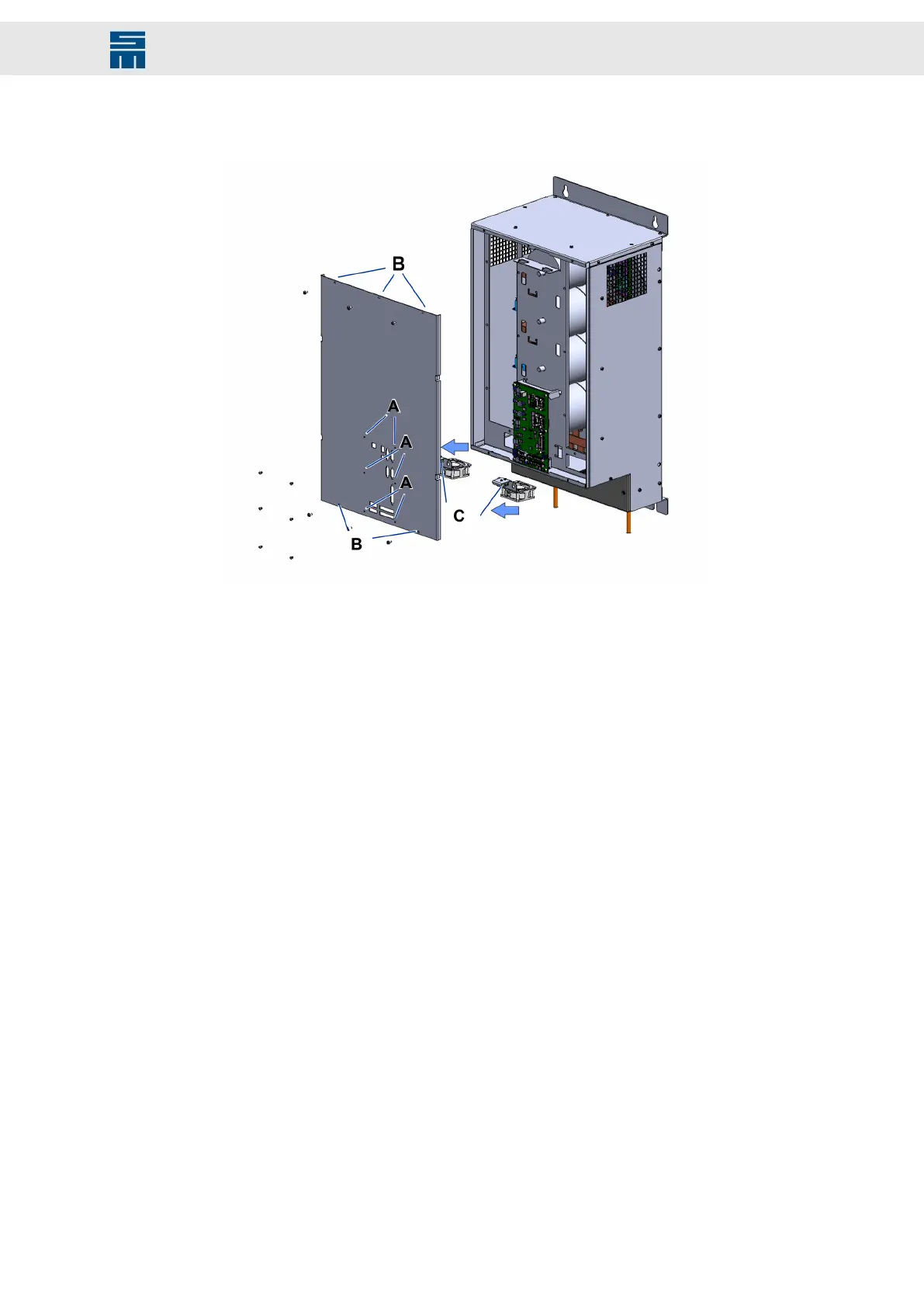

Fig. 11: Replacing the fans of 0362282AF
Fig. 11: Replacing the fans of 0362282AF
Replacing the fan
1. Remove the fastening screws [A] of the cover (Torx 10).
2. Then, remove the other fastening screws [B] of the cover (Torx 20) and remove the
cover carefully from the device to the front.
3. Unplug the connector from the female connector at the fan [C].
4. Unscrew the fastening screws at the fan plate.
5. Pull the fan at the metal flap to the front to remove it out of the device [C].
6. Insert the new fan in reverse order.
7. Repeat the procedure for the second fan.
37Drive System SD2M - Hardware Description 036228xxF
Drive Amplifier SD2M
