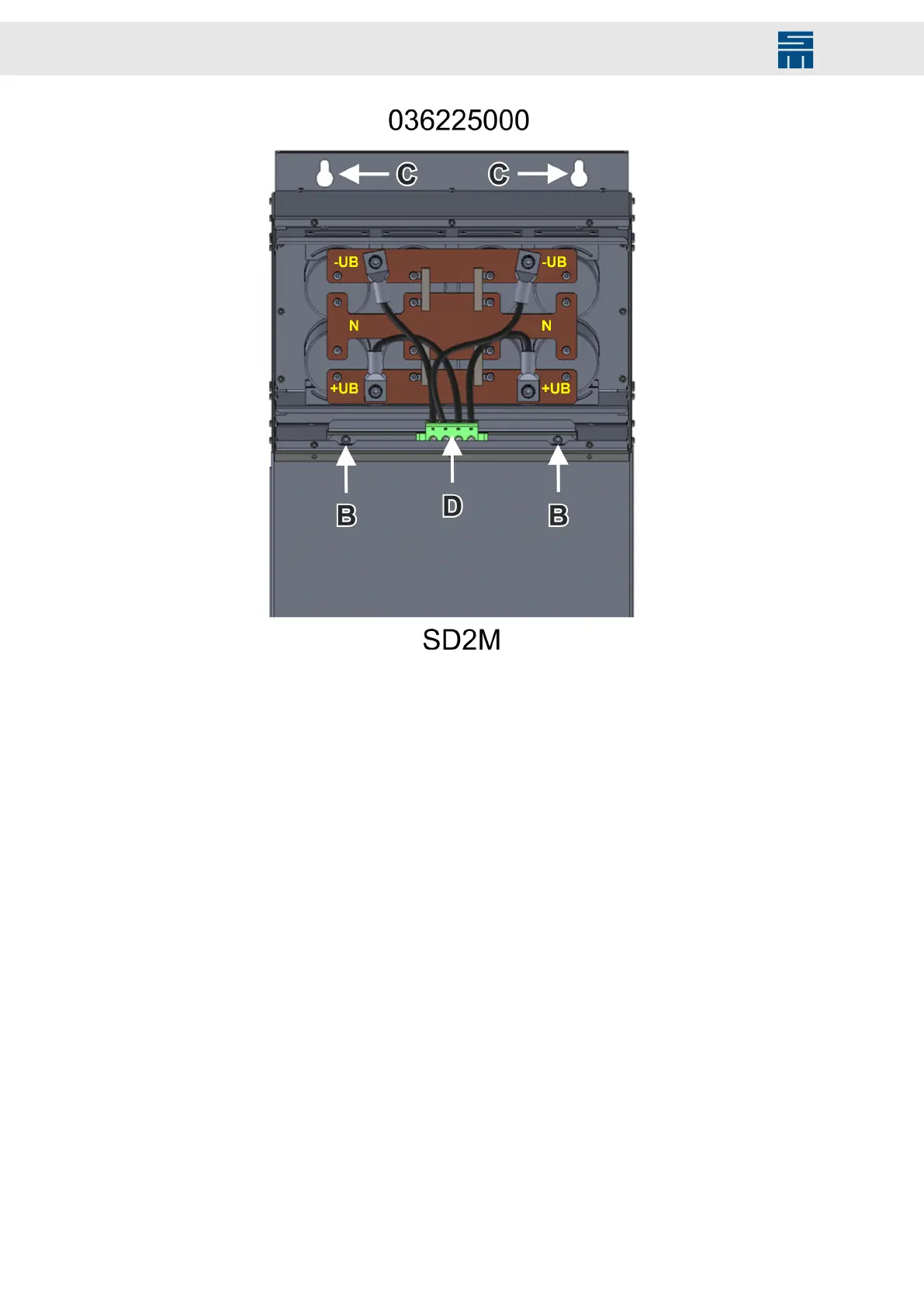

Drive Amplifier SD2M
3.
Disconnect the connector (
D
) for the DC link phases from the device.
4.
Also
unscrew
the
keyhole
fixings (
C
)
of
the
DC
link
extension 036225000
at
the
top
of the housing.
5.
Put
the
new
DC
link
extension
036225000
on
SD2M
and
carry
out
the
steps
de-
scribed above in reverse order
.
36
Drive System SD2M - Hardware Description 036228xxF
35
37
Table of Contents
