Connection Examples
8.12 Motor Phases

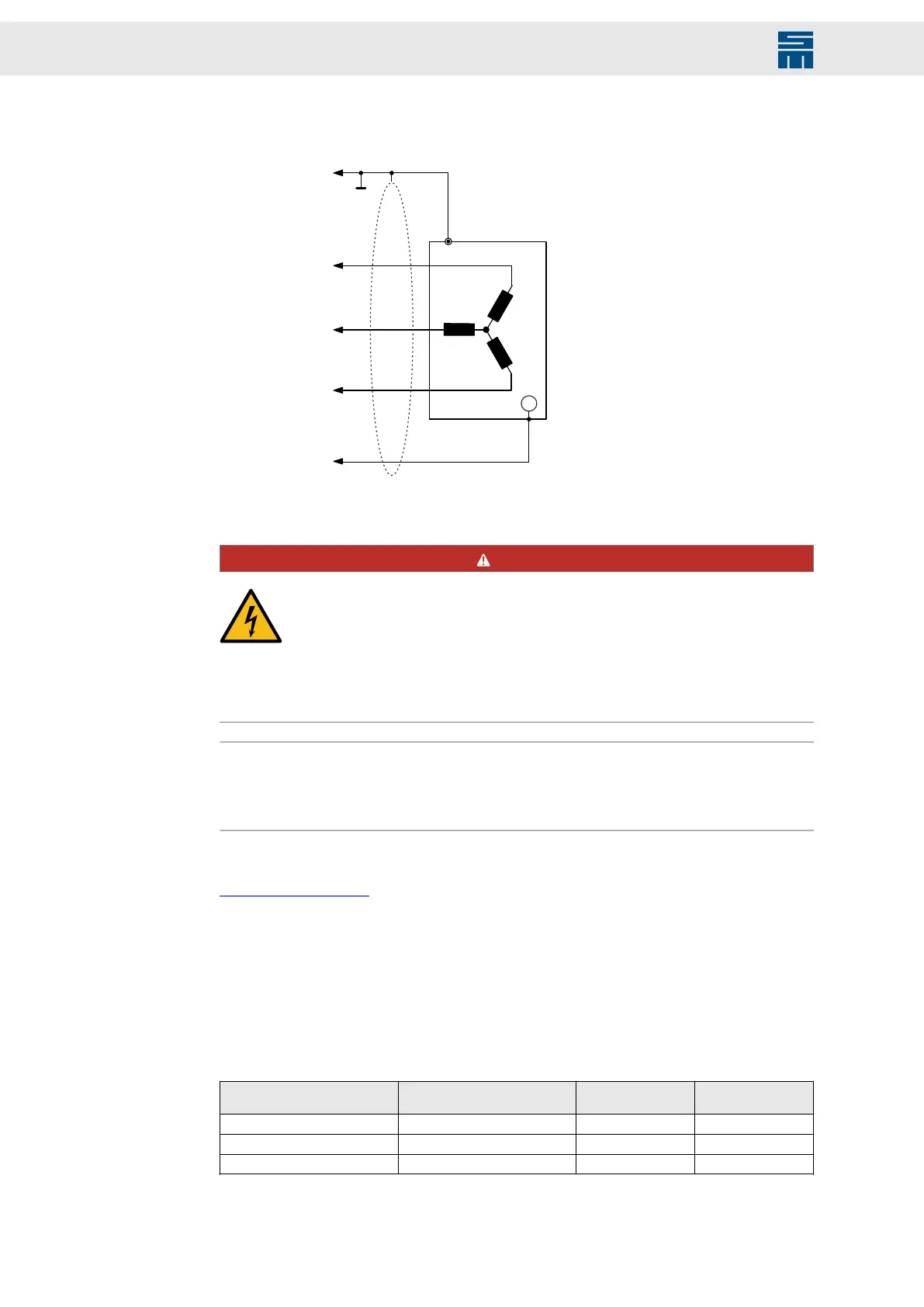

Fig. 51: Connection of the motor phases
AC
motor
�
Mesh wire shield
Motor phase U
Motor phase W
Motor phase V
PE
Fig. 51: Connection of the motor phases
Ground the motor housing in the machine!
DANGER
Dangerous shock currents
connect the motor housing to the ground of the machine or
connect the ground terminal of the motor connector to the central ground
point of the machine.
→ Consider the following with regard to shielding: Always use shielded
motor cables.
Note
Voice coil motors are generally connected via the motor phases U and W. The current
parameters of voice coil motors can only be indicated as sine peak amplitudes (A
p
), not
as RMS values (A
rms
).
Related topics
Motor Cable, page 96
8.13 Shielding at Device Housing
The device provides the opportunity to connect cable shields directly at the device. For
this purpose shield connection clamps by Phoenix are used.
The device is designed for usage with the following shield connection clamps by
Phoenix:
Shield connection clamp Connection method Max. tightening
torque
Phoenix article
number
SK 8 Screw connection (M4) 0.6 Nm 3025163
SK 14 Screw connection (M4) 0.8 Nm 3025176
SK 20 Screw connection (M4) 0.8 Nm 3025189
84 Drive System SD2M - Hardware Description 036228xxF
