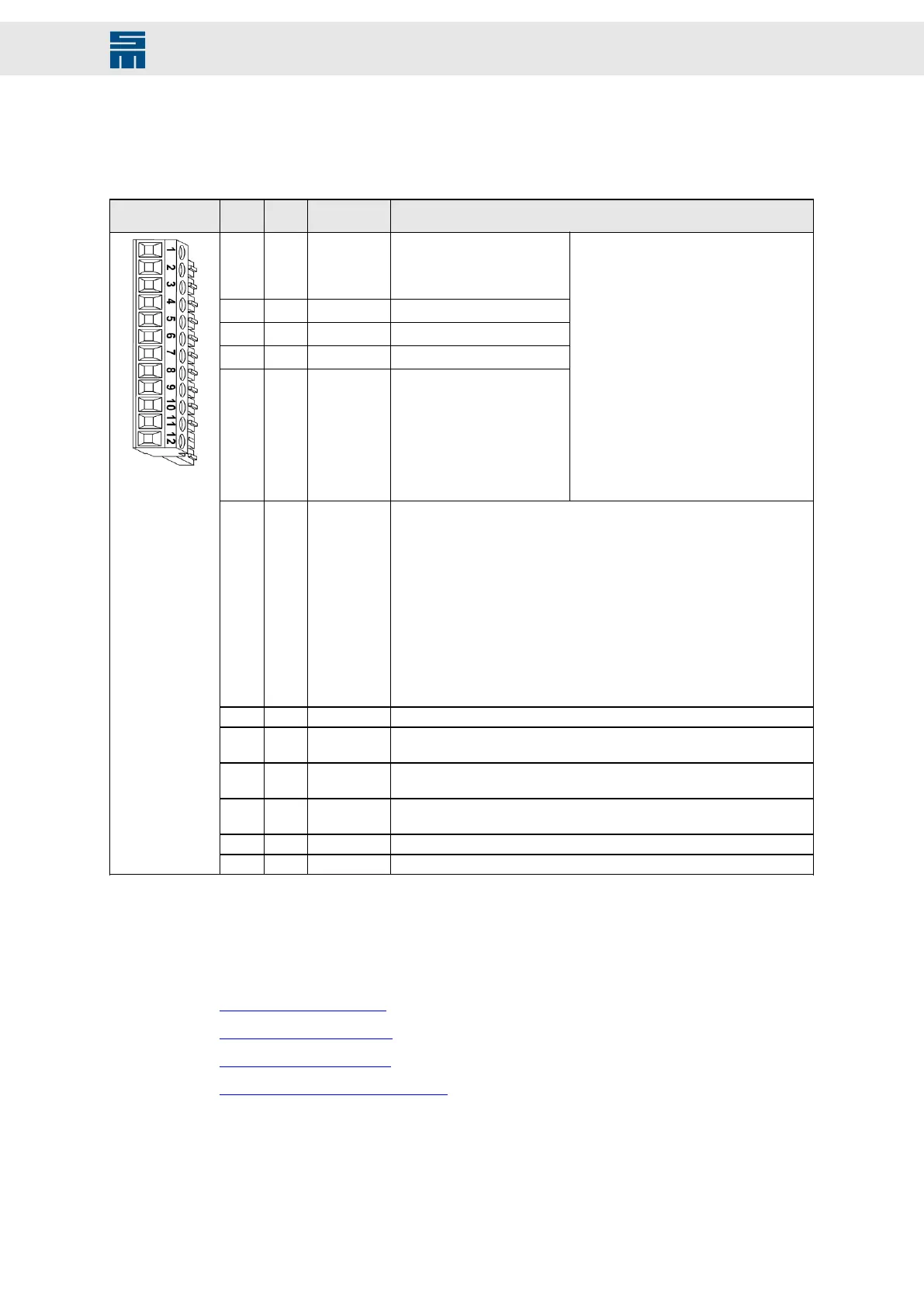

7.7.2 Digital Outputs – HSPAM / VF
12-pole Mini-Combicon connector, suitable for mating connector MC 1,5/ 12-ST-3,81
(Phoenix)
Mating con-
nector X15
Pin I/O Name Configurable functions
1 O OUT0 ▶ Ready type 1 (with power
supply okay)
▶ Ready type 2 (without pow-
er supply okay)
2 O OUT1
3 O OUT2
4 O OUT3
5 O OUT4
▶ No function
▶ M01 – Message power output stage
ready
▶ M02 – Message operation enabled
▶ M03 – Message drive error
▶ M10 – Ref. value reached
▶ M11 – Current limit reached
▶ M12 – Speed zero
▶ W04 – Power output stage load
▶ W05 – Motor load
▶ W07 – Motor temperature
▶ W09 – Undervoltage power output
stage
▶ W12 – Speed error
▶ W24 – Warning threshold ’current'
▶ W26 – Warning threshold ’overload
current'
6 I IN8 /
PULSE IN
▶ No function
▶ Error reset
▶ External hardware OK
▶ Speed direction
▶ Teach no-load current
▶ Parameter set Bit 5
▶ MOP up
▶ MOP down
▶ NAMUR sensor; displayed, when motor feedback = NAMUR sensor
▶ Pulse generator 24 V; displayed, when motor feedback = Pulse genera-
tor 24 V
▶ Digital field plate / GMR; displayed, when motor feedback = Digital field
plate / GMR
7 O PULSE OUT Speed pulses
8 I VCC EXT 24 V logic supply in the event of an AC power failure (0.5 A)
Do not connect: 24 V is supplied via connector X1.
9 I VCC IO 24 V supply for the outputs
Do not connect: 24 V is supplied via connector X1.
10 O VCC OUT 24 V auxiliary voltage for the outputs (24 V ±10 %, uncontrolled, max.
0.25 A)
11 I/O GND Ground (pin coded)
12 I/O GND Ground
Specification of terminal connections
▶ Conductor cross-section solid/stranded: 0.14 to 1.5 mm²
▶ Tightening torque: 0.22 to 0.25 Nm
Related topics
Digital Outputs, page 64
NAMUR sensor, page 64
PULSE IN 24 V, page 65
Digital field plate / GMR, page 65
49Drive System SD2M - Hardware Description 036228xxF
