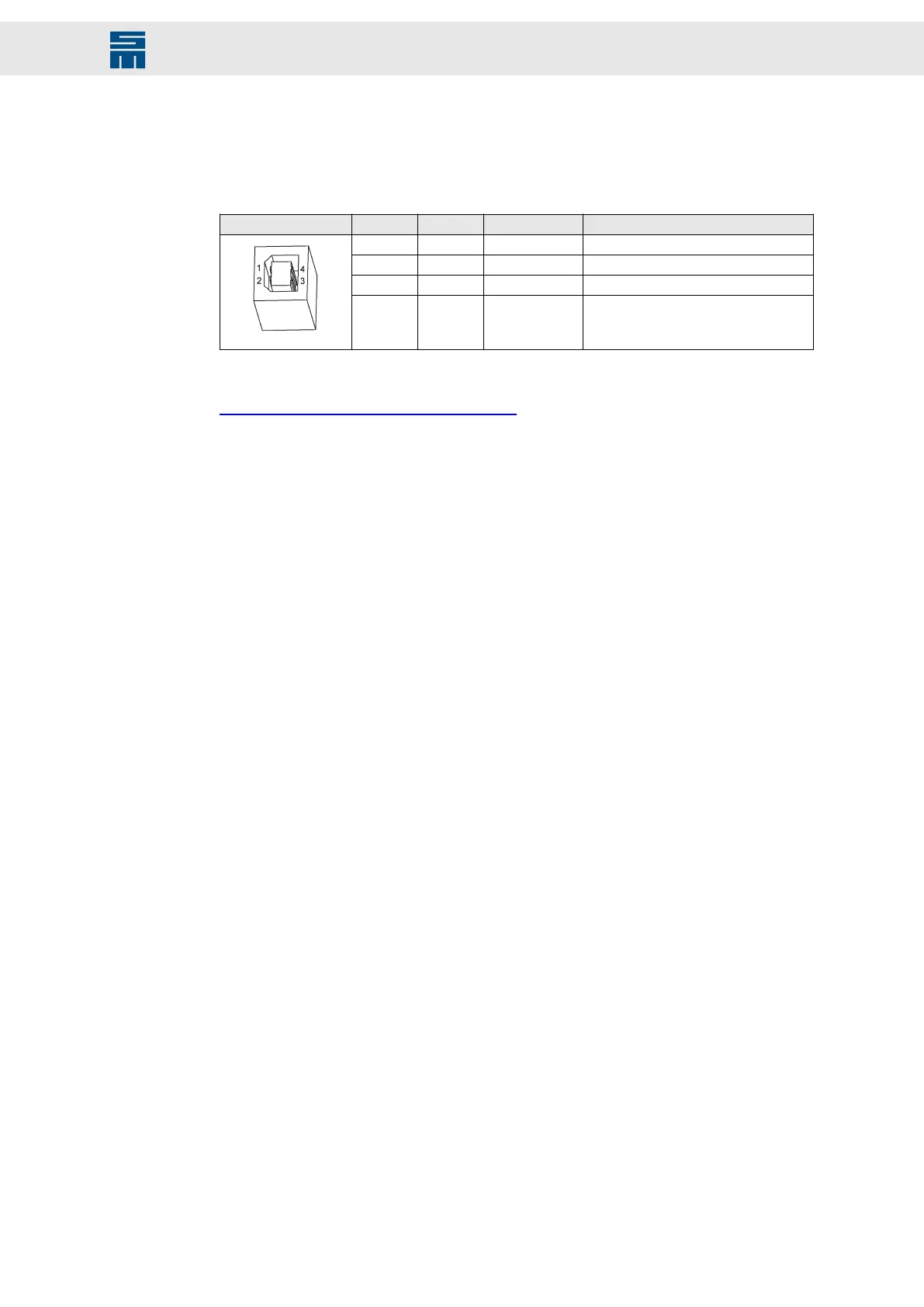

7.6 X14 – USB (Parameterization)
Communication interface to the connected PC
4-pole female USB connector, type B
X14 Pin I/O Name Description
1 - VCC 5 V voltage supply for USB
2 I/O DM Data−
3 I/O DP Data+
4 I/O GND Ground
Related topics
chapter C “Connection Diagram”, page 111
7.7 X15 – Digital Outputs
The available functions of the digital outputs are different depending on the drive func-
tion. You can set the desired function in the software drivemaster2.
47Drive System SD2M - Hardware Description 036228xxF
Connector Pin Assignment
