SIEB & MEYER SD2M - Analog Outputs; X18 - Analog Inputs;Outputs

Connection Examples
8.8 X18 – Analog Inputs/Outputs
8.8.1 Analog outputs

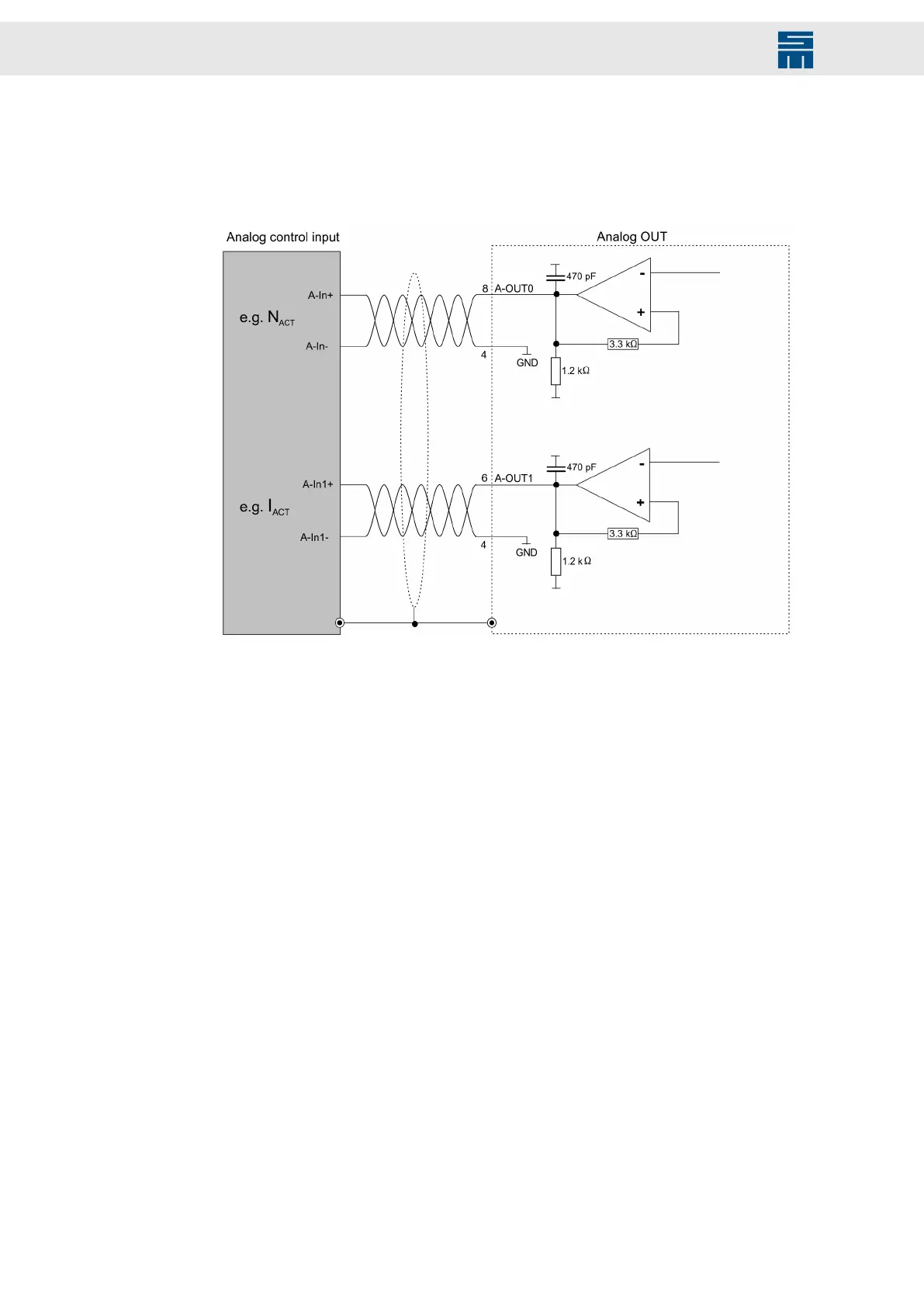

Fig. 43: Analog outputs
Fig. 43: Analog outputs
Configurable output voltage: 0 to +10 V, max. 1 mA
80 Drive System SD2M - Hardware Description 036228xxF
