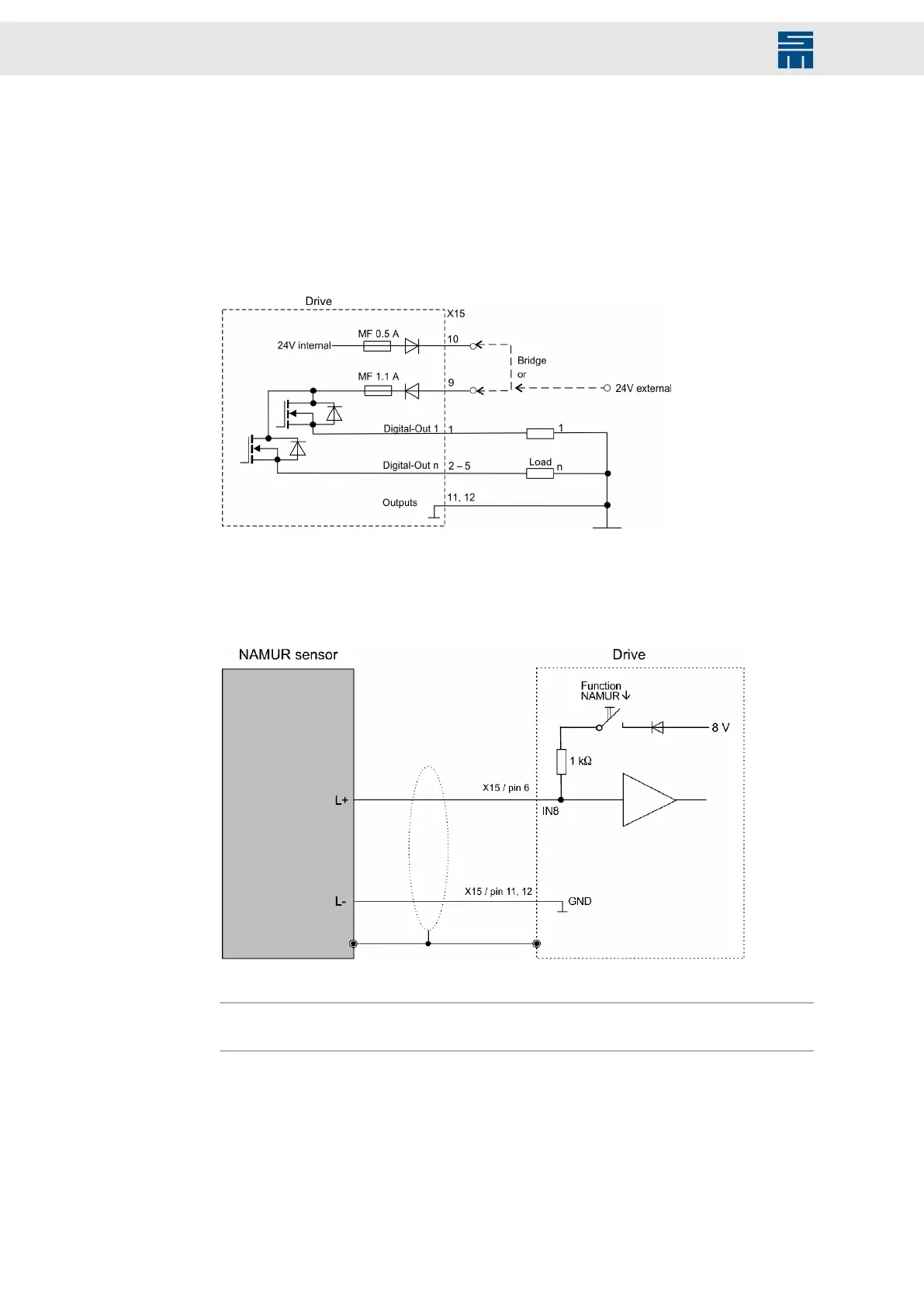

Connection Examples
8.5
X15 – Digital Outputs / NAMUR sensor /
PULSE IN / Digital field plate / GMR
8.5.1
Digital Outputs
The meanings of the digital outputs can be defined by parameters. Every output can
be loaded with 100 mA.
Fig.
24:
Digital
Outputs
Fig. 24: Digital Outputs
8.5.2
NAMUR sensor
Fig.
25:
NAMUR
sensor
Fig. 25: NAMUR sensor
Note
As required by the NAMUR standard the switching threshold for the input is 2.5 mA.
64
Drive System SD2M - Hardware Description 036228xxF
63
65
