Connection Examples
8.7.5 Hiperface with Sine Signals
NOTICE
Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.

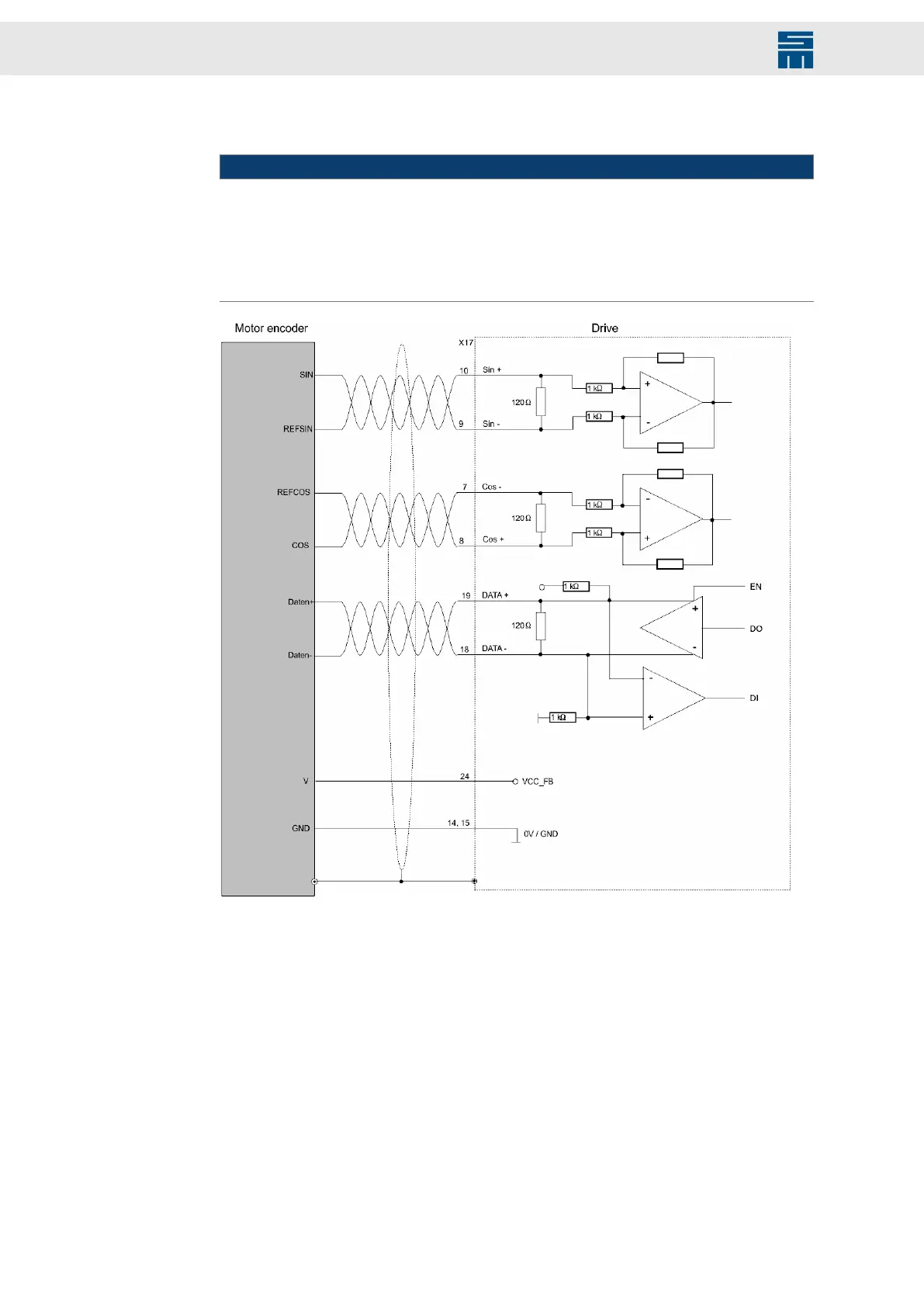

Fig. 35: Hiperface with Sine Signals
Fig. 35: Hiperface with Sine Signals
When this meysuring system is parameterized VCC_FB is switched to 12 V.
72 Drive System SD2M - Hardware Description 036228xxF
