Connection Examples
8.7.9 Incremental Encoder with TTL Signals (5.3 V)
NOTICE
Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can be
damaged.
→ Check that you have chosen the right measuring system in the software before
connecting.

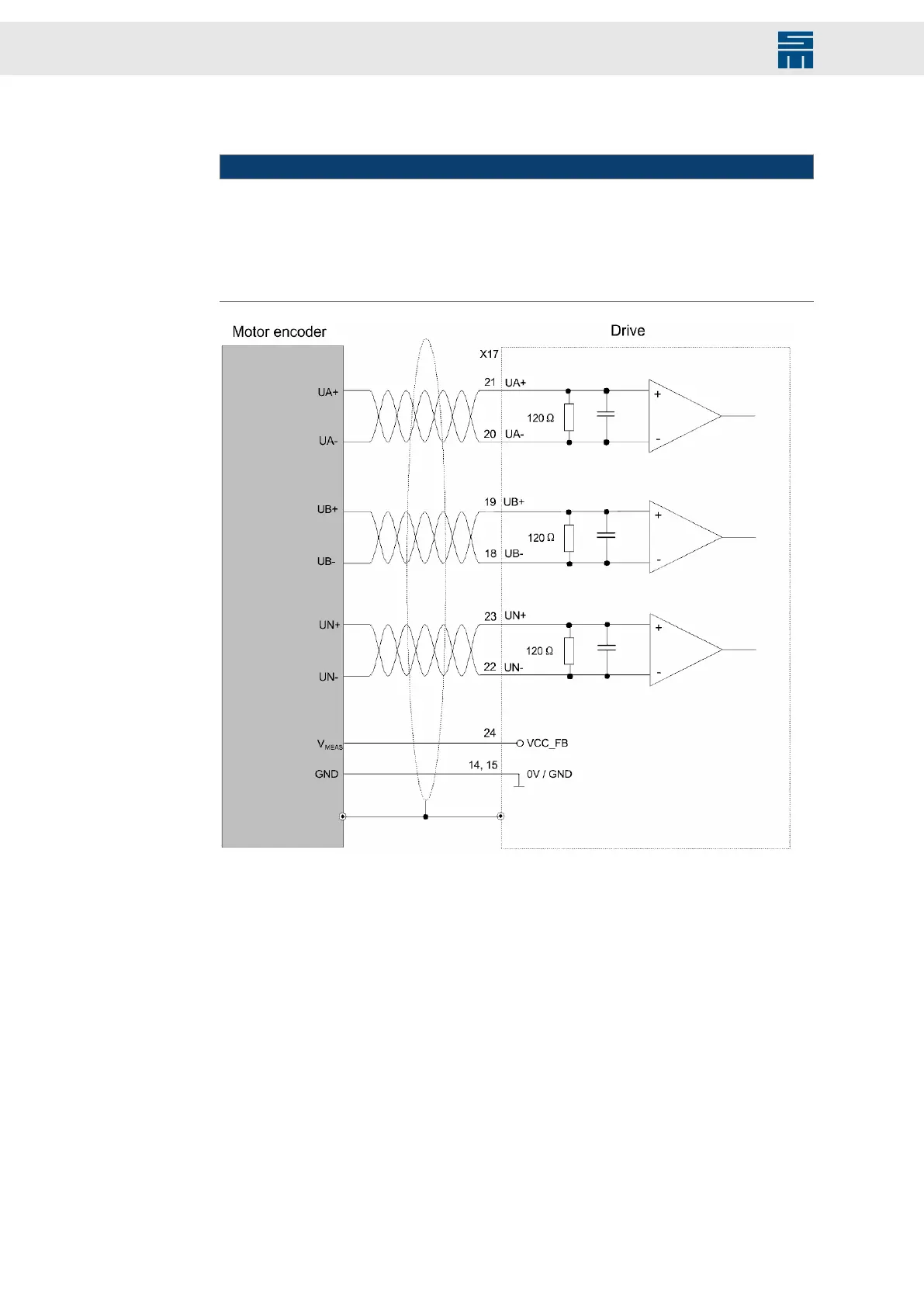

Fig. 39: Incremental Encoder with TTL Signals
Fig. 39: Incremental Encoder with TTL Signals
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
76 Drive System SD2M - Hardware Description 036228xxF
